12Typical Installation - Trolley

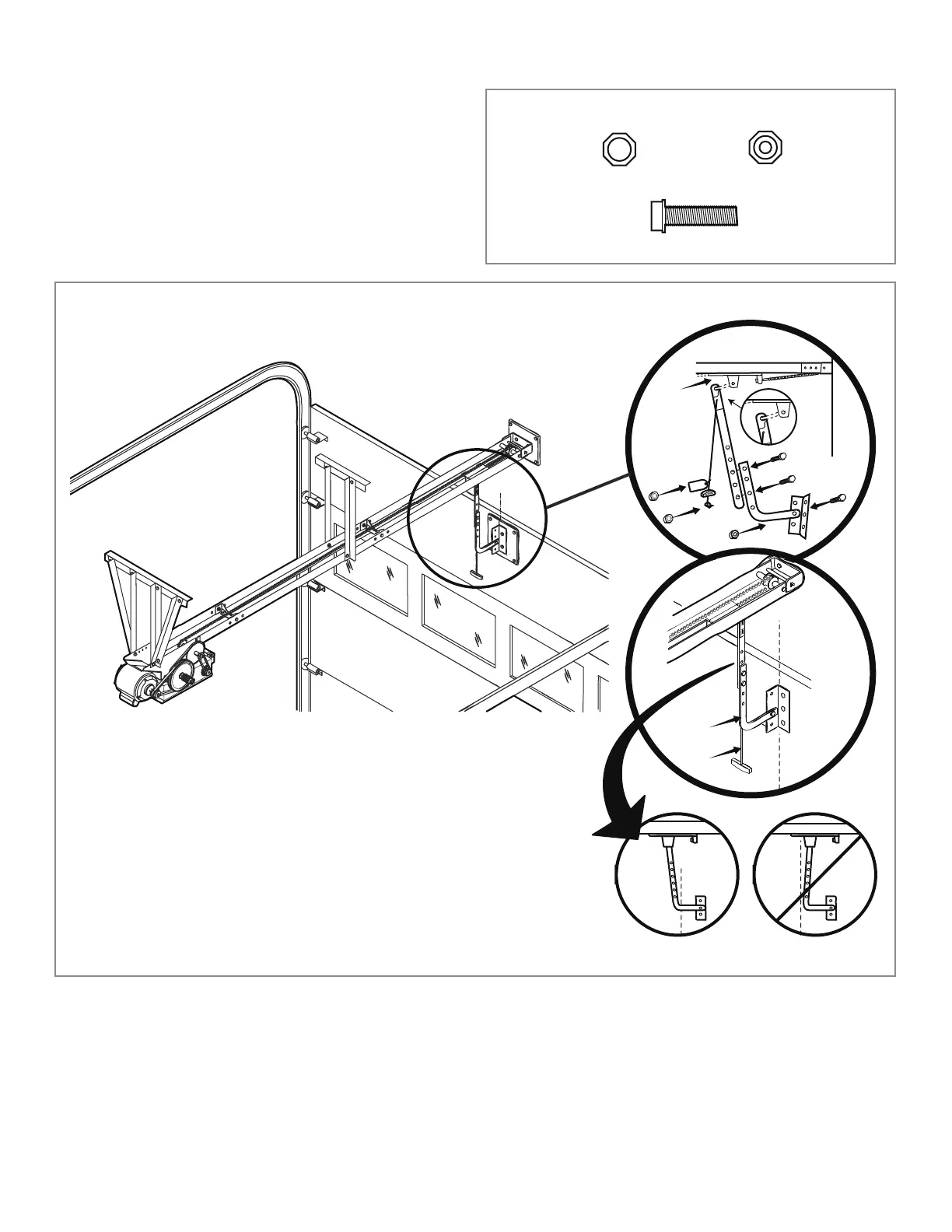

ATTACH THE DOOR ARM AND BRACKET
1
2
Latch the door arm to the trolley. Make sure the open side of
the notch on the door arm faces the door.
Position the door bracket to the center line of the door and
attach the door bracket to the door using appropriate hardware
(not included). NOTE: When properly installed and adjusted the
door arm should be leaning back toward the operator slightly.
Refer to door manufacturer’s instructions for recommended
installation guidelines.
1
2
HARDWARE
A
C
B
Nylok Nut 3/8"-16 (1)
Flanged Hex Nut 3/8"-16 (2)
A
B
Bolt 3/8"-16 x 1" (3)
C
