Supervisor Mode
SUPERVISOR MODE: continued
• "YES" in the upper right corner of the display means
the Optional Champion Chemical System is installed.

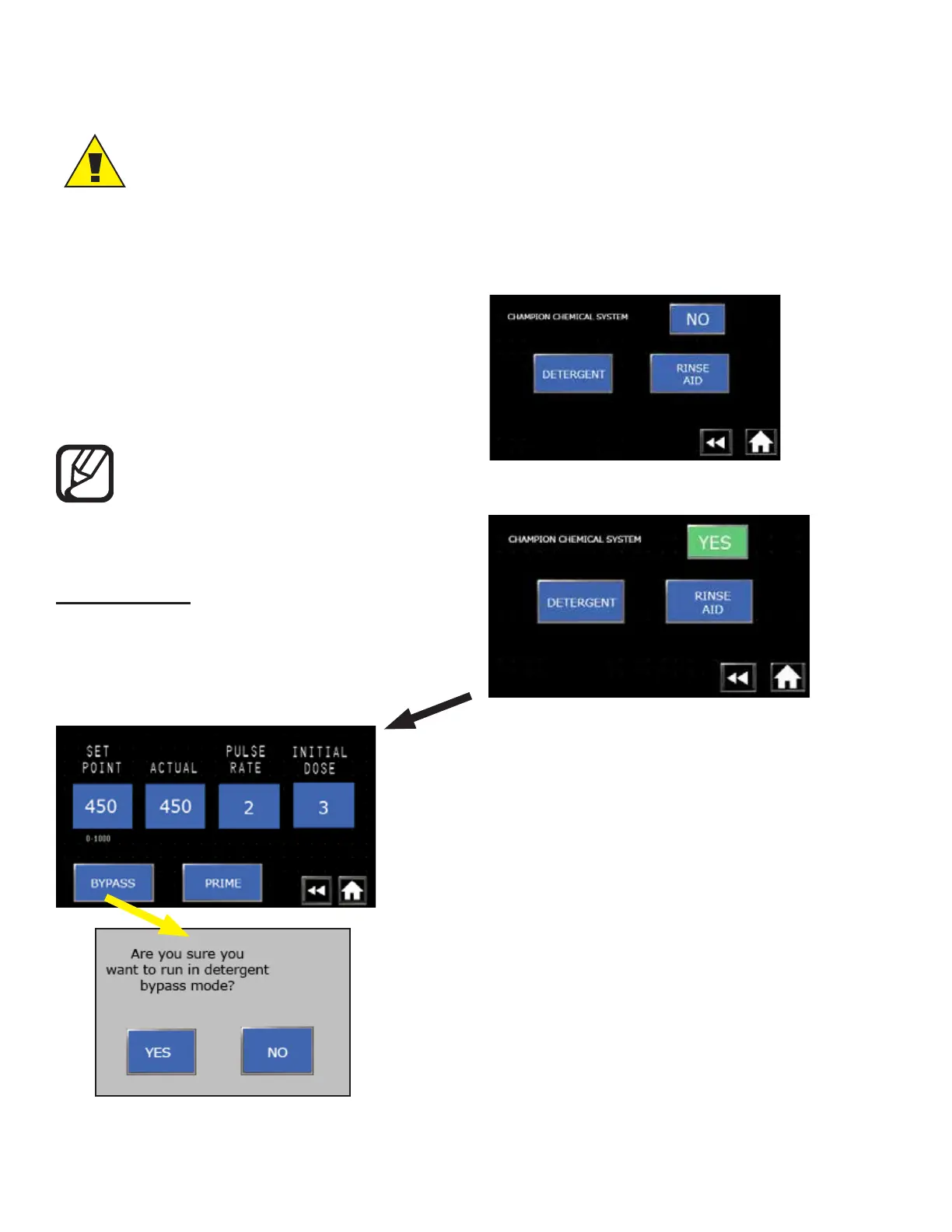

Fig. 42 -
"YES" optional factory chemical system installed
Fig. 43 - Detergent Settings
• Press DETERGENT button to display settings.
• 450 the concentration volts ~ PPM.
Pulse rate is how amount of detergent injected.
• Initial dose are the detergent pump run in seconds.
• BYPASS button disables the detergent system.
• Press the Bypass button and select yes or no.
• PRIME button manually runs the detergent pump.
DETERGENT
Chemical Settings:
• The Champion built-in chemical system is an option.
• The option is not installed if NO appears in the upper
right corner of the display and there are no settings
available.
Fig. 41 -
Optional factory chemical system not installed
CAUTION:
Chemical settings should only be changed by an authorized chemical supplier.
Settings are affected by variations in water, temperature and type of chemicals.
Wash water temperature must be 150ºF/65.5ºC and the machine must have run one
cycle before performing chemical testing.
NOTE:
Detergent pump output is 3ml/sec.
Wash tank capacity is 10 US Gal.
To Next Page
