Configuring through a web browser
47
SBAS, GLONASS, BDS and Galileo constellations. These menus include tabular and
graphical displays to provide all required information on satellite tracking status.

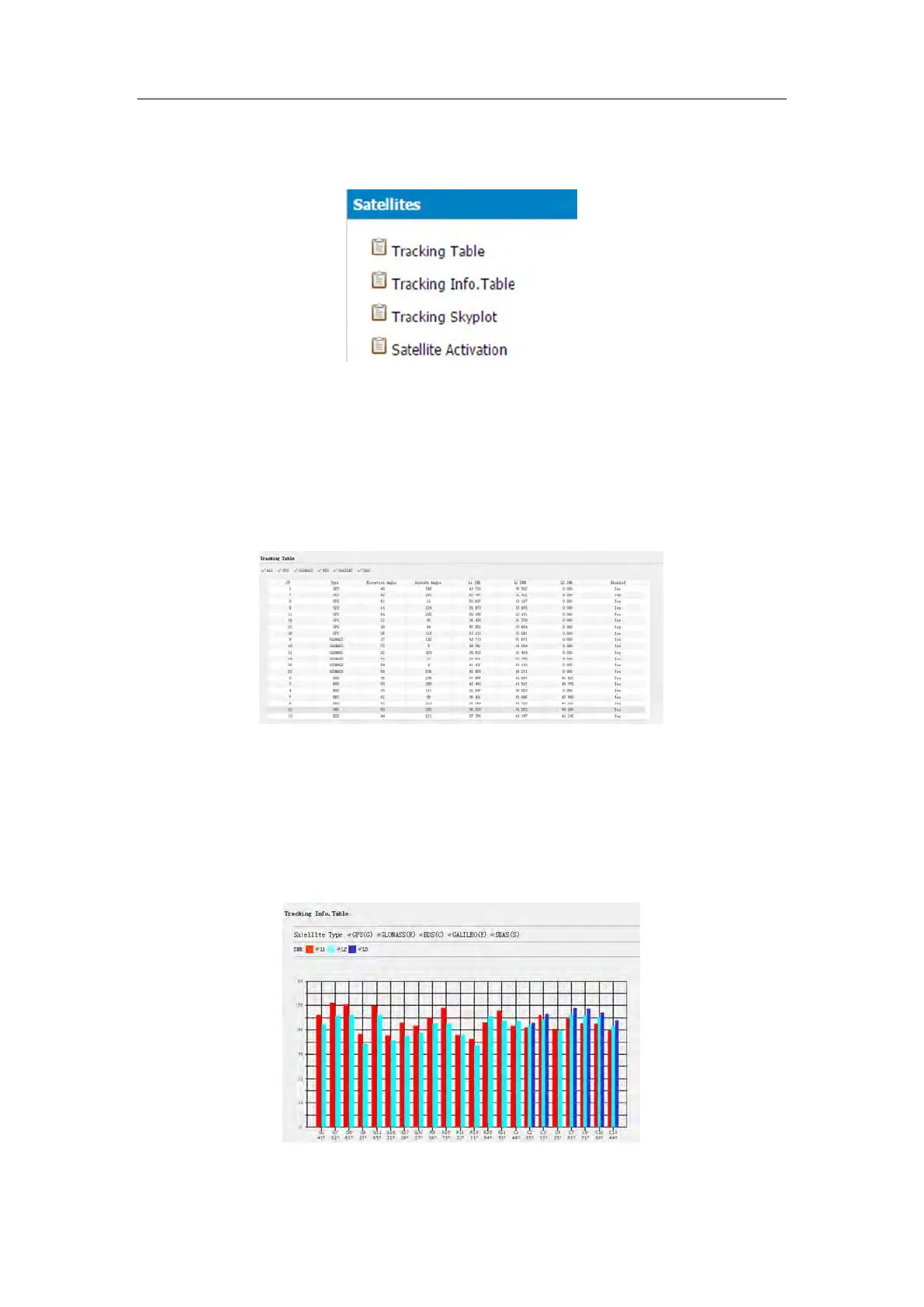

6.2.1 Tracking Table submenu
Provides the status of satellites tracked in general, such as the satellite ID, satellite
type, attitude angle, azimuth angle, L1 SNR, L2 SNR, L5 SNR and enable/disable
status of each one.
6.2.2 Tracking Info. Table submenu
The following figure is an example of satellite track diagram page. Users can
determine the satellite types and the corresponding SNR of L-band carriers to be
displayed in any combination.
