Equipment Setup and Operation
CHCNAV i93 GNSS USER GUIDE
|
2023-04
P
a
g
e
|
36

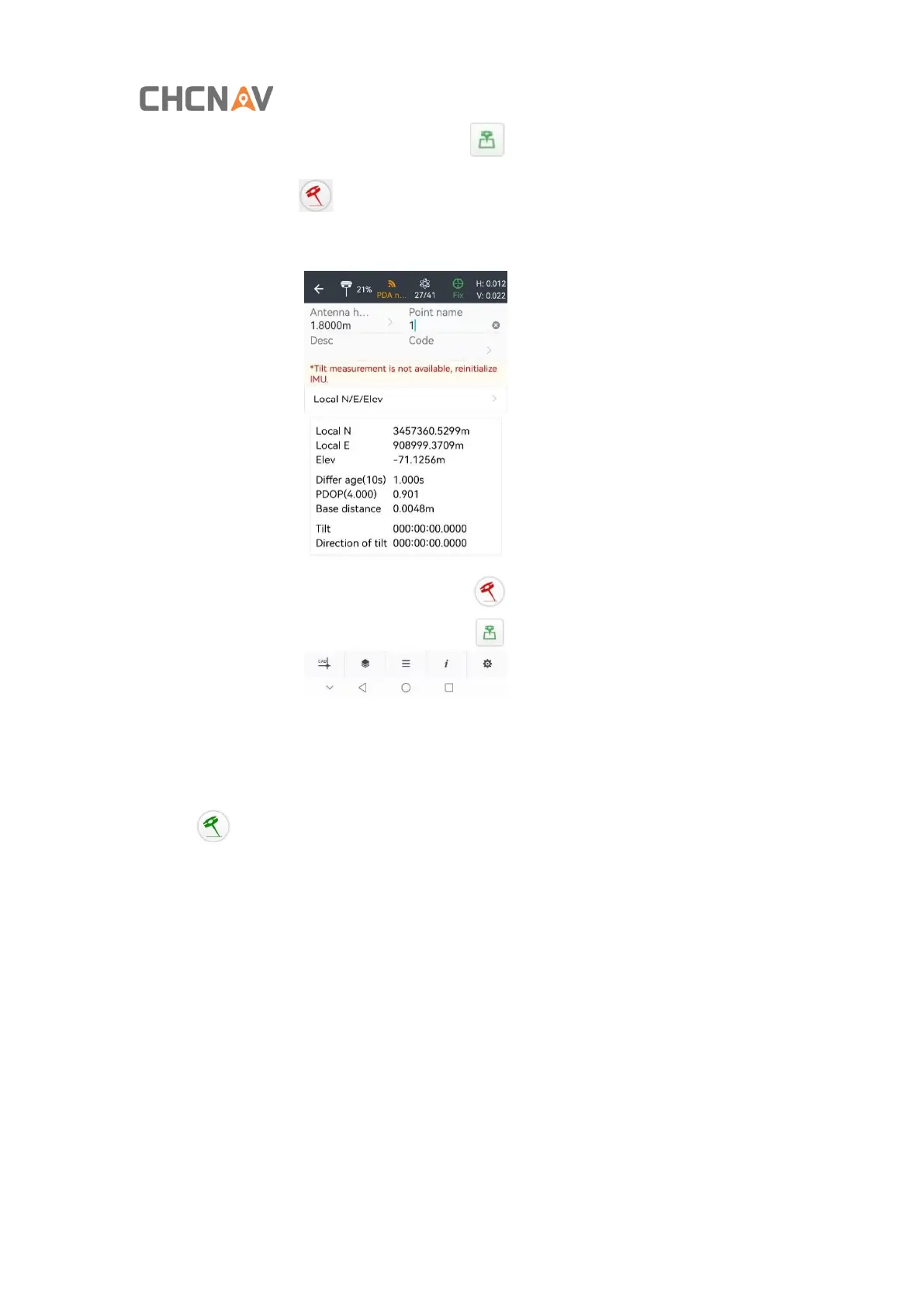

(4) Enter the Name and Antenna, then tap , point will be collected and store to Points
automatically.
(5) When this icon appears, the text will show “Tilt is not available, please measure in
alignment” at the bottom of interface.
(6) Tap to close tilt compensation.
3.4.2 Notes of using tilt measurement
1. At the beginning of initialization, the pole height of the instrument should be the same as that
antenna height in the software.
2. In the process of tilt measurement, if the controller shows that “Tilt is not available, please measure in
alignment” (red), please shake RTK slightly from left to right or back to front until the reminder disappears.
3. The controller will prompt “Tilt is not available, please measure in alignment” when the receiver is
stationary over 30 seconds or the pole hit the ground toughly.
4. The pole cannot be shaken when point is collected.
5. Initialization is required:
