Equipment Setup and Operation
CHCNAV i90 GNSS USER GUIDE | 2019-9 P a g e | 41

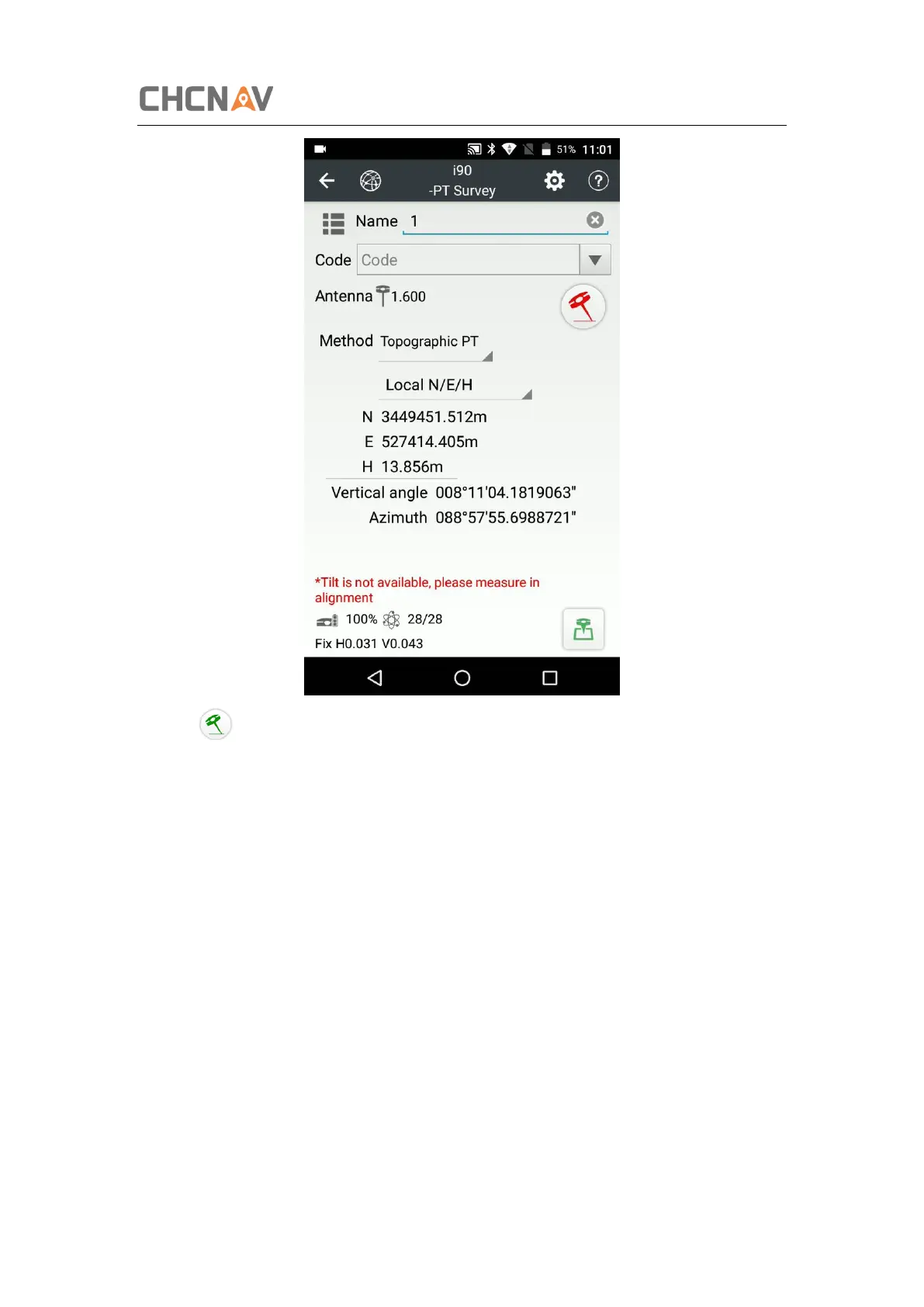

(6) Tap to close tilt compensation.
4.4.2 Notes of using tilt measurement
1. At the beginning of initialization, the pole height of the instrument should be the same as
that antenna height in the software.
2. In the process of tilt measurement, if the controller shows that “Tilt is not available, please
measure in alignment” (red), please shake RTK slightly from left to right or back to front until
the reminder disappears.
3. The controller will prompt “Tilt is not available, please measure in alignment” when the
receiver is stationary over 30 seconds or the pole hit the ground toughly.
4. The pole cannot be shaken when point is collected.
5. The receiver cannot be moved in a circle in one direction for more than 360 degrees.
if the receiver has been rotated 360 degrees, it must be rotated in the opposite
direction to recover again.
