Select “TOUT ECO” and set this value to 00.01 h. at 23,59 h. at steps of 1’ by operating in
accordance with the contents of paragraph 7-1 pt. i). By setting 00.00 the control function on the
loss of eco is excluded.
7.2.2 SYSTEM SETUP[1.2]
It is the second menu of the icon “SETUP” (see Fig. 7-3).

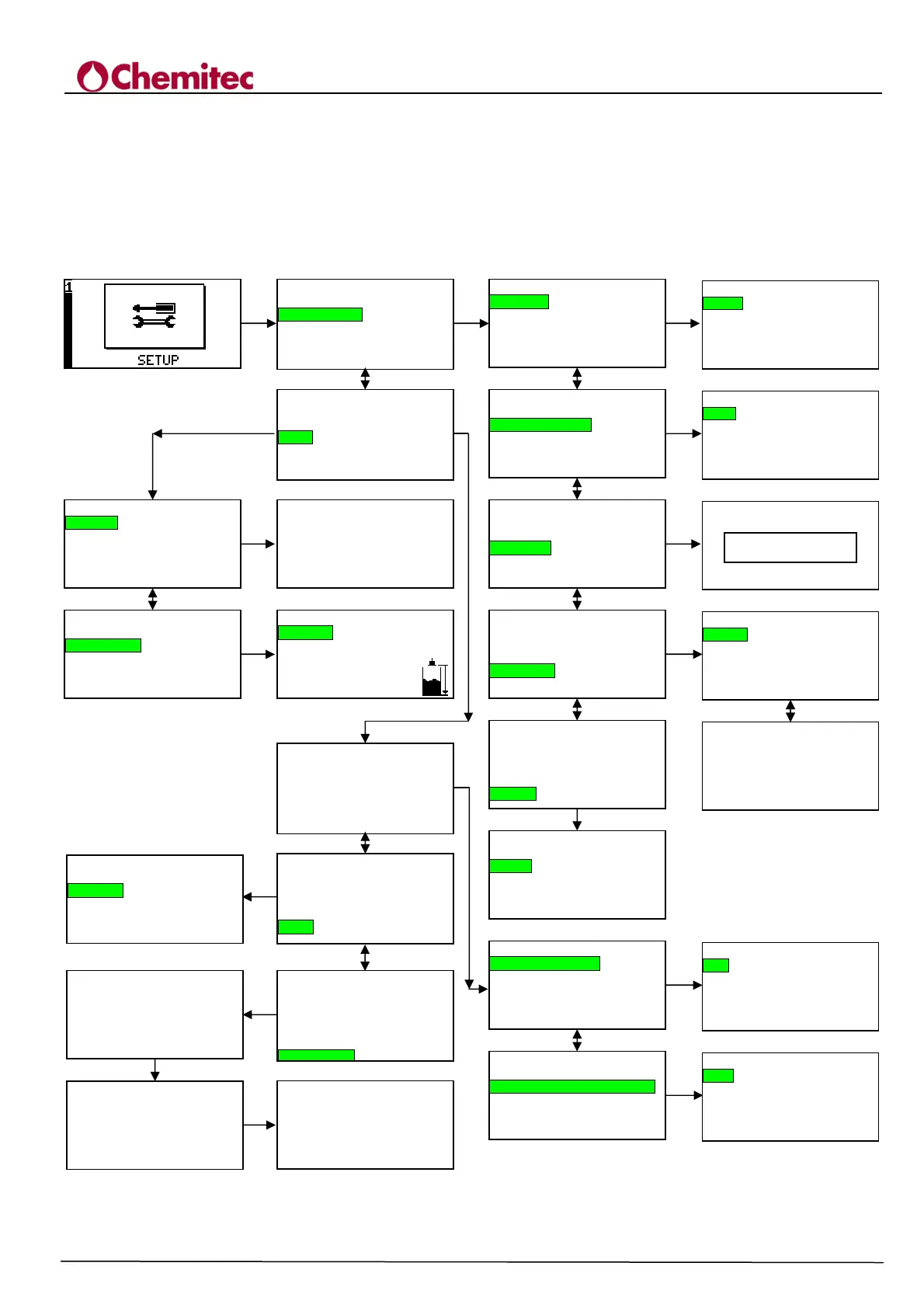

Figure 7-3 "SETUP" Menu (part two)
1.0 SETUP
RELAYS
SYSTEM SETUP
LEVEL
FLOW
TABLE
RESET SETUP
ENTER
+
DOWN
1.2 SISTEM SET UP
DATE/TIME
COMMUNICATIONS
LANGUAGE
PASSWORD
DISPLAY
ENTER
1.21 DATE/TIME
Seconds 46
Minutes 19
Hours 15
Day 13
Month 09
Year
2006
ENTER
1.2 SISTEM SET UP
DATE/TIME
COMMUNICATIONS
LANGUAGE
PASSWORD
DISPLAY
1.22 COMMUNICATIONS
Addres 1
Baud rate 9600
ENTER
1.2 SISTEM SET UP
DATE/TIME
COMMUNICATIONS
LANGUAGE
PASSWORD
DISPLAY
1.23 LANGUAGE
ENGLISH
ENTER
1.2 SISTEM SET UP
DATE/TIME
COMMUNICATIONS
LANGUAGE
PASSWORD
DISPLAY
1.24 PASSWORD
STATUS
NEW
ENTER
Insert password
[
****
]
DOWNENTER
1.2 SISTEM SET UP
DATE/TIME
COMMUNICATIONS
LANGUAGE
PASSWORD
DISPLAY
1.25 DISPLAY
Contrast 69%
Back light. FIXED
ENTER
DOWNUP
DOWNUP
DOWNUP
DOWNUP
1.0 SETUP
RELAYS
SYSTEM SETUP
LEVEL
FLOW
TABLE
RESET SETUP
DOWNUP
1. 3 LEVEL
GENERAL
PARAMETERS
1. 31 GENERALE
Units cm
Decimals 1
1. 3 LEVEL
GENERAL
PARAMETERS
1. 32 LEVEL PARAM
h0 Dist 79.5 cm
h max 29.0 cm
ENTER
DOWNUP
ENTER
ENTER
DOWN
1.0 SETUP
RELAYS
SYSTEM SETUP
LEVEL
1.6 RESET SETUP
RESET?
ARE YOU SURE?
1. 4 FLOW
GENERAL
PARAMETERS
1. 4 FLOW
GENERAL
PARAMETERS
ENTER
DOWNUP
ENTER
ENTER
1.41 GENERIC FLOW
Units l/s
Decimals 0
PMD RECTANG
Exponent 1.55
1.42 FLOW PARAM
q max 111 l/s
Cut off 0 %
ENTER
1.0 SETUP
RELAYS
SYSTEM SETUP
LEVEL
FLOW
TABLE
RESET SETUP
DOWNUP
1.5 TABLE
Points 0
1.6 RESET SETUP
RESET?
1.6 RESET SETUP
RESET?
ARE YOU SURE?
ENTER
1.0 SETUP
RELAYS
SYSTEM SETUP
LEVEL
FLOW
TABLE
RESET
SETUP
UP DOWN
1.6 RESET SETUP
RESET?
ARE YOU SURE?
Default Setup loaded
ENTER
ENTER
