SECTION 7.0 MECHANICAL SPECIFICATIONS
The following Figures 14 thru 19 illustrate enclosure and mounting dimensions for Streaming
Current Monitor/Controller, Dura-Trac Sensor, Dura-Trac Sensor with Flush, Dura-Trac II
Sensor, and Sensor Maintenance Module.
11.2" [285mm] 13.6" [345mm] 12.5" [317mm]
7.71" [196mm]
CHEMTRAC
SYSTEMS, INC.
SCC3500XRD
9.2" [234mm]
7.7" [196mm]
Service
Alarm
Power
Diag.
6.1" [155mm]
6.3" [161mm]

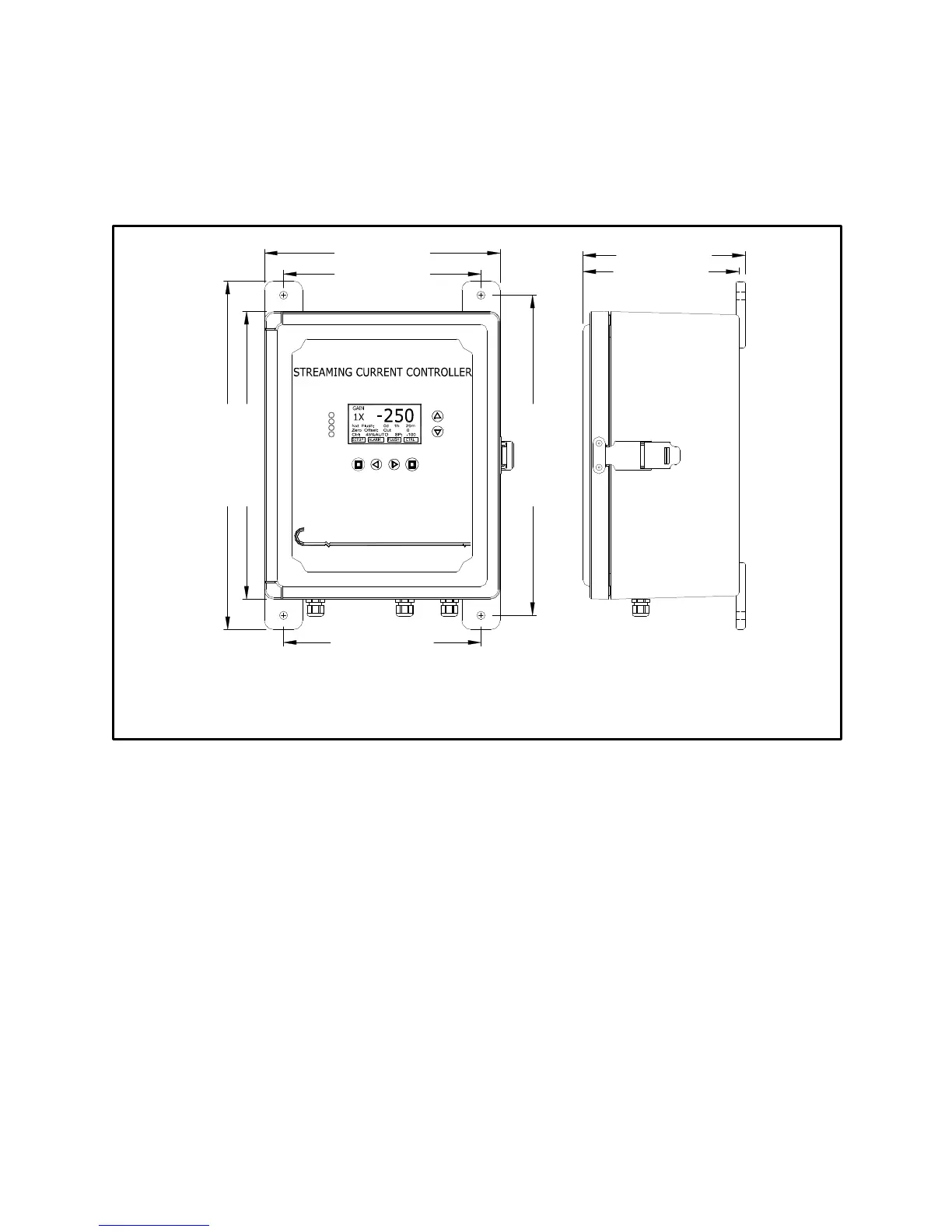

FIGURE 14. Streaming Current Monitor/Controller Dimensions
