R3250Hz Universal Series Technical Manual
100
GD Chigo Heating & Ventilation Equipment Co., Ltd.

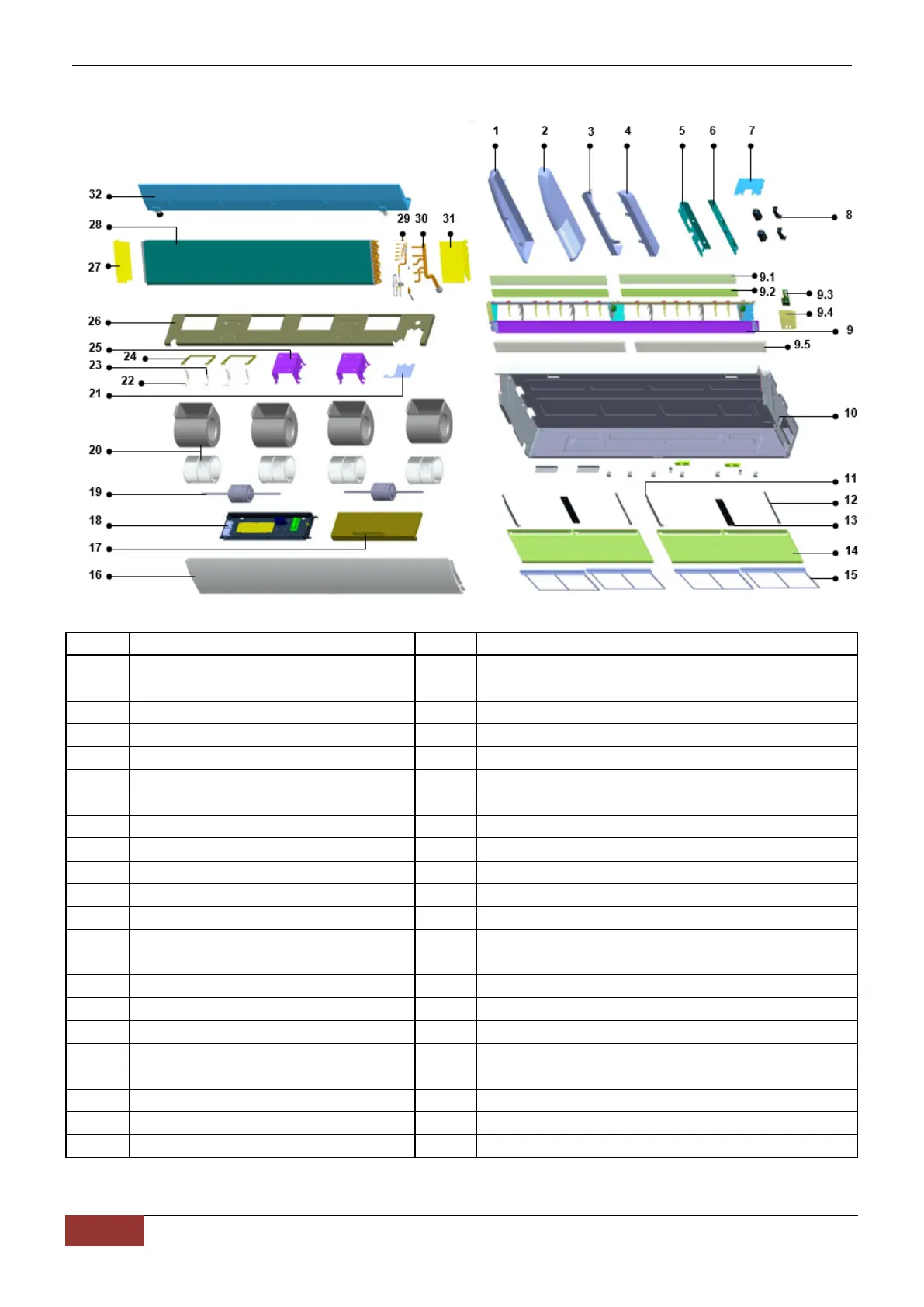

8.2 CUA-48HVR4, CUA-55HVR4
No.
Part Name
No.
Part Name
1
Right cover
18
E-parts assy
2
Left cover
18.1
Electric box
3
Right seal plate
18.2
Indoor PCB
4
Left seal plate
18.3
Fan capacitor
5
Right hoisting plate
18.4
Terminal
6
Left hoisting pate
19
Indoor fan motor
7
Rat guard
20
Wheel volute
8
Handle
21
Pipe clamp
9
Air out frame assy
22
Left gland for motor shaft sleeve
9.1
Upper horizontal louver
23
Right gland for motor shaft sleeve
9.2
Down horizontal louver
24
Motor separating board
9.3
Display lamp panel
25
Holder for fan motor
9.4
Installing box for display panel
26
Weld assembly for intermediate transverse girder
9.5
Foam for air outlet frame
27
Right mounting plate of evaporator
10
Chassis
28
Evaporator assembly
11
Left retaining plate
29
Shunt capillary assembly
12
Right retaining plate
30
Air inlet header pipe assembly of evaporator
13
Filter snap-gauge
31
Left mounting plate of evaporator
14
Air inlet grille
32
Weld assembly of water drain pan
15
Filter
32.1
Water outlet rubber cover
16
Top Cover assembly
17
Electric box cover
