R3250Hz Universal Outdoor Series Technical Manual
57
GD Chigo Heating & Ventilation Equipment Co., Ltd.

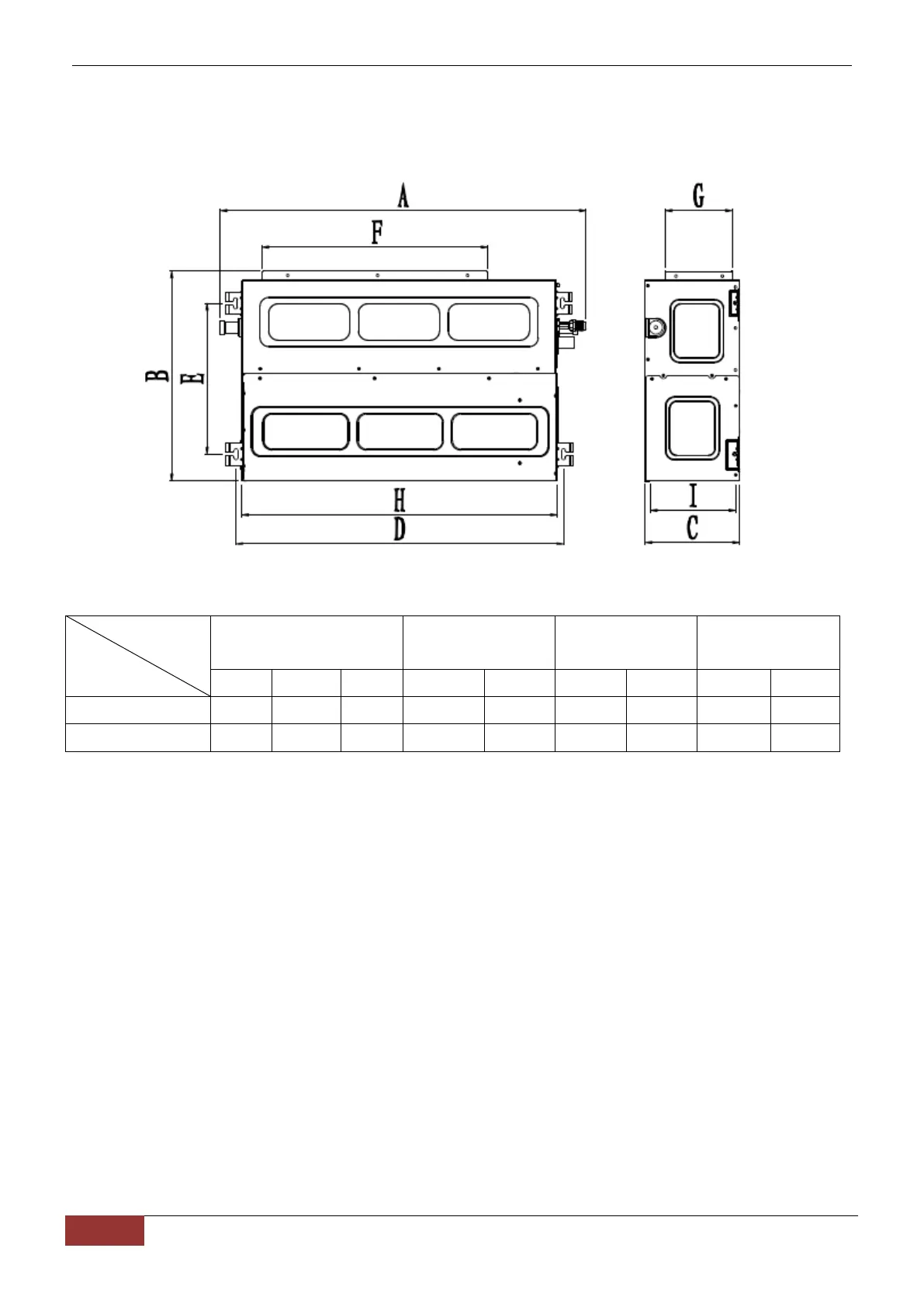

3. Dimensions
CTA-18HVR4,CTA-24HVR4
Dimension
Capacity
Device body
dimension
Installation
dimension
Air outlet
dimension
Return air
dimension
A
B
C
D
E
F
G
H
I
5.3kW
1214
467
210
1128
335
905
150
1011
200
7.1kW
1214
467
210
1128
335
905
150
1011
200
