R3250Hz Universal Series Technical Manual
99
GD Chigo Heating & Ventilation Equipment Co., Ltd.

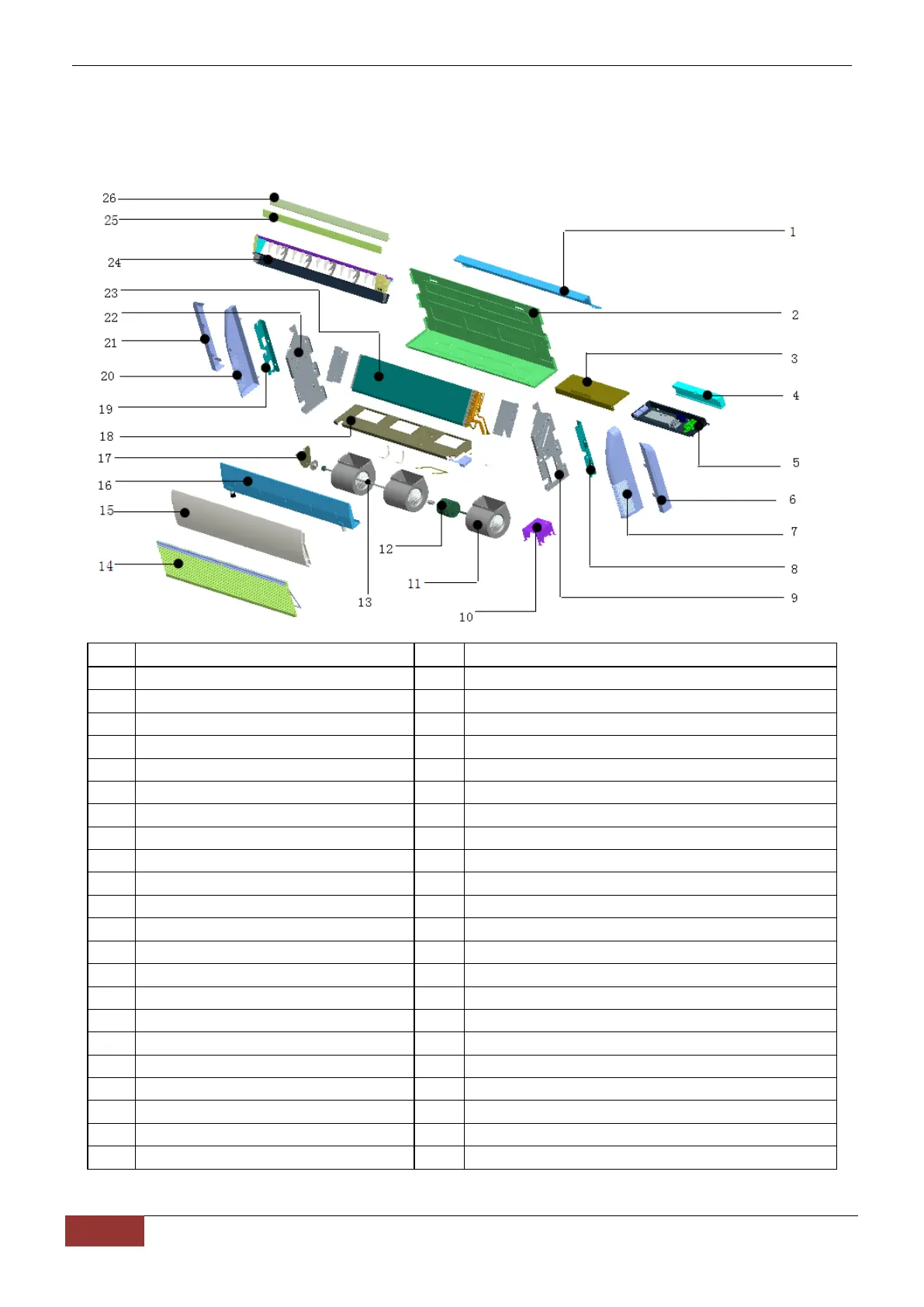

8. Exploded View
8.1 CUA-18HVR4, CUA-24HVR4, CUA-36HVR4, CUA-36HVR4S
No.
Part Name
No.
Part Name
1
Rear cover with cotton
17
Supporting board for motor
2
Chassis assembly
18
Weld assembly for intermediate transverse girder
3
Electric box cover
19
Right mounting plate of evaporator
4
E-part box mat
20
Right cover
5
Indoor PCB assembly
21
Right seal plate
5.1
E-part box
22
Right separating board
5.2
Indoor PCB
23
Evaporator component
5.3
Relay
23.1
Left mounting plate of evaporator
5.4
plastic base of Electric control board
23.2
Shunt capillary assembly
5.5
Terminal
23.3
Air inlet header pipe assembly of evaporator
6
Left seal plate
23.4
Evaporator assembly
7
Left cover
24
Air-out frame component
8
Left hoisting pate
24.1
Fixing board assembly for air-out frame
9
Left separating board
Ⅰ
24.2
Display film
10
Motor holder
24.3
Display lamp panel
11
Wheel volute
24.4
Vertical step motor
12
Indoor fan motor
24.5
Horizontal step motor
13
Connecting shaft
24.6
End bearing of louver
14
Air inlet grille
24.7
Intermediate bearing of louver
15
Top Cover assembly
24.8
Guard vane
16
Weld assembly of Water drain pan
25
Upper horizontal louver
16.1
Water outlet rubber cover
26
Down horizontal louver
