R3250Hz Universal Series Technical Manual
GD Chigo Heating & Ventilation Equipment Co., Ltd.

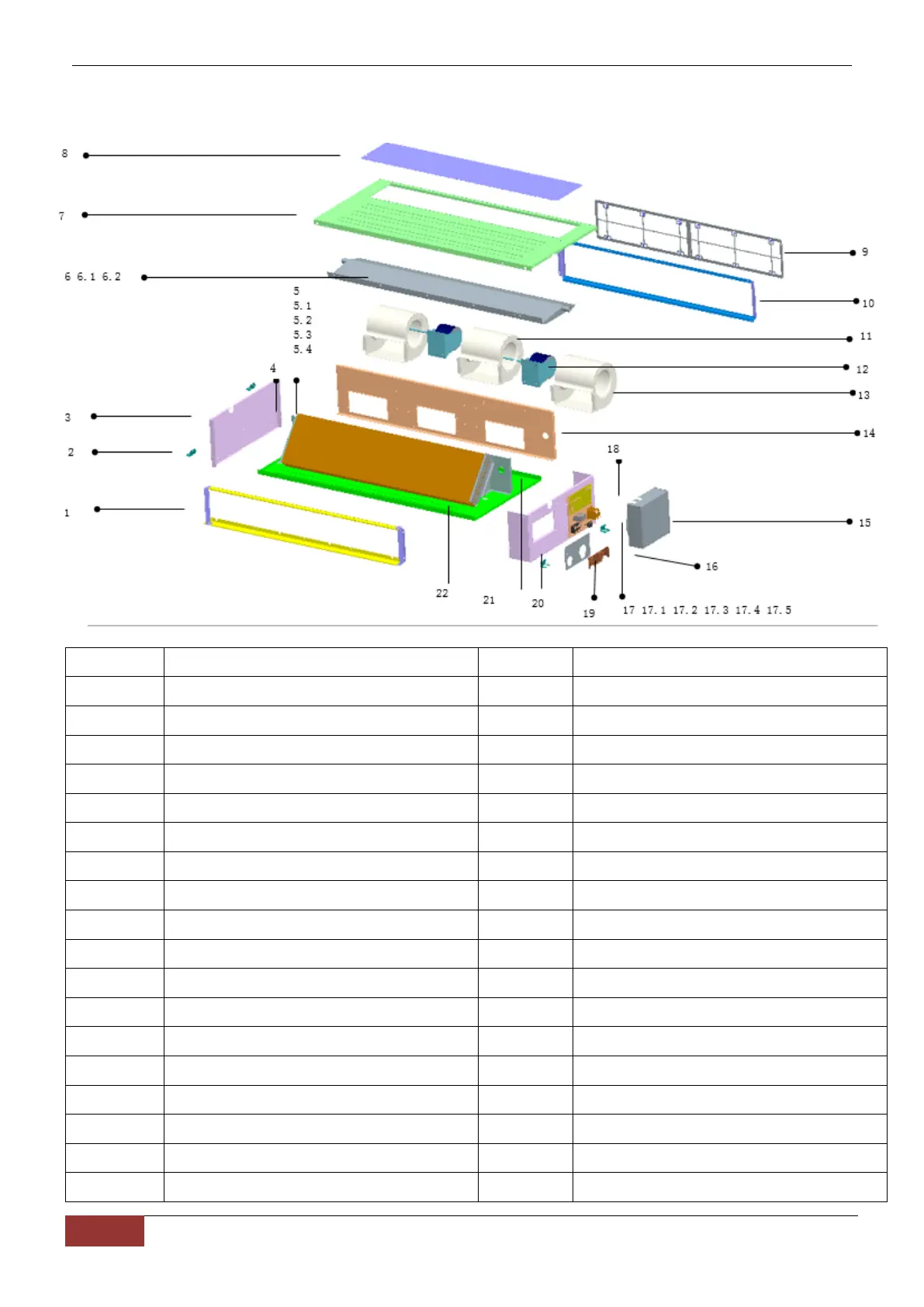

12.2 CTB-36HVR4, CTB-36HVR4S
No. Part Name No. Part Name
1 Air outlet assy 12 Indoor motor1
2 Hanger 12.1 Indoor motor2
3 Left side board 13 Right scroll case
4 Left connecting panel for evaporator 14 Fixing board assy for fan
5 Evaporator components 15 E- parts box cover
5.1 Transitron 16 Small cover
5.2 Current dividing assy 17 Electronic control components
5.3 Collecting pipe assy 17.1 Electronic control board for indoor unit
5.4 Evaporator assy 17.2 Temp sensor
5.5 Installation tube for probe 17.3 Terminal
6 Water pan assy 17.4 Terminal
6.1 Discharge pipe assy 17.5 Groove clamp 7
6.2 Rubber cover for water outlet joint 18 E- parts box base
7 Lower panel 19 Big cover
8 Air return baffle 20 Right side board
9 Air filter 21 Right connecting panel for evaporator
10 Air return assy 22 Upper panel
11 Left scroll case
