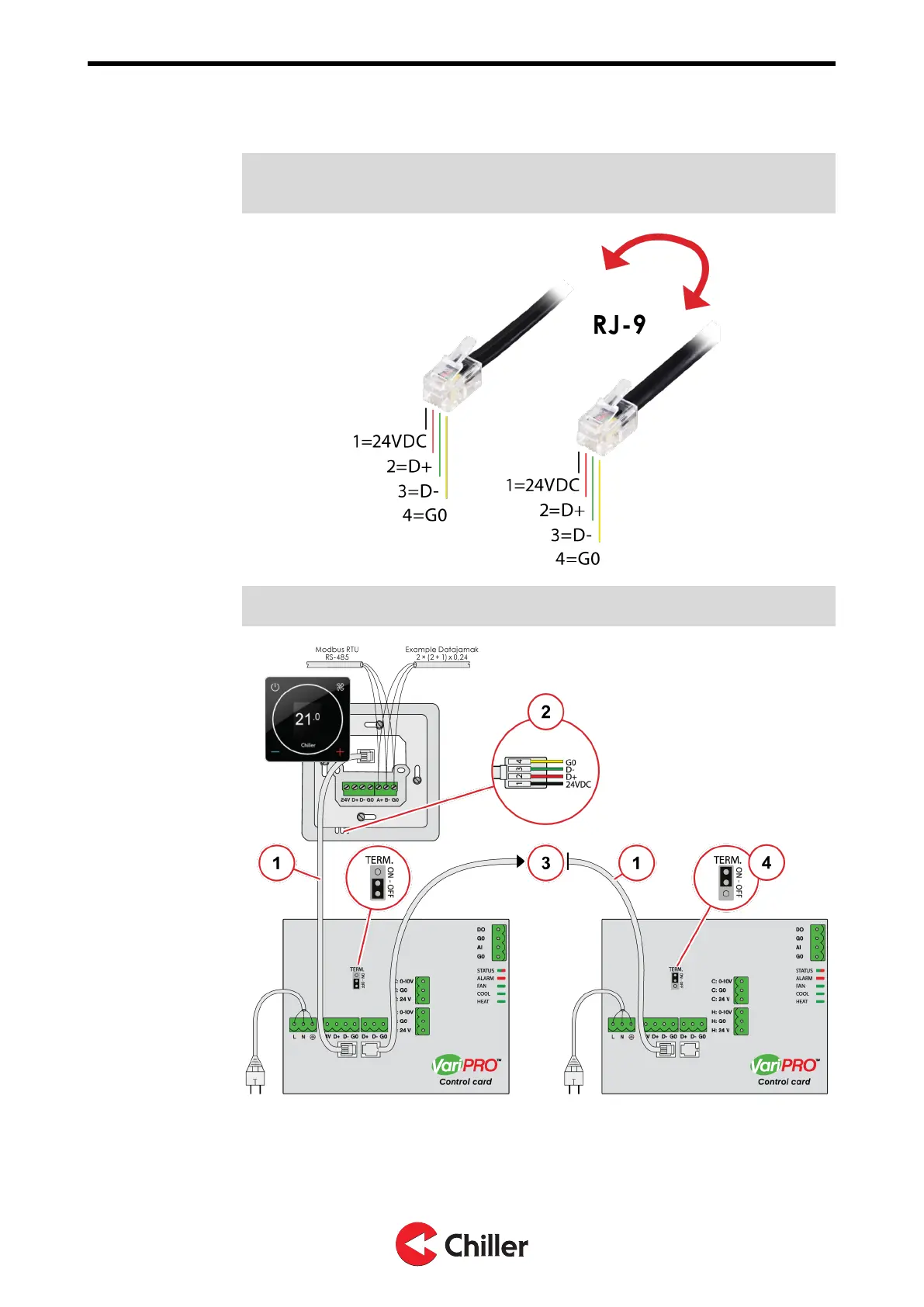

4.2.1 Connection using cables with RJ-9 connectors
Note! Always check the wiring when using 4P4C connectors for the connection.
Use a straight-through cable, not a twisted cable.
Note! Termination (DET A and DET B): Termination is only done for the last unit.
1. Customer wiring
2. RJ-9 10 m cable included in delivery
3. Max. 9 units
4. Last unit only
Copyright © 2021. All rights reserved.
13 (37)
N03104128 Rev. A VariPro Room controller – Installation and Operation Manual
