4.2.2 Connection using screw connectors
CAUTION
Do not install cabling in a location where it can be exposed to
electromagnetic disturbances.
Recommended maximum cable length between the controller and the unit or
units is 10 m. Using a screened twisted pair cable is recommended.
Note! Termination (DET A and DET B): Termination is only done for the last unit.

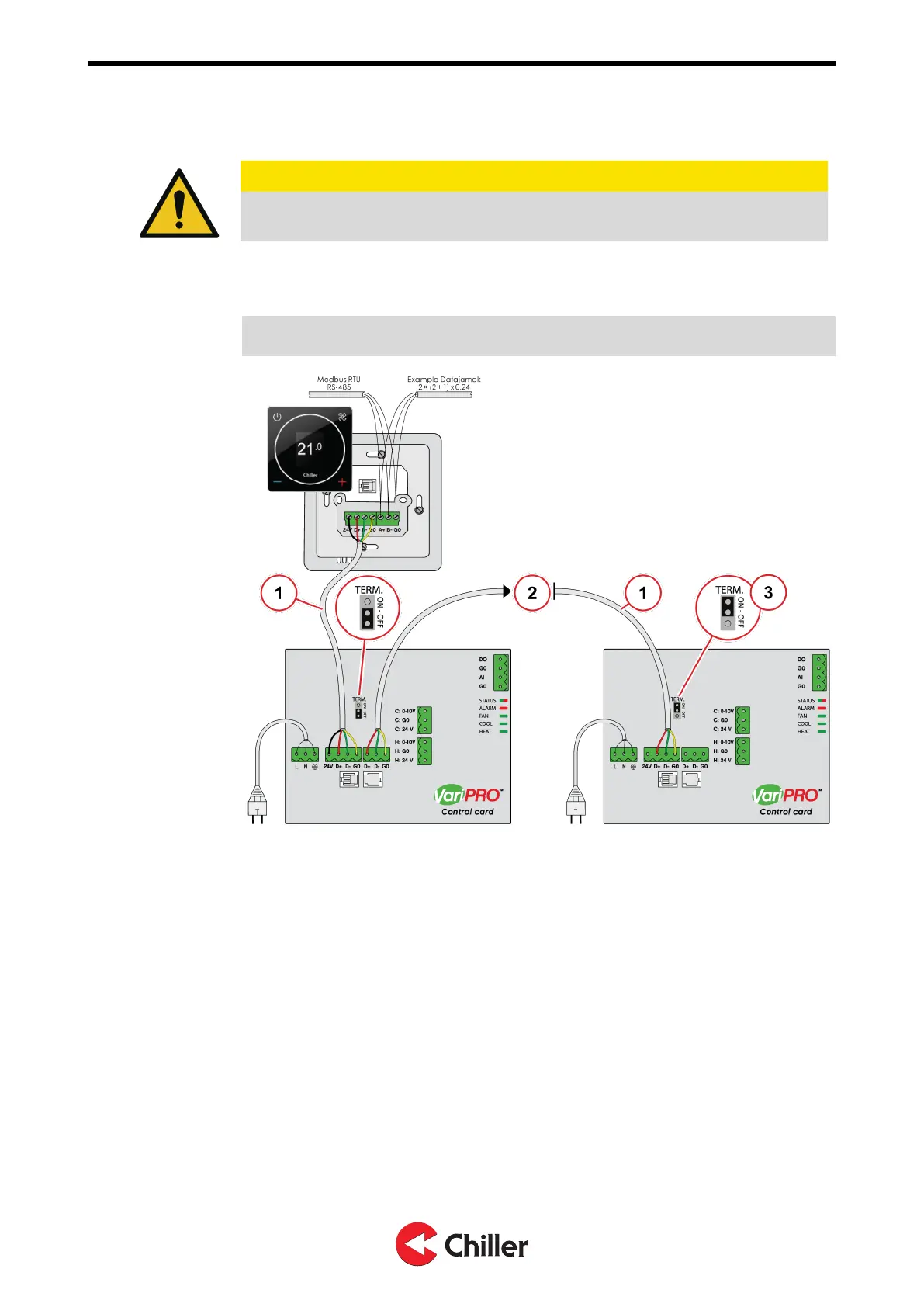

1. Customer wiring
2. Max. 9 units
3. Last unit only
