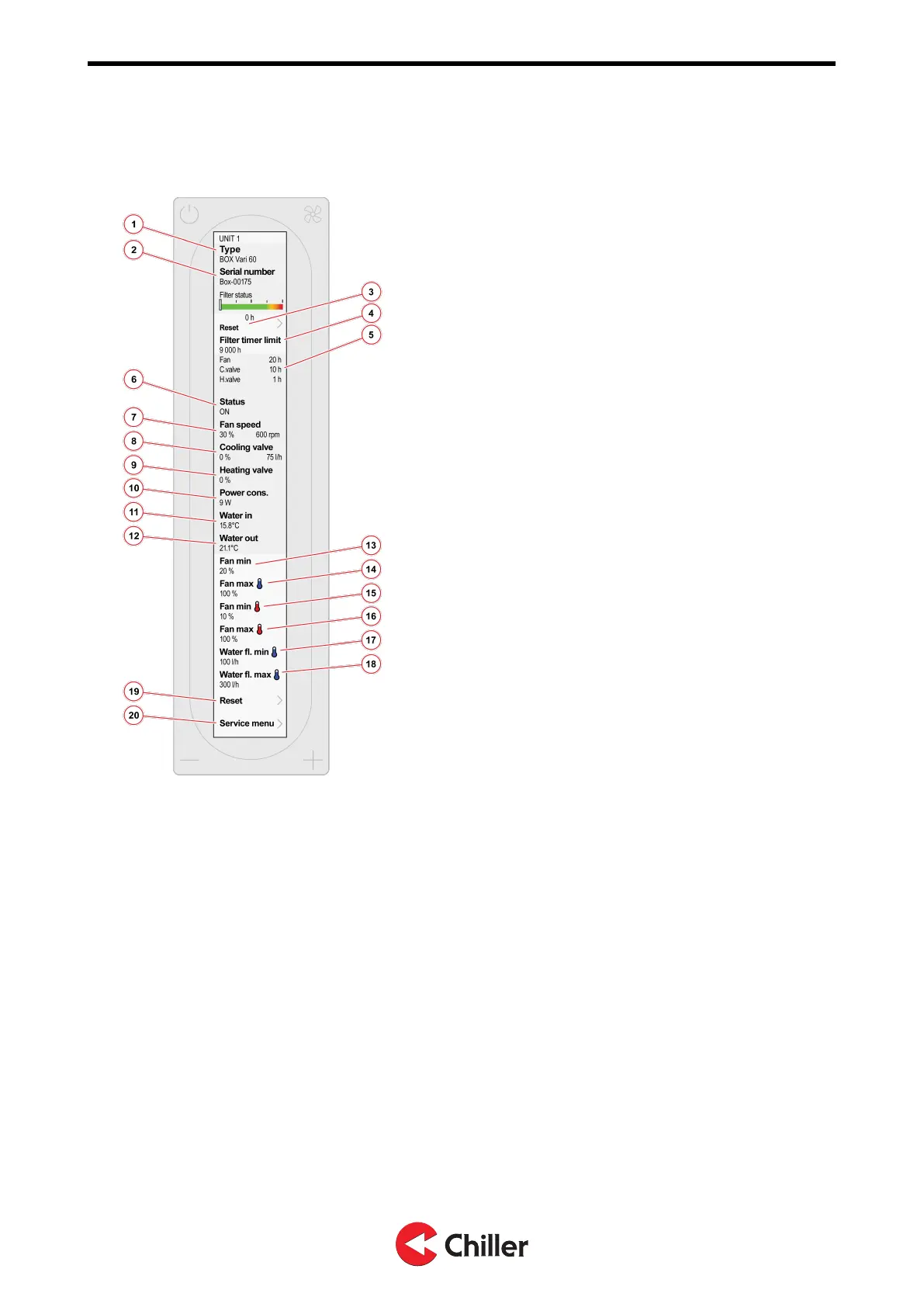

8.5 Unit menu
1. Unit type
2. Unit serial number
3. Reset the filter timer.
4. Set the filter timer limit.
5. Operating hours of the components
6. Operating status of the unit
7. Current fan speed (scaled to the maximum)
8. Relative position of the cooling valve
9. Relative position of the heating valve
10. Calculated current electrical power consumption
11. Temperature of incoming water
12. Temperature of outgoing water
13. Fan’s minimum speed at cooling
14. Fan’s maximum speed at cooling
15. Fan’s minimum speed at heating
16. Fan’s maximum speed at heating
17. Minimum cooling liquid flow (pressure independent
valves only)
18. Maximum cooling liquid flow (pressure
independent valves only)
19. Reset the unit settings to factory defaults.
20. Go to the Service menu (for service personnel
only).
