9 Bus structure
9.1 Overview of the bus structure
The VariPro controller is equipped with RS-485 interfaces. The controller uses a
Modbus RTU protocol, and, in total, 125 controllers can be connected to one
branch.

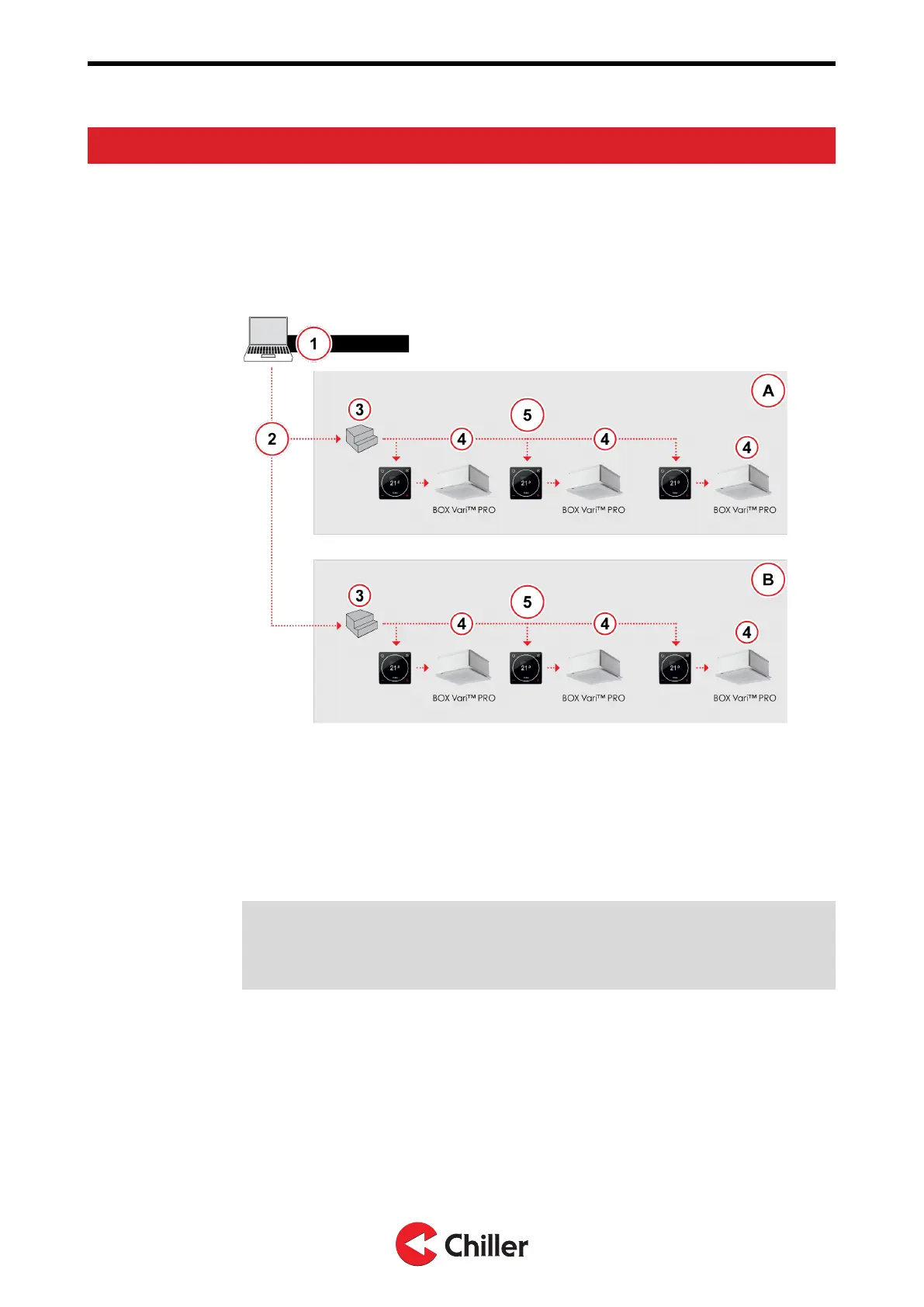

Figure 2: Operating principle of the bus structure
1. Main control interface
2. Ethernet (TCP/IP network)
3. Gateway
4. Max 9 units
5. Modbus RTU (RS-485) Max 125
controllers
A First floor
B Ground floor
Note! Observe proper delays when communicating over Modbus. Use a polling
delay of at least 200 ms. If you observe bus errors, increase the delay until there are
no errors. Continuously rewrite (refresh) the desired control registers at least every
5 minutes.
