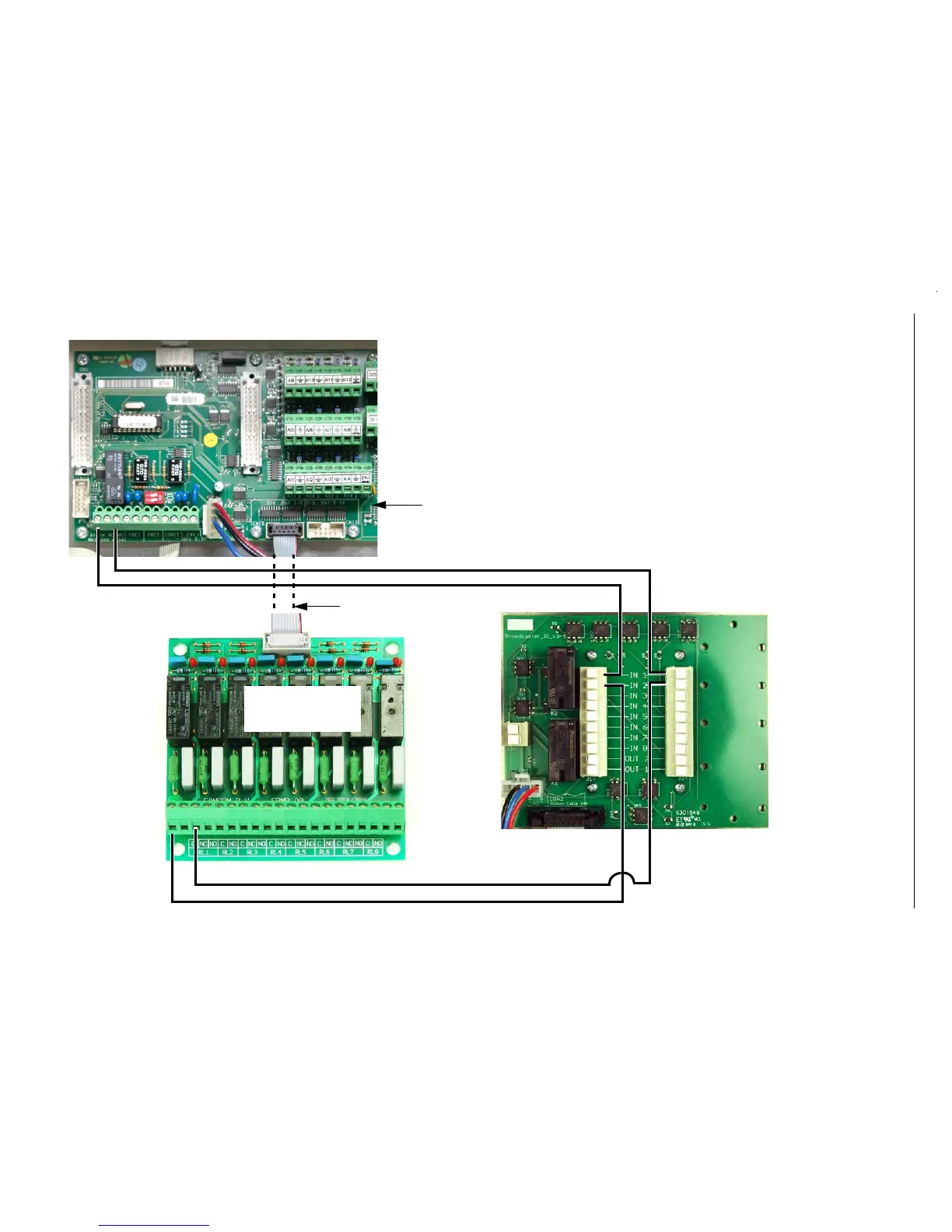

Connect Flat Cable
1.Connect the Flat Cable as shown.
2.Remove the Common Jumper Wired if not needed.
3.All outputs are SPDT dry contack (Com./NC./NC.)
4.Broadcaster connects to the Com and NO.
5.Outputs:
1. High or Low Temperature on any mode temp sensor.
2. High or Low Static Pressure.
3. Low Water Pressure.
CT2 I/O /Board
Wireless Alarm
Board
Broadcaster I/O Board
To Next Page
