Wiring Broadcaster
32
MT2461A

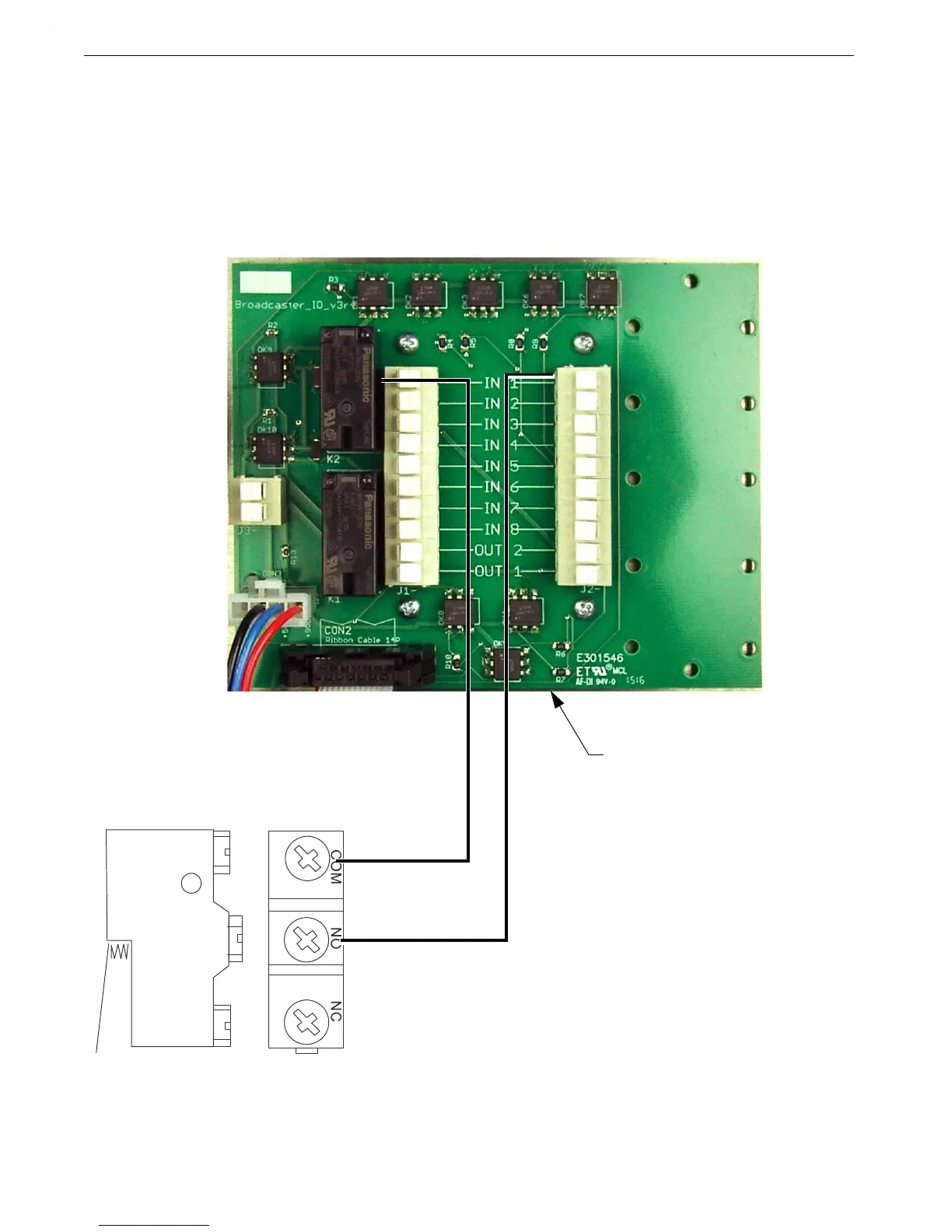

Power Transfer Box Auxiliary Relay Connection Wiring
The Relay in the Generator that monitors the current mode of Power Source must be connected to the Broadcaster
so that the input sees a closed circuit when in Standby (Backup) mode. This Input is still delayed by the Alert
Delay Setting.
The Generator can be connected to any of the 8 Inputs.
Test the wiring Alert by performing a Generator Test Cycle. If no alert after the alert delay time, check all the
connections and dialing setup.
Broadcaster I/O Board
Common
Normally Open
Normally Closed
To Next Page
