Model 108 FLEX-AUGER Installation Manual
( 26 )

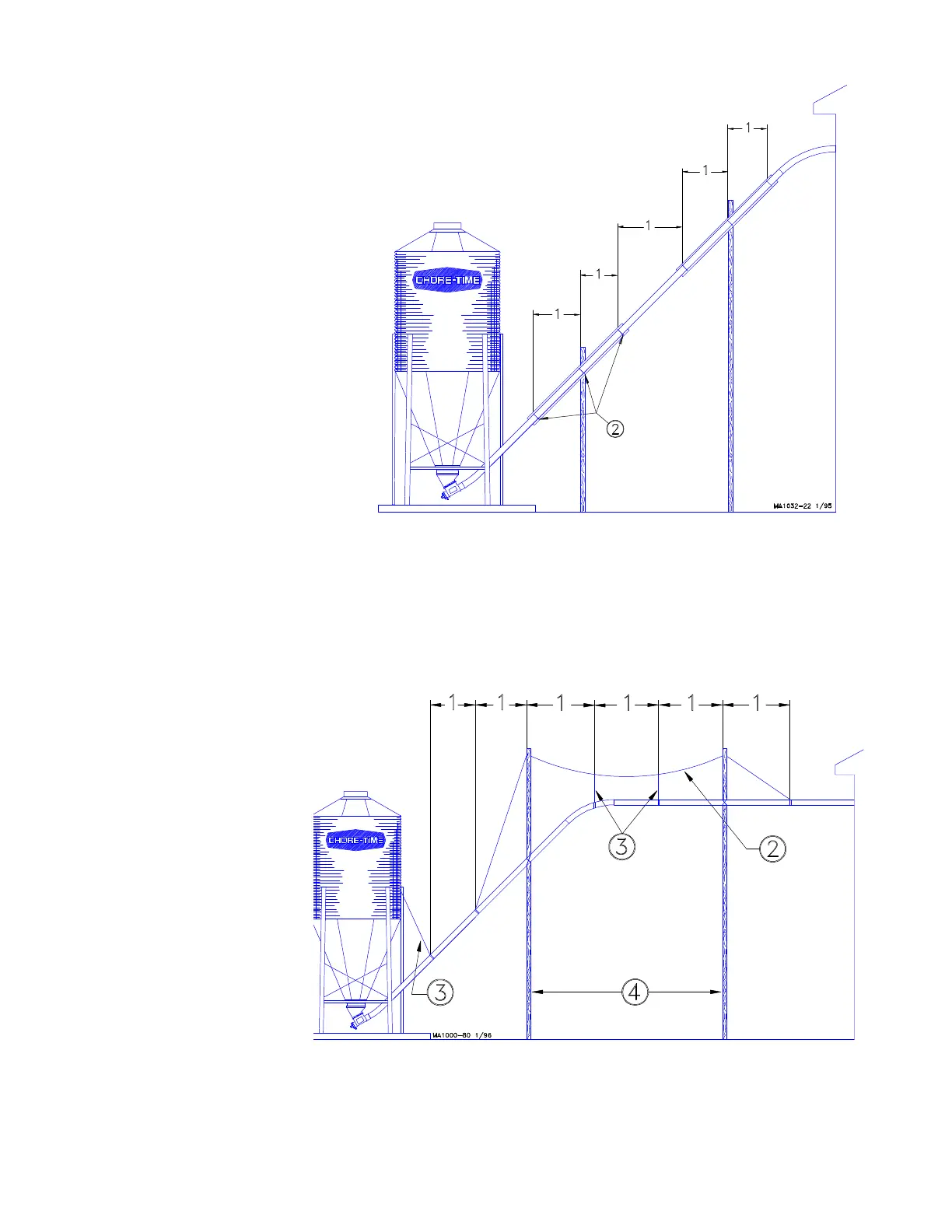

Figure 10. Long, Elevated Systems (Side View)
Key Description
1 5’ (1.5 m) for PVC Systems
10’ (3 m) for Steel Systems
2 Place clamps here.
Key Description
1 5’ (1.5 m) for PVC Systems
10’ (3 m) for Steel Systems
2 Master Cable
3 Chain or Cable
4 20’ (6 m) Maximum
Figure 9. High Rise Auger Tube Support (Side View)
