Chore-Time FLEX-AUGER 108 - Maintenance; Oil Recommendation

Model 108 FLEX-AUGER Installation Manual
( 44 )

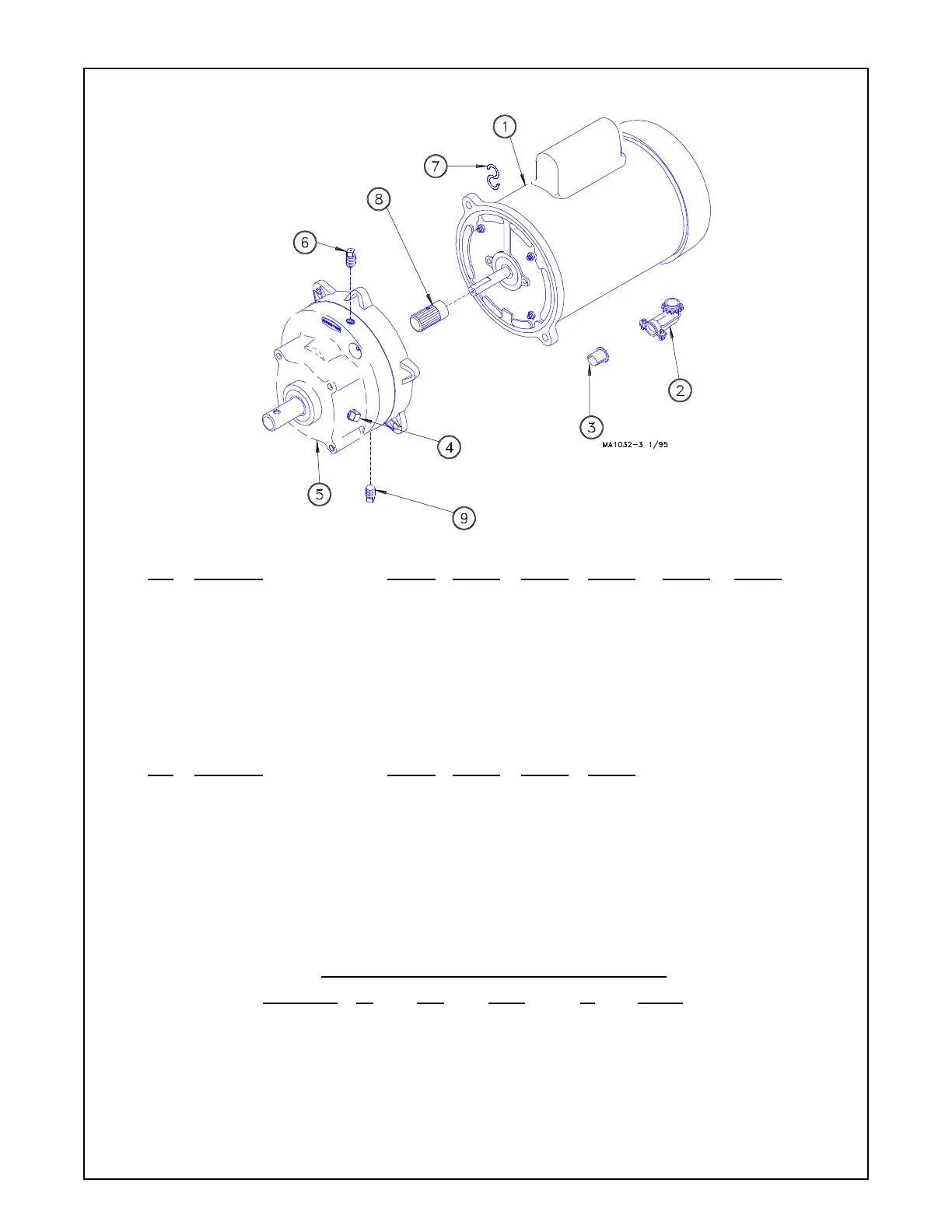

3259-49 3259-52 3259-66 3259-79 3259-80 3259-121
Item
Description Part No. Part No. Part No. Part No. Part No. Part No.
1 Motor 6857 5051 8782 6857 8782 34461
2 90 Degree Connector 4228 4228 4228 4228 - - - - - - - -
3 Anti-Short Bushing 6304 6304 6304 6304 - - - - - - - -
4 Pipe Plug 2755 2755 2755 2755 2755 2755
5 Gearhead 3261-7 3261-7 3261-7 3261-10 3261-10 3261-10
6 Vent Plug 3523 3523 3523 3523 3523 3523
7 S Hook 4270 4270 4270 4270 4270 4270
8 Pinion Assembly 6104 5046 6104 6104 6104 6104
9 Magnetic Pipe Plug 30160 30160 30160 30160 30160 30160
3259-88 3259-89 3259-105 3259-106
Item
Description Part No. Part No. Part No. Part No.
1 Motor 6305 26157 28035 28036
2 90 Degree Connector 4228 4228 - - - - - - - -
3 Anti-Short Bushing 6304 6304 6304 6304
4 Pipe Plug 2755 2755 2755 2755
5 Gearhead 3261-10 3261-10 3261-10 3261-10
6 Vent Plug 3523 3523 3523 3523
7 S Hook 4270 4270 4270 4270
8 Pinion Assembly 5046 6104 6104 6104
9 Magnetic Pipe Plug 30160 30160 30160 30160
Power Unit Assembly Part Numbers:
Part Number HP RPM Phase Hz Voltage
3259-49 1 HP 348 RPM Single Phase 60 Hz 230
3259-52 3/4 HP 348 RPM Single Phase 60 Hz 230
3259-66 1-1/2 HP 348 RPM Single Phase 60 Hz 230
3259-79 1 HP 425 RPM Single Phase 60 Hz 230
3259-80 1-1/2 HP 425 RPM Single Phase 60 Hz 230
3259-121 2 HP 425 RPM Single Phase 60 Hz 230
3259-88 3/4 HP 348 RPM Single Phase 50 Hz 230
3259-89 1 HP 348 RPM Single Phase 50 Hz 230
3259-105 1 HP 348 RPM Three Phase 50 Hz 220/380
3259-106 1-1/2 HP 348 RPM Three Phase 50 Hz 220/380
Power Units
