Model 108 FLEX-AUGER Installation Manual
( 32 )
Cover Plate Installation
If the Cover Plate is to be used, install as shown in Figure 17.
1. Loosen wing nuts to end of studs
2. Start lower side of cover plate in boot opening.
3. Slide the cover plate up as far as possible so that plate catches top
of boot opening.
4. Hold the cover securely while tightening the wing nuts.

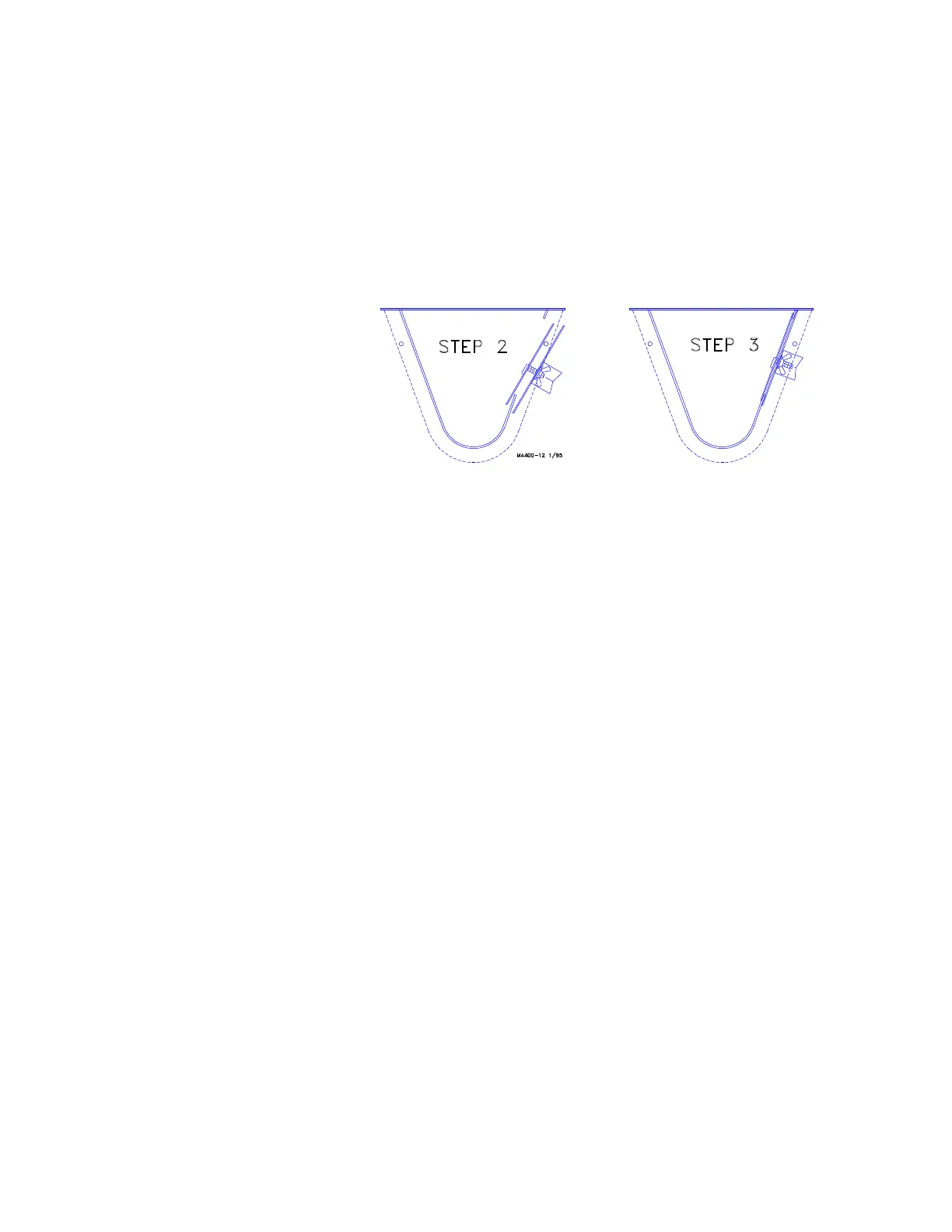

Figure 17. Cover Plate Installation (End View)
