Model 108 FLEX-AUGER Installation Manual
( 47 )

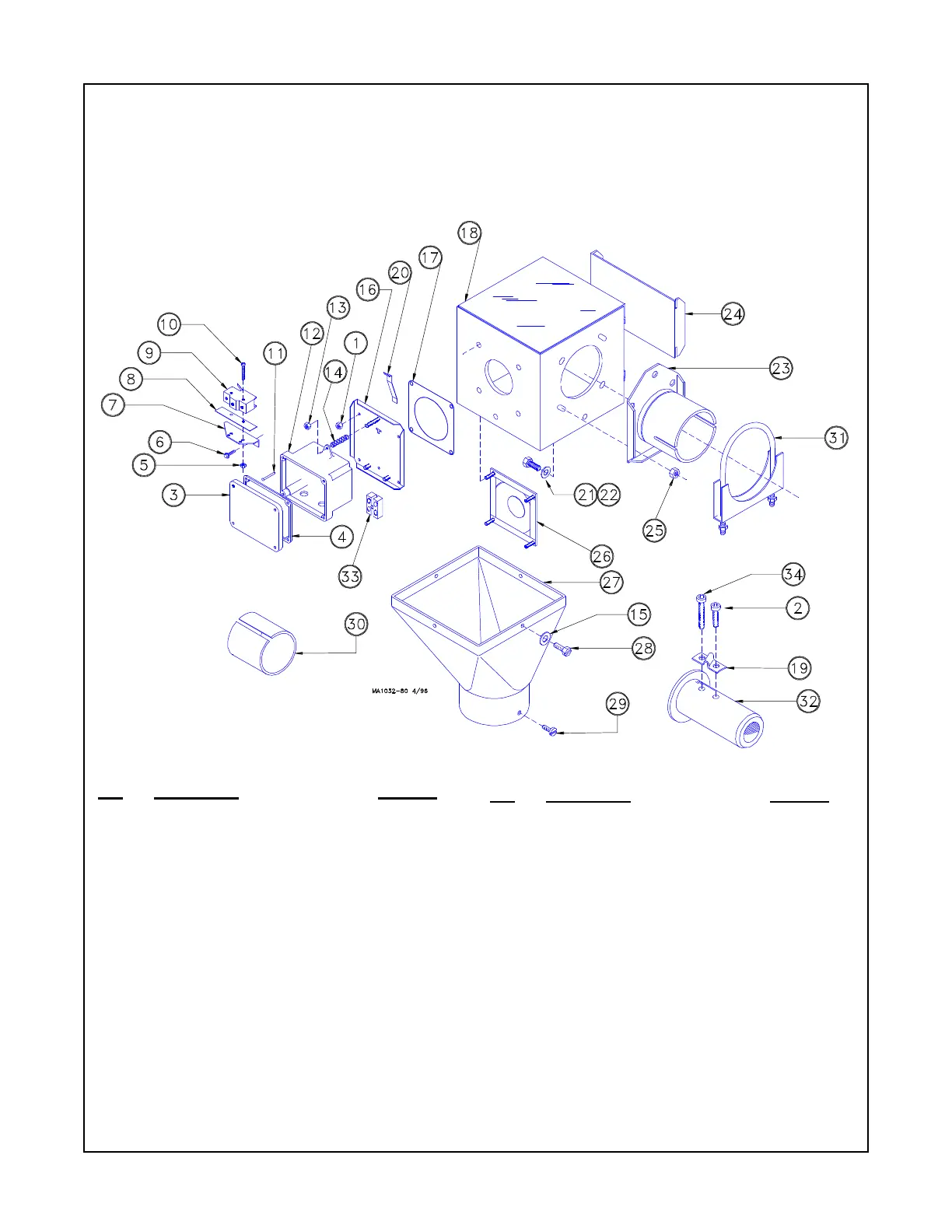

Three Phase Direct Drive Control Unit
Part No. 25770-6
KEY DESCRIPTION PART NO.
1 #10-32 Hex Nut 4297
2** 5/16-18 x 7/8" Socket Hd Cap Screw 6850-1
3 Switch Box Cover 6776
4 Gasket 6777
5 #6-32 Hex Nut 771
6 #6 x 3/8” Hex Hd SMS 6782
7 Switch Bracket 7068
8 Switch Insulation 1907-5
9 SPDT Actuator Switch 7114
10 #6-32 x 7/8” Pan Hd. Screw 1921
11 1/8 x 1” Rd Hd Rivet 8757
12 Switch Box (Machined) 7841
13 #10-32 Lock Nut 6963
14 Spring 6972
15 #10 Flat Washer 6723
16 Mounting Plate Assembly 7908
17 Seal 4873
18 Body Assembly 8276
19** Anchor Clamp 7703
KEY
DESCRIPTION PART NO.
20 Paddle 7896
21 5/16-18 x 1/2” Fastener 1839
22 5/16" Flat Washer 546
23 Tube Anchor Weldment 34543
24 Slide 5073
25 5/16-18 Locknut 2148
26 Diaphragm Assembly 7900
27 Drop 13803
28 #10-24 x 5/8” Hx Wash Hd Screw 1876
29 #8 x 1/2" SMS 6725
30 Tube Insert 34337
31 Clamp Kit 14373
32** Driver Weldment 30312
33 Terminal Strip 34925-2
34** 5/16-18 x 2-3/4 Socket Hd Cap Screw 6850-2
**These components may be ordered under Chore-Time Part
No. 30313 Driver Assembly.
