Model 108 FLEX-AUGER Installation Manual
( 46 )

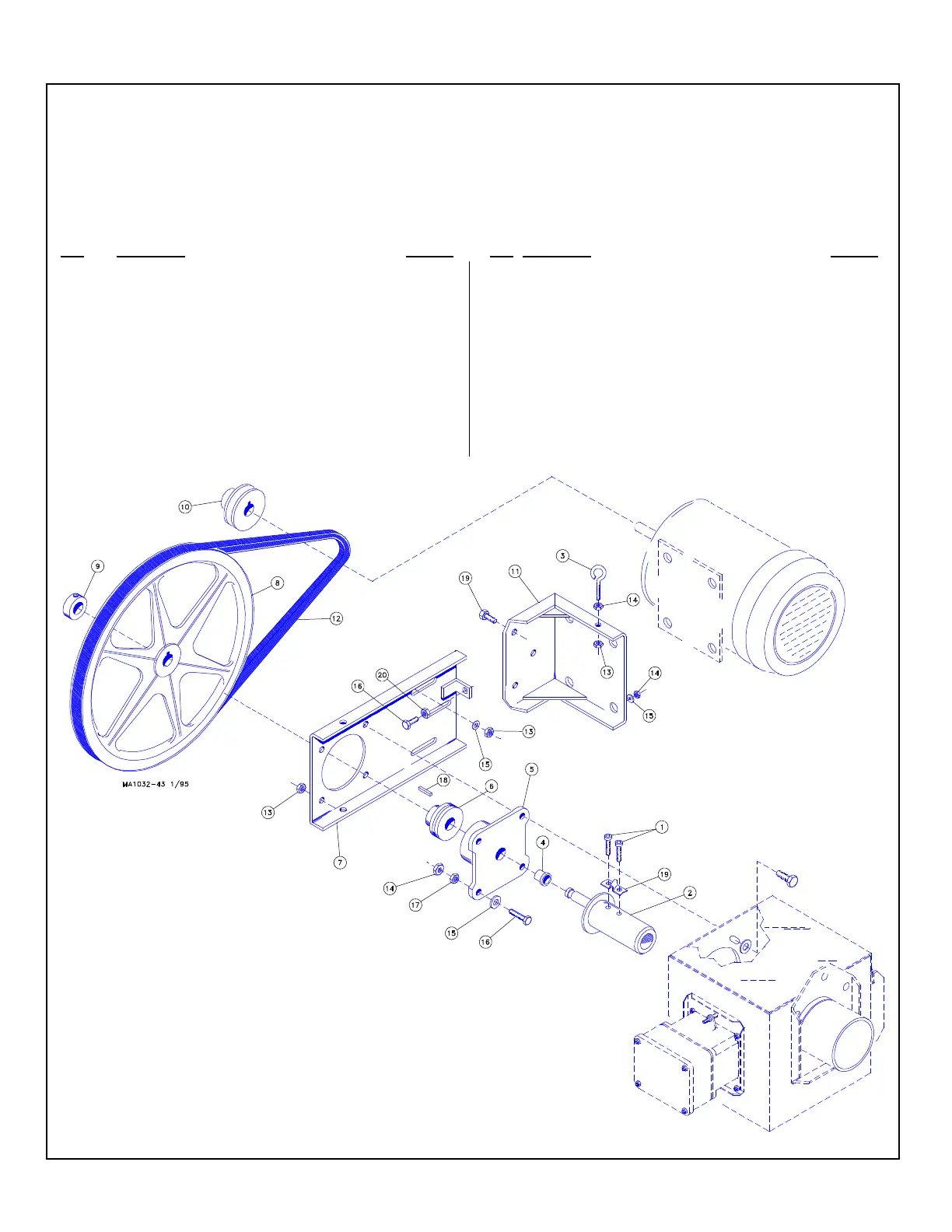

Single Phase Belt Drive Control Unit
Part No. 6500-21
Note: The 6500-21 Belt Drive Control Unit includes the Direct Drive Control Unit components, plus the following components.
Key
Description Part No.
12 "V" Gripnotch Belt 3096
13 5/16-18 Hex Locknut 2148
14 5/16-18 Jam Nut 593
15 5/16 Flat Washer 546
16 5/16-18x1-3/4" Hex Hd. M.S. 4412-4
17 5/16-18 Hex Lock Nut 2148
18 3/16" Key 2112-1
19 Anchor Clamp 7703
20 5/16-18 Hex Nut 2145
The Belt Drive Parts Package (includes all of the above) may be ordered
under Chore-Time part no. 24103.
Key
Description Part No.
1 5/16-18 x 7/8 Socket Hd Screw 6850-1
2 Driver Weldment 34346
3 Eyebolt 1503-2
4 Flange Bearing 2196
5 Front Plate Housing 2047
6 Ball Bearing 5930
7 Adjustment Bracket 3052
8 14" (356 mm) Dia. Sheave 1500
9 5/8" Set Collar 1386
10 2.7" (69 mm) Dia. Sheave 1381
11 Motor Mount Weldment 3058
