Model 108 FLEX-AUGER Installation Manual
( 36 )
2. See Figure 22: PVC Model 108 FLEX-AUGER systems.
Place an Insert in the belled end of the connecting auger tube. The
Insert fits directly over the outlet end of the Terminal Boot.
Cut the straight end of the auger tube even with the stub tube on the
Intermediate Boot.
Slide an Insert into the end of the auger tube and over the inlet end
of the intermediate boot.
Secure this joint using a Tube Coupler and clamp.
Place an Insert in the belled end of the Elbow before inserting over
the outlet end of the Intermediate Boot.
Install tube clamps as shown to secure the boot components in
place.
Straight-Through Tandem Installation
The Straight-Through Tandem Boots allow a single auger to remove
feed from two separate feed bins. Feed should only be drawn from
one bin at a time.
Boot Baffles are required and included with the Straight-Out Boot
Assembly.
Model 108 Straight-Through Tandem Systems do not use Feed
Restrictors.
1. Install boots on both feed bins. Be sure the outlets on the boots
are in line with the slotted tube anchors facing in the direction
the auger line will go. Figure 21 shows a typical
Straight-Through Tandem System.

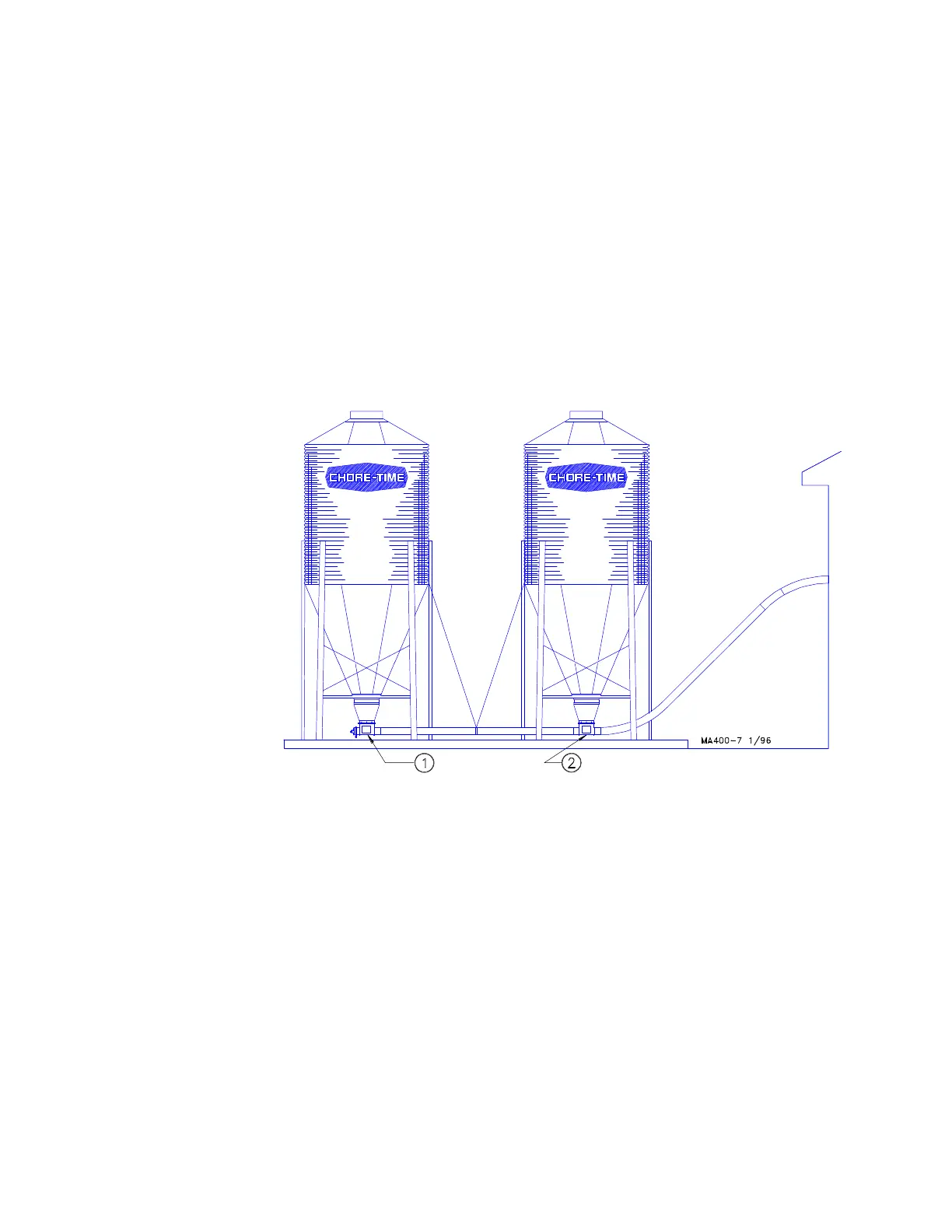

Figure 21. Model 108 Straight-Through Tandem.
Key Description
1 Straight-Out Boot on Terminal Bin
2 Straight-Thru Boot (w/Baffle) on Intermediate Bin
