Model 108 FLEX-AUGER Installation Manual
( 49 )

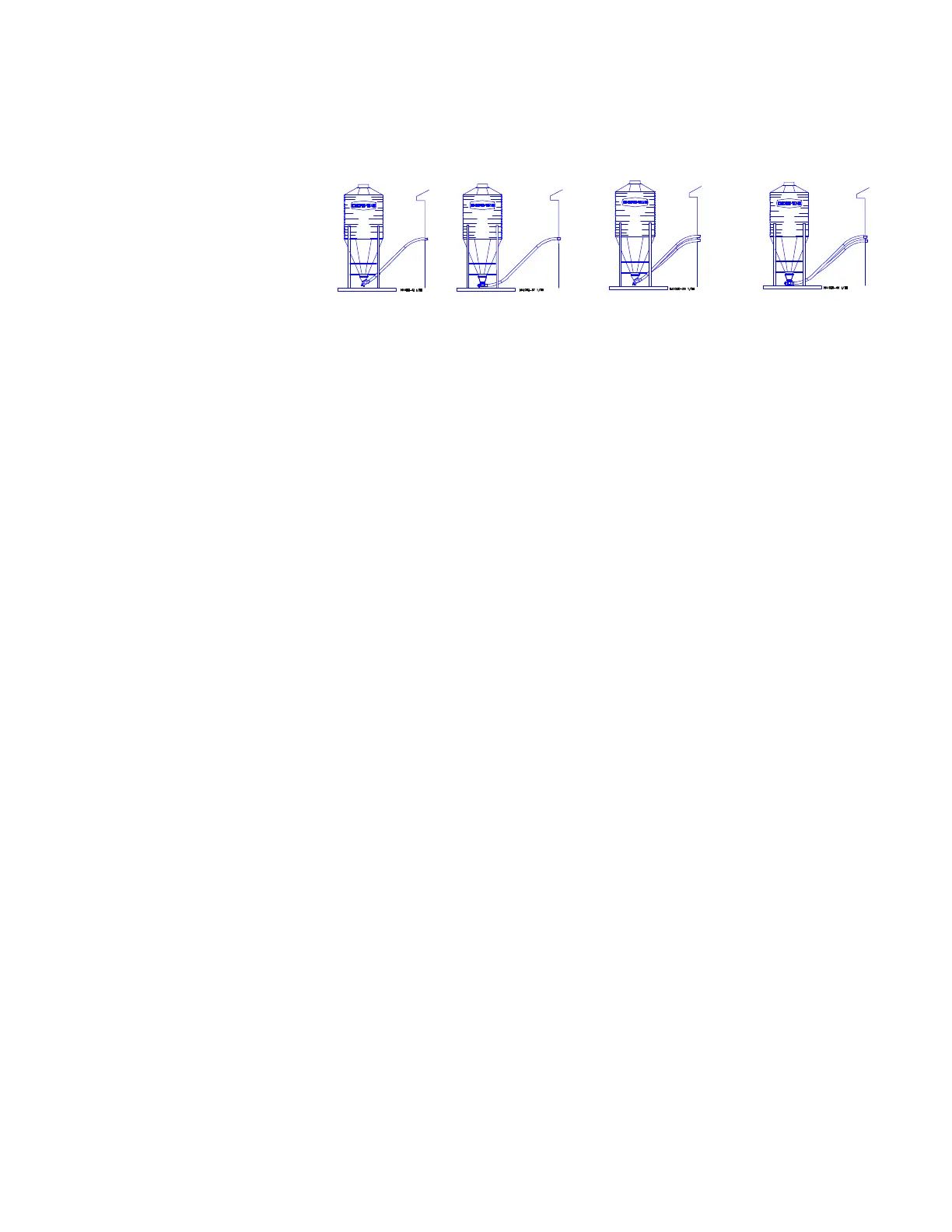

30 Degree Straight-Out 30 Degree Straight-Out
Item Description Boot System Single Boot System Twin Boot System Twin Boot System
-- Complete System 34339 34340 35625 35626
--
2
Lower Boot Assembly 34336 34341 35613 35612
1A 30 Degree Upper Boot 4347 - - - - 4347 - - - -
1B Straight Out Upper Boot - - - - 6093 - - - - 6093
2 Transfer Plate Assembly 4925 4925 4925 4925
3 Slide 4357 4357 4357 4357
4 Slide Shield 4876 4876 4876 4876
5 Chain 2128-1 2128-1 2128-1 2128-1
6 Ring 1706 1706 1706 1706
7 Neoprene Seal 34334 34334 34334 34334
8 Seal Ring 8117 8117 8117 8117
9 Tube Clamp (for STEEL systems) 34338 34338 34338 34338
9
3
Tube Clamp (for PVC systems) 14373 14373 14373 14373
10 Tube Insert 34337 34337 34337 34337
11 Boot Body Weldment 30386 30385 - - - - - - - -
12
5
Anchor Weldment 30311 - - - - 30311 - - - -
13
5
Bearing Cap Assembly 30314 30314 30314 30314
14
5
5/8" Set Collar 1386 1386 1386 1386
15
5
Safety Cap 29702 29702 29702 29702
16
5
Anchor Clamp 7703 7703 7703 7703
17
5
5/16-18 x 7/8 Socket Hd Cap Screw 6850-1 6850-1 6850-1 6850-1
18
1
Sealing Washer 8491 8491 8491 8491
19
1
5/16-18 Wing Nut 2146 2146 2146 2146
20 Baffle - - - - 14239 - - - - - - - -
21
1
Cover Weldment 6301 6301 6301 6301
22
1
Back Plate Assembly 6298 6298 6298 6298
23
5
Anchor Weldment - - - - 34369 - - - - 34369
25
4,3
Model 108 Connector 30277 30277 30277 30277
29
3
Tube Connector (for PVC systems) 34557 34557 34557 34557
30 Twin Boot Body Weldment - - - - - - - - 35617 35617
31 Center Baffle Plate - - - - - - - - - - - 35624
32 Baffle Weldment - - - - - - - - - - - - 35615
1
These components may be ordered under Chore-Time Part No. 6197 Clean-Out Cover Assembly.
2
Items 2 through 32 make up the Lower Boot Assemblies.
3
These items are not included in the package and must be ordered separately.
4
The Model 108 Connector may be ordered with (2) 34338 Tube Clamps under Chore-Time Part No. 34419 Connector
w/Clamps.
5
Items 12 - 17 may be ordered as an Anchor & Bearing Assembly (Restricted) under Chore-Time Part No. 35767. Items
13 - 17 and item 23 may be ordered as an Anchor & Bearing Assembly (Unrestriced) under Chore-Time Part No. 35766.
Model 108 Boot Components
The Item numbers below are associated with the parts list drawing on page 48.
