CHWS PRORAPID - Page 8

8
| INSTALLATION MANUAL PRORAPID

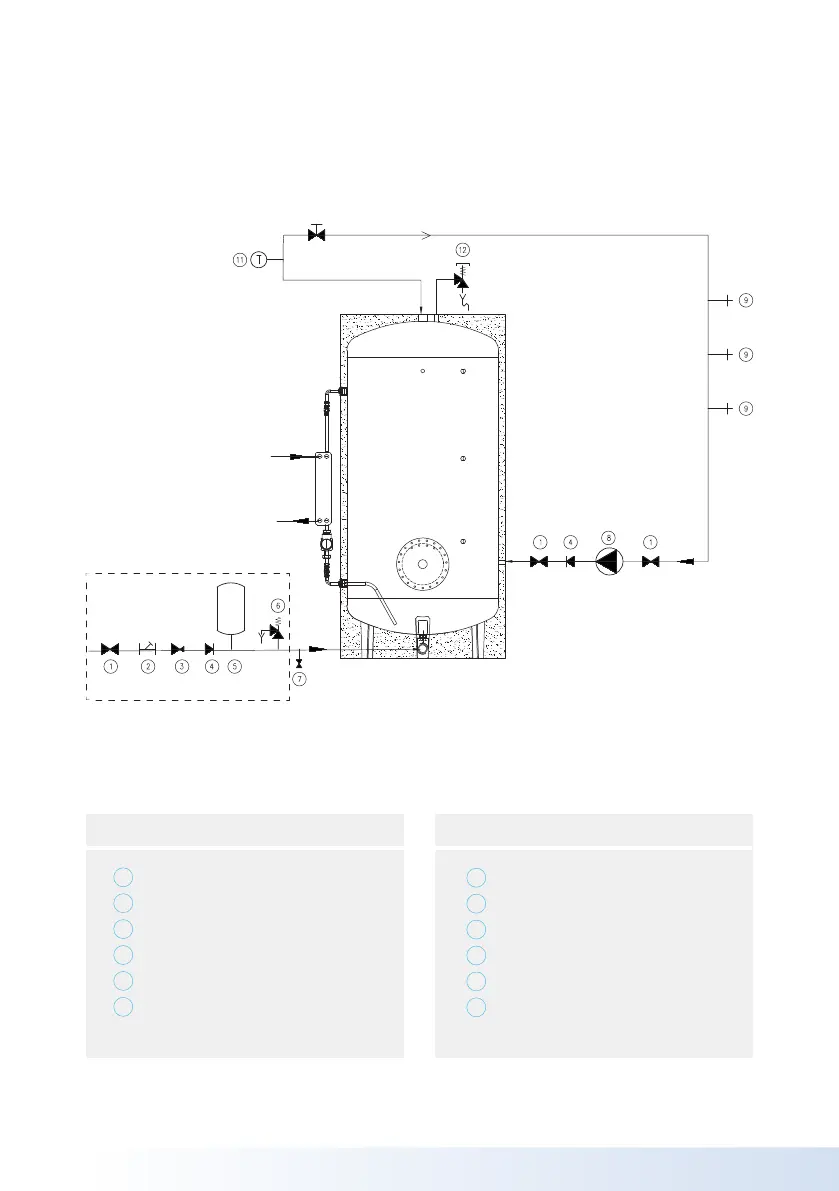

UNVENTED KIT
COLD WATER INLET
LTHW RETURN
LTHW INLET
HOT WATER DHW OUTLET
SECONDARY RECIRCULATION
Appendix C
Drain
Circulation pump (optional)
Draw-o points
Service stop valve
Temperature gauge (optional)
T&P valve
Isolating valve
Strainer
Pressure reducing valve
Non return valve
Expansion vessel
Safety relief valve
Key
1
2
3
4
5
6
7
8
9
10
11
12
