CHWS PRORAPID - Installation

17
INSTALLATION MANUAL PRORAPID |

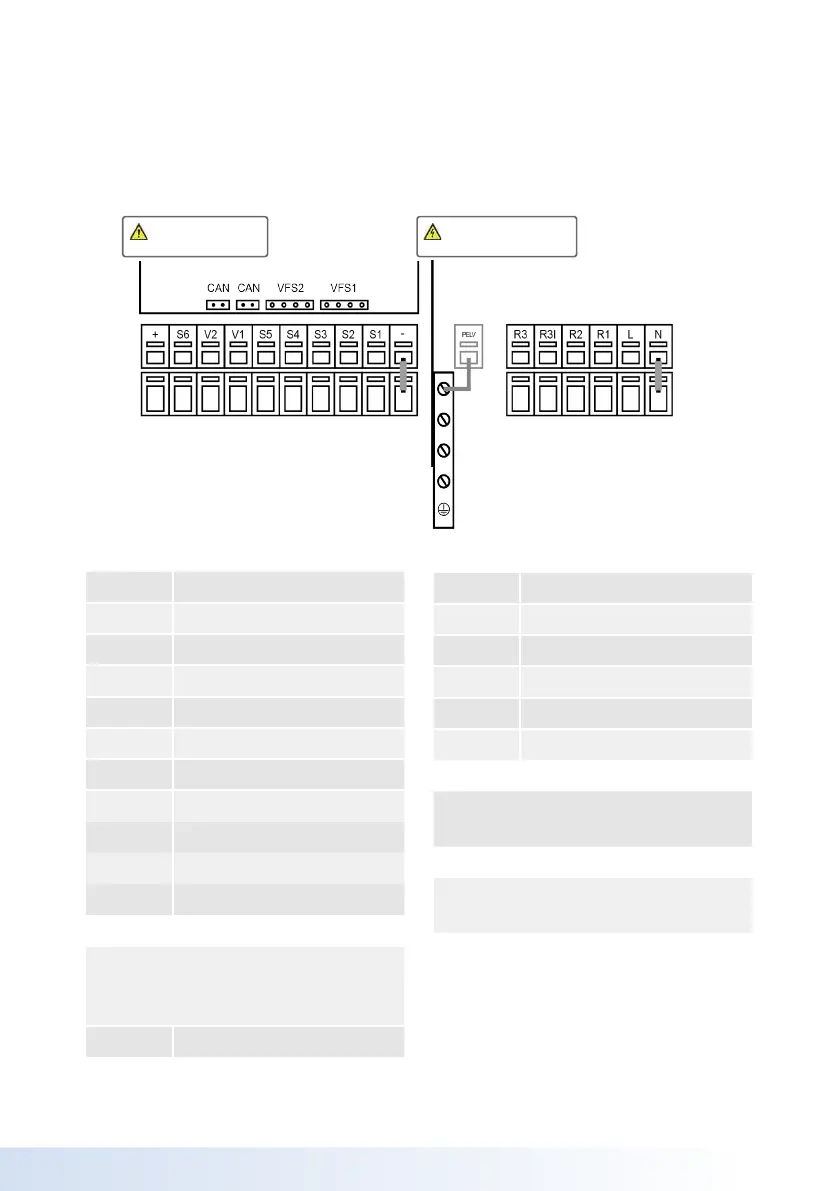

Terminal: Connection for:
S1 Storage top
S2 Storage bottom
S3 Plate outlet temp
S4* Primary Flow Temperature
S5 Not used
V1 Not used
V2 Not used
S6 Not used
+ 12V Power supply
VFS1 Not used
VFS2 Not used
The connection of the ground wire is
made at the lower gray terminal
block.
CAN Not used
Terminal: Connection for:
S1 Neutral conductor N
S2 Phase conductor L
S3 240vac Switch Live Burner
S4* Not in use
S5 Not in use
V1 Secondary pump live
The neutral conductor N must be
connected to the N terminal block.
The PE protective conductor must be
connected to the PE metal terminal block!
Installation
Electrical Terminals
Low voltages
max. 12 VAC / DC
Mains voltages
100 - 240 VAC, 50 - 60 Hz
