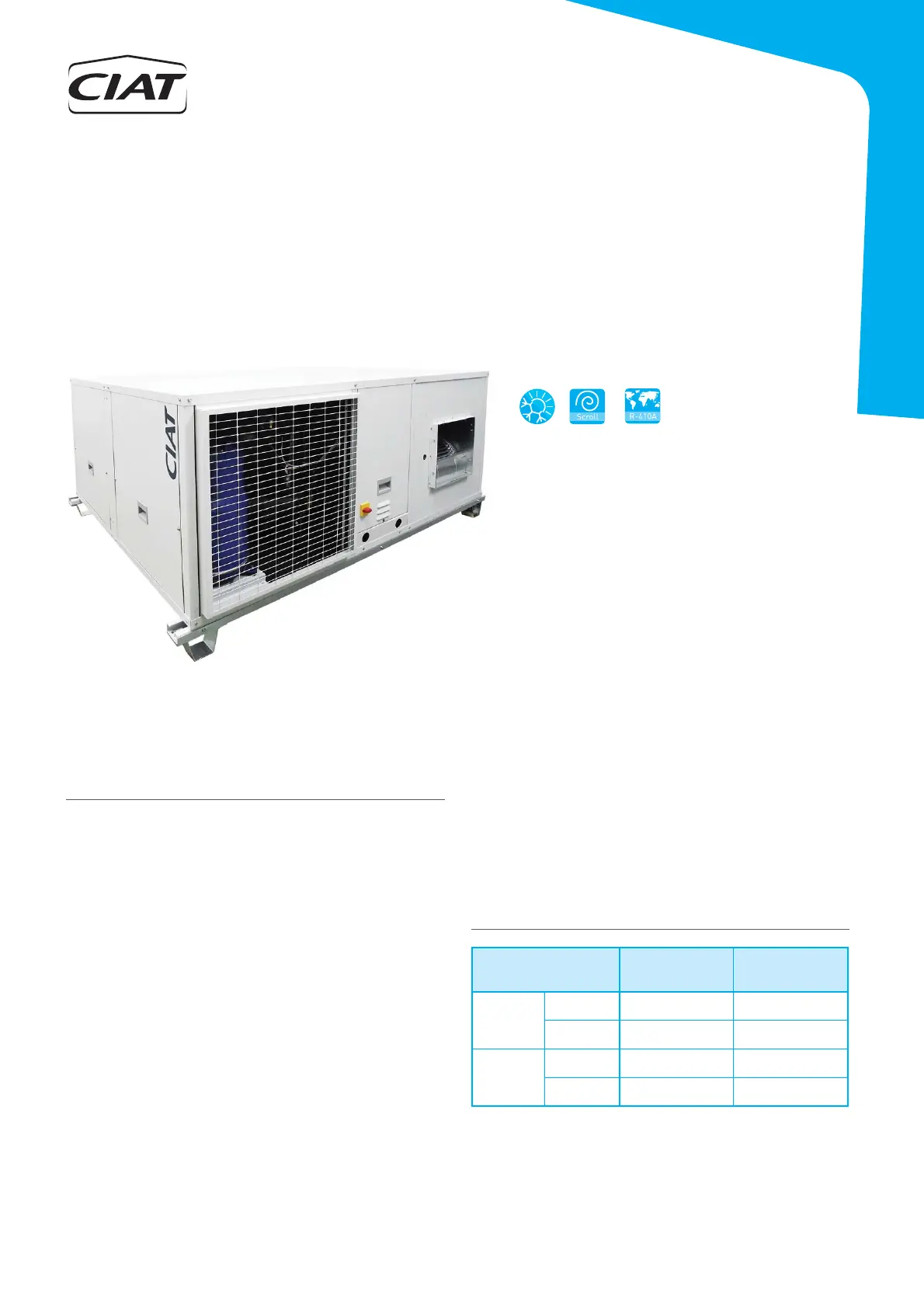

Horizontal package air conditionners
HCompact2 HA
1. INTRODUCTION
The HCompact2 HA heat pumps and cooling unit are packages air to
air units, of horizontal compact construction, made for operation indoors.
They are equipped with centrifugal fans, air coils, scroll compressor
and electronic control with microprocessor, optimized components for
the R-410A refrigerant.
Are appropriate for air conditioning applications in medium power in
offi ces, commercial and industrial spaces where the facade aesthetics
must be preserved.
• HCompact2 RHA Series: Air to air cooling autonomous units.
• HCompact2 IHA Series: Reversible air to air heat pump autonomous
units.
Cooling capacity:
Heating capacity:
12,5 to 35,9 kW
14,2 to 41,0 kW
The units comply with standards: EN 60-204 - EN 378-2, and directives:
Machinery 2006/42 EC - EMC 2004/108/EC - LVD 2006/95 EC - PED
14/068 EC (Category 2).
After manufacturing, all units are charged with refrigerant and
are tested at the factory, verifying the correct operation of all their
components within the operating range for which they are intended.
Those in charge of the installation, start-up, use, and maintenance of
the unit must know the instructions contained in this brochure and the
specifi c technical characteristics of the installation place.
2. OPERATION LIMITS
With control of operation condensation pressure up to -10ºC.
When the outdoor temperature usually reaches less than 5ºC WB
it is recommended installing a support element.
Conditions
air inlet
Cooling Heating
Indoor coil
Minimum
14 ºC WB 10 ºC
Maximum
22 ºC WB 27 ºC
Outdoor
coil
Minimum
12 ºC -6 ºC BH
Maximum
48 ºC 15 ºC WB
