TRANSMIG 200i
INSTALLATION, OPERATION AND SETUP 3-12 Manual 0-5209
3.08 Installing Spool (300mm diameter)
As delivered from the factory, the unit is fitted with a Wire Spool Hub which accepts a Spool of 300mm diameter.
Remove the locking pin from the spool hub.
Install the wire spool over the spool hub, locating the hole in the spool, with the alignment pin on the spool hub.
Insert the locking pin back into the spool hub.
Art # A-10424
Spool Hub Aligenment Pin

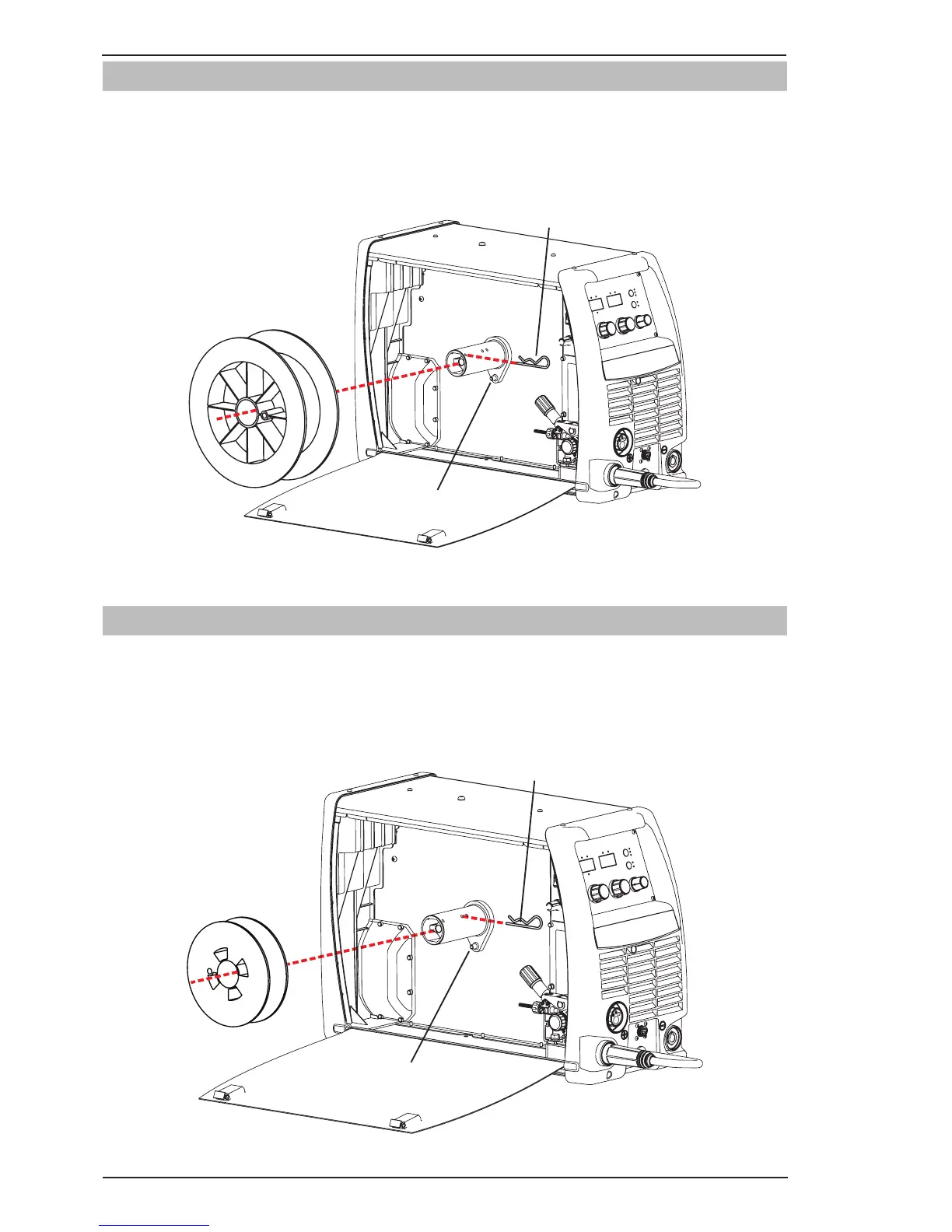

Figure 3-6: 300mm Spool Installation
3.09 Installing Handispool (200mm diameter)
Remove the locking pin from the spool hub.
Install the Handi Spool over the spool hub, locating the hole in the Handi Spool, with the alignment pin on
the Spool Hub.
Insert the locking pin back into the spool hub, in the “rear” position, as shown, ensuring the wire spool is
firmly secured in position.
Spool Hub Aligenment Pin
Art # A-10425
Figure 3-7: 200mm Handispool Installation
