CIGWELD 200i - Volt-Ampere Curves

TRANSMIG 200i
POWER SOURCE PROBLEMS AND ROUTINE SERVICE REQUIREMENTS 5-6 Manual 0-5209
5.05 Volt-Ampere Curves
Voltage-Amperage Curves shows maximum voltage and amperage output capabilities of welding power source.
Curves of other settings fall between curves shown.
Art # A-10435_AB

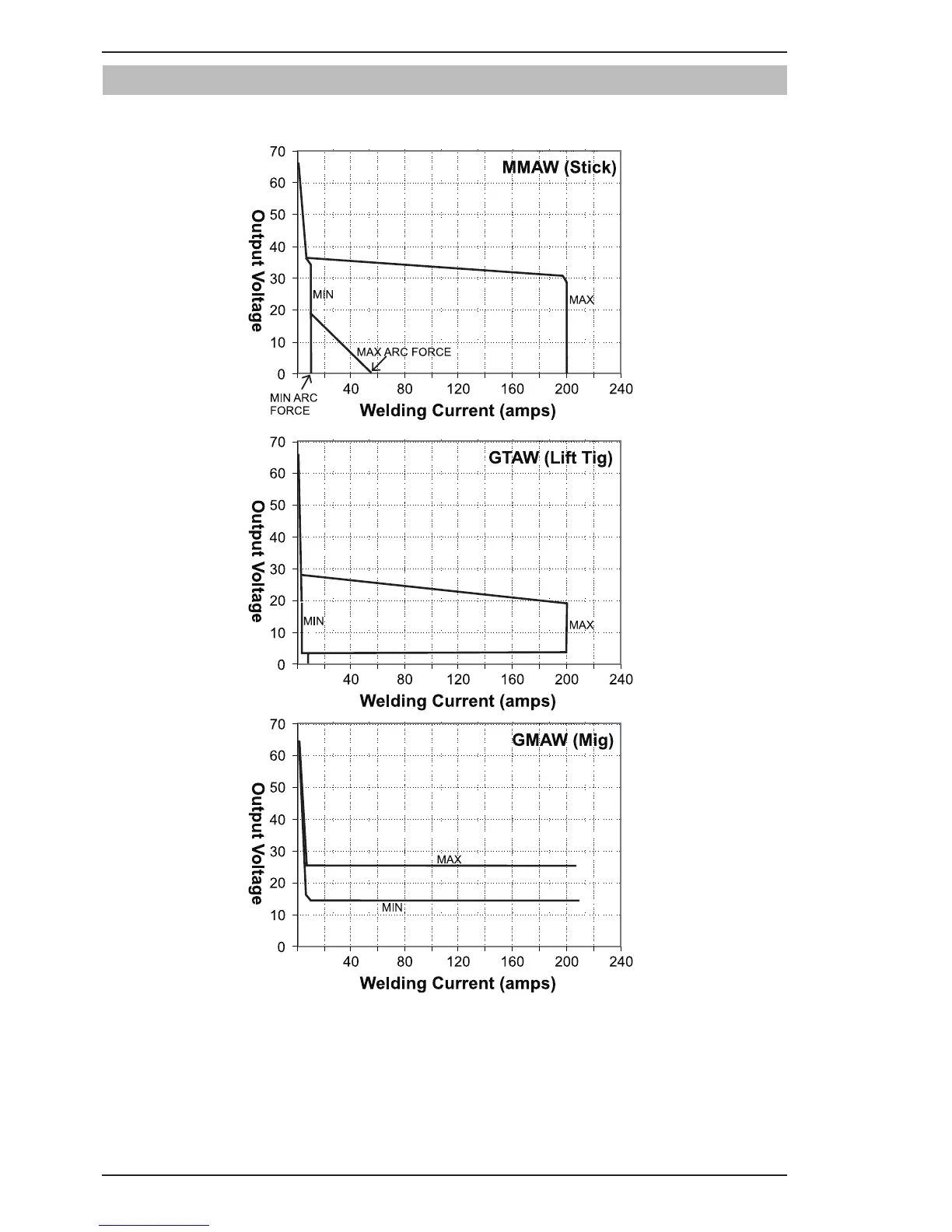

Figure 5-1: Transmig 200i Volt-Ampere Curves
