TRANSMIG 200i
Manual 0-5209 6-1 KEY SPARE PARTS
SECTION 6:
KEY SPARE PARTS

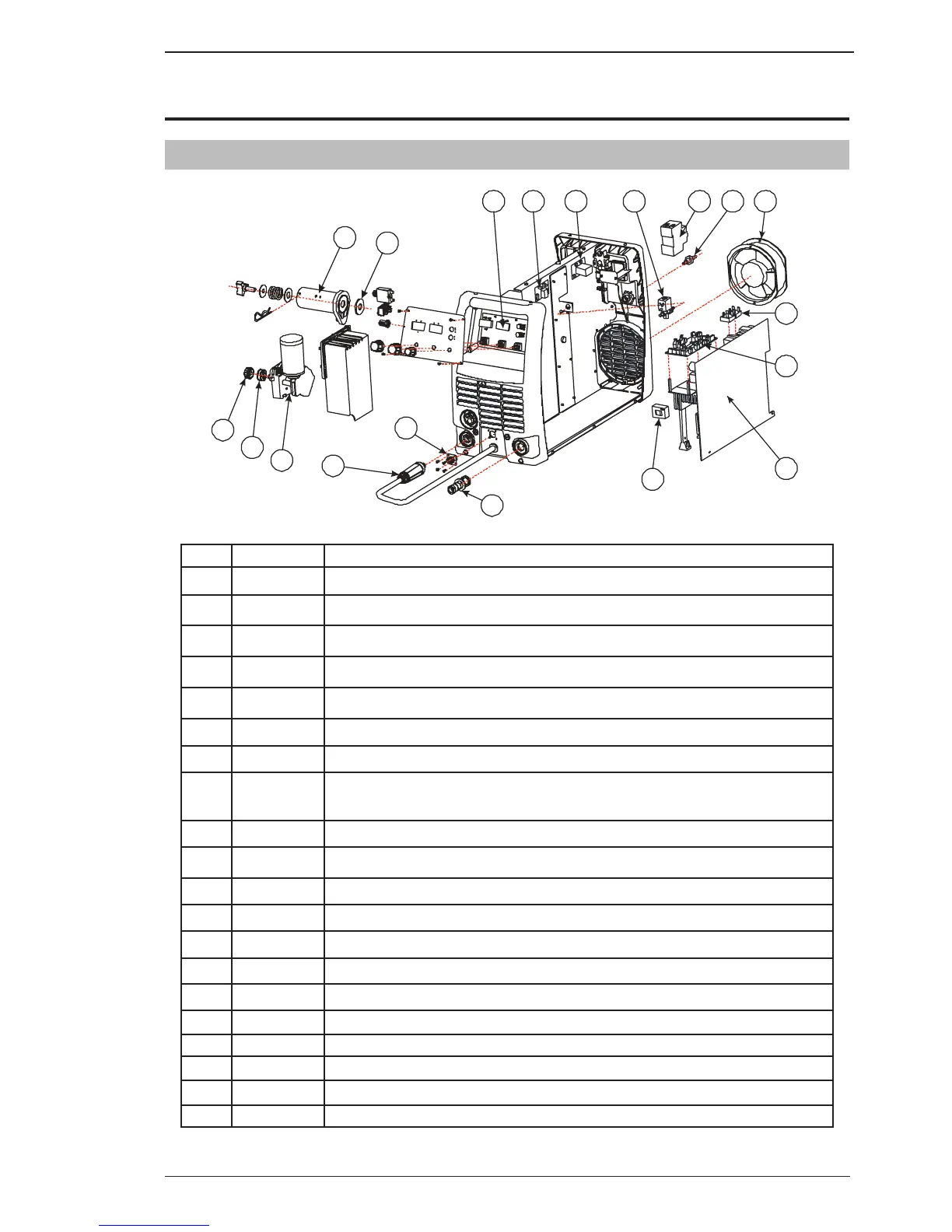

6.01 Power Source
1
2
3
6
8
7
9
10
11 12
14
13
15
16
17
19
20
4 5
Art # A-10436
Item Part Number Description
1 W7005600 PCB Power
2 W7005601 PCB Control
3 W7005602 PCB Display
4 W7005607 PCB Spool Gun
5 W7004902 PCB EMC Filter
6 W7005603 Wiredrive Assembly
7 W7004906 Feed Roll Retaining Thumbscrew
8 7977036
Feed Roll 0.6/0.8mm V groove (fitted as standard)
(Refer to options and accessories table for other feed rolls available).
9 W7005604 Fan
10 W7003010 Input Rectifier (2 required)
11 W7004908 Gas Solenoid Valve Assembly
12 W7005605 Gas Inlet Fitting
13 W7004909 Dinse Socket 50mm²
14 704461 Dinse Plug Male 50mm²
15 W7003036 Control Socket 8 pin (Note that 8 pin control plug part number is UOA706900).
16 W7005606 Supply Circuit Breaker / Mains Supply Switch
17 W7004911 CT, Output
18 W7004913 Shielding Gas Hose Assembly (not shown)
19 7976411 Friction Washer for Spool Hub
20 702337 Spool Hub
Table 6-1 Key Spare Parts
