Cirrus Design Section 7
SR22T Systems Description
P/N 13772-005 7-17P/N 13772-005 7-17

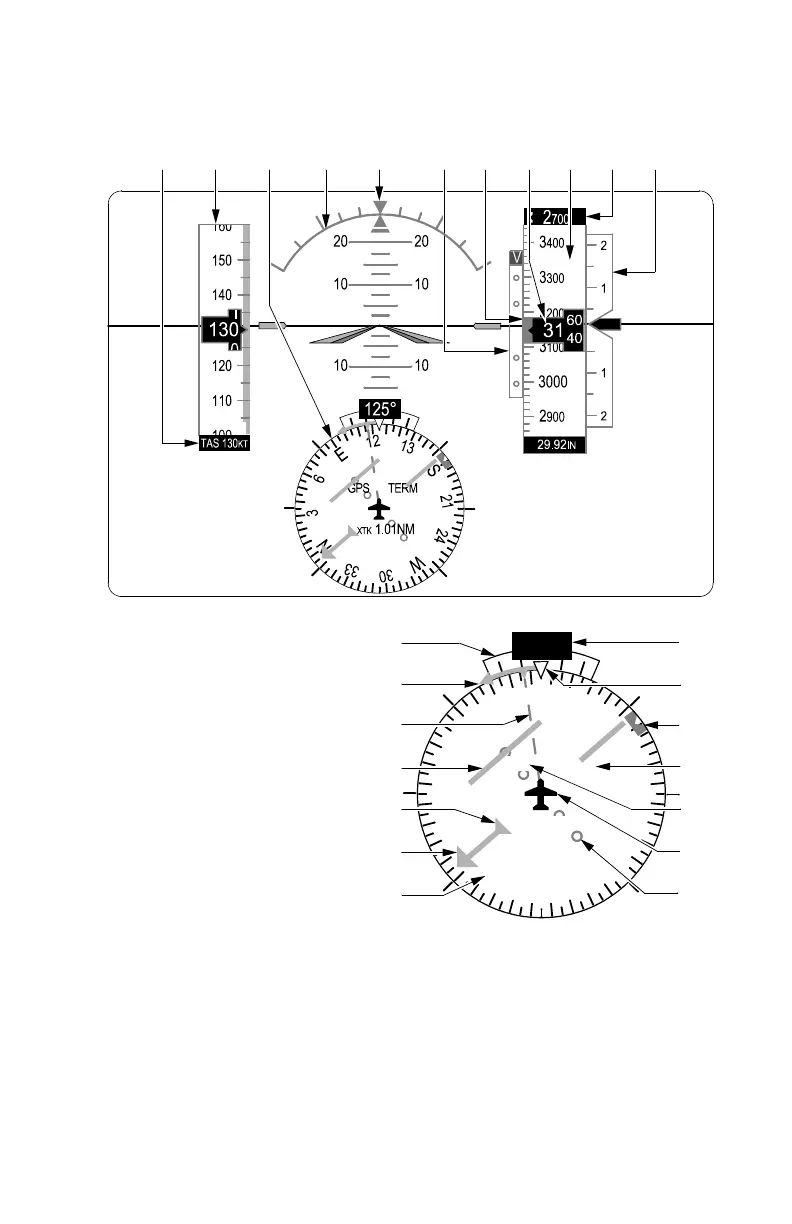

Figure 7-5
Flight Instruments
LEGEND
1. True Airspeed
2. Airspeed Indicator
3. Horizontal Situation Indicator (HSI)
4. Attitude Indicator
5. Slip/Skid Indicator
6. Vertical Deviation Indicator (VDI)
7. Selected Altitude Bug
8. Current Altitude
9. Altimeter
10. Selected Altitude
11. Vertical Speed Indicator (VSI)
12. Current Heading
13. Lubber Line
14. Selected Heading Bug
15. Flight Phase
16. Navigation Source
17. Aircraft Symbol
18. Course Deviation Scale
19. Rotating Compass Rose
20. Course Pointer
N
W
S
E
6
3
3
3
3
0
2
4
2
1
1
3
1
2
125°
XTK
1.01NM
21. To/From Indicator
22. Course Deviation Indicator
23. Current Track Indicator
24. Turn Rate/Heading Trend Vector
25. Turn Rate Indicator
SR22_FM07_2790
12345 6789
10 11
12
13
14
15
16
17
1819
20
21
22
23
24
25
TERM
GPS
HSI DETAIL
