Cirrus SR22T - Page 262

7-56 P/N 13772-005
Section 7 Cirrus Design
Systems Description SR22T

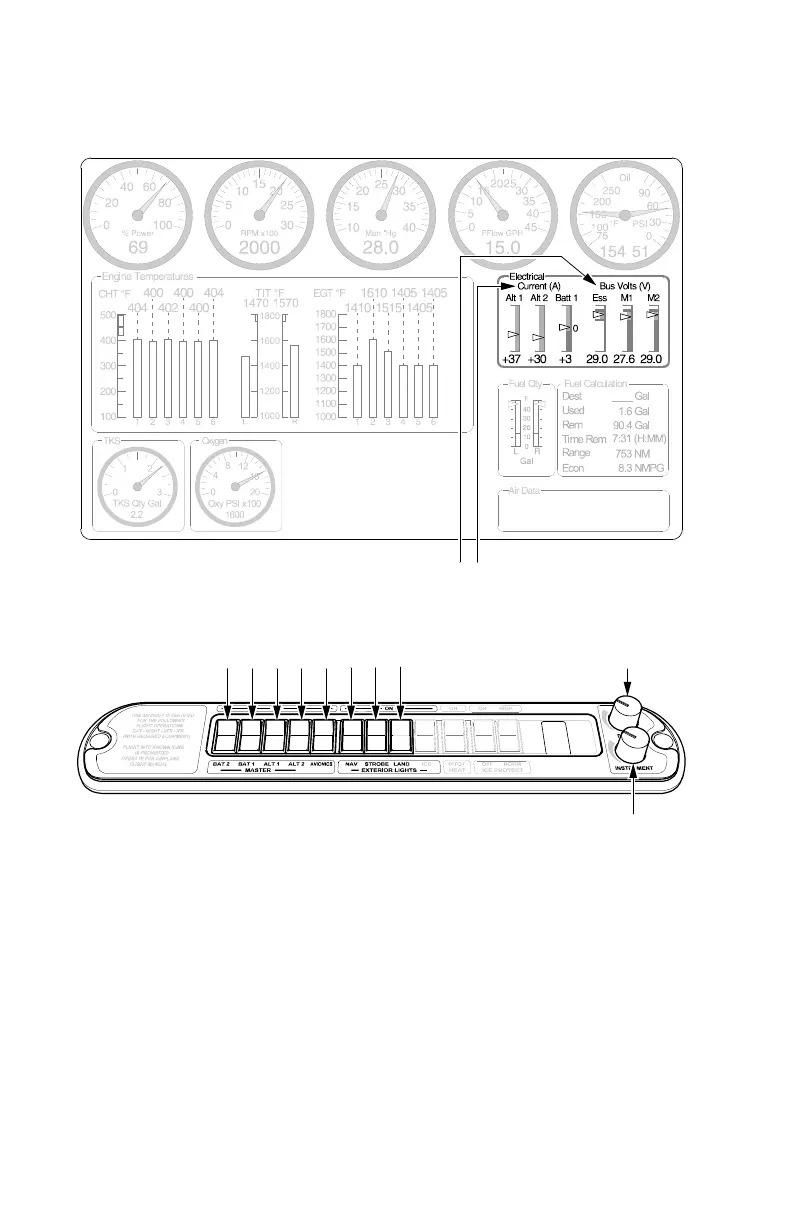

Figure 7-12
Electrical / Lighting Controls and Indicating
LEGEND
1. Essential & Main Bus Voltage
2. Alternator & Battery Current
3. Battery 2
4. Battery 1
5. Alternator 1
6. Alternator 2
Density Alt 8000 Ft
Oat 31°F -1°C (ISA +0°C)
1
34 76
Electrical System Indication
2
7. Avionics
8. Navigation
9. Strobe
10. Landing Light
11. Instrument Dimmer
12. Panel Dimmer
SR22_FM07_3257A
Electrical and Lighting Controls
589 10
11
12
