Cirrus SR22T - Page 276

7-70 P/N 13772-005
Section 7 Cirrus Design
Systems Description SR22T

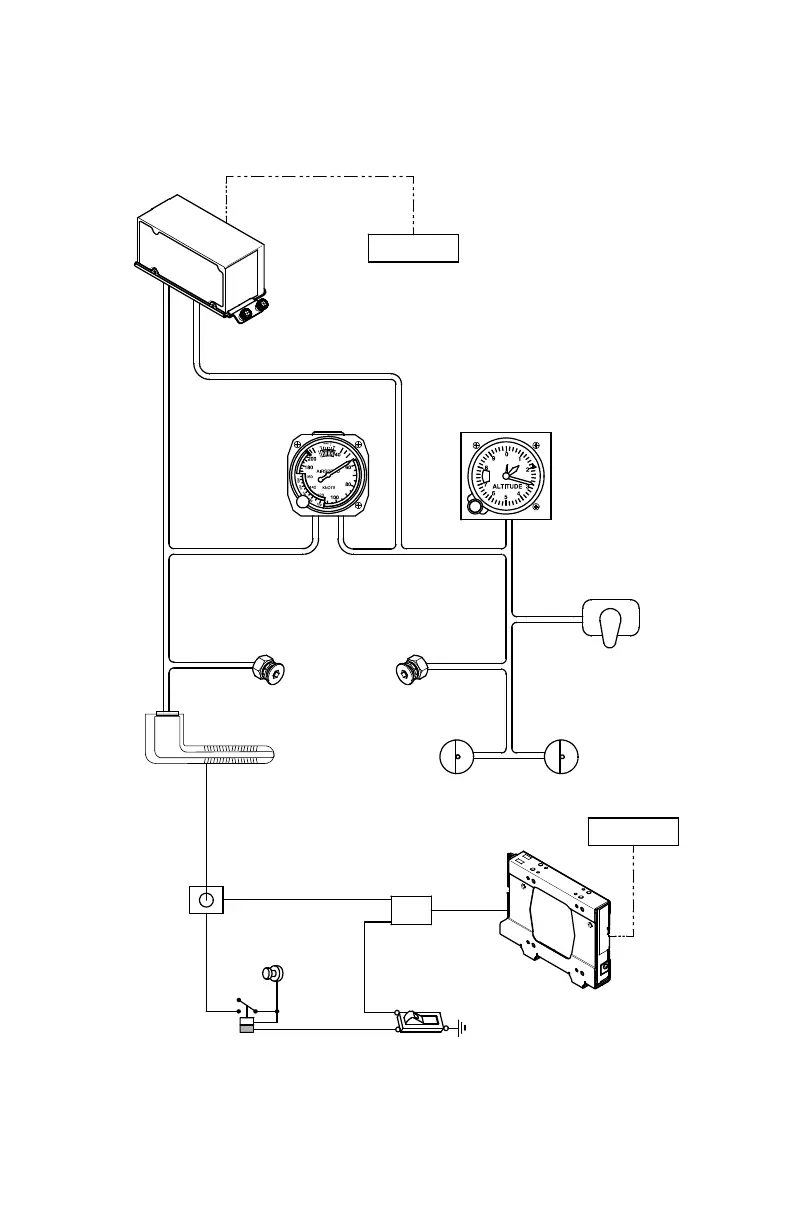

Figure 7-16
Pitot-Static System
STATIC
BUTTONS
PITOT HEAT
PFD Air Data
SR22_FM07_2794A
AIRSPEED
INDICATOR
PITOT MAST
Annunciation
PITOT-STATIC
WATER TRAPS
ALTERNATE
STATIC
AIR SOURCE
ALTIMETER
ENGINE AIRFRAME UNIT
LOGIC
CURRENT
SENSOR
HEATER
7.5A
PITOT
HEAT
CB
PITOT HEAT SW
AIR DATA COMPUTER
Original Issue
