Cirrus SR22T User Manual

Cirrus Design Section 7
SR22T Systems Description
P/N 13772-005 7-75P/N 13772-005 7-75

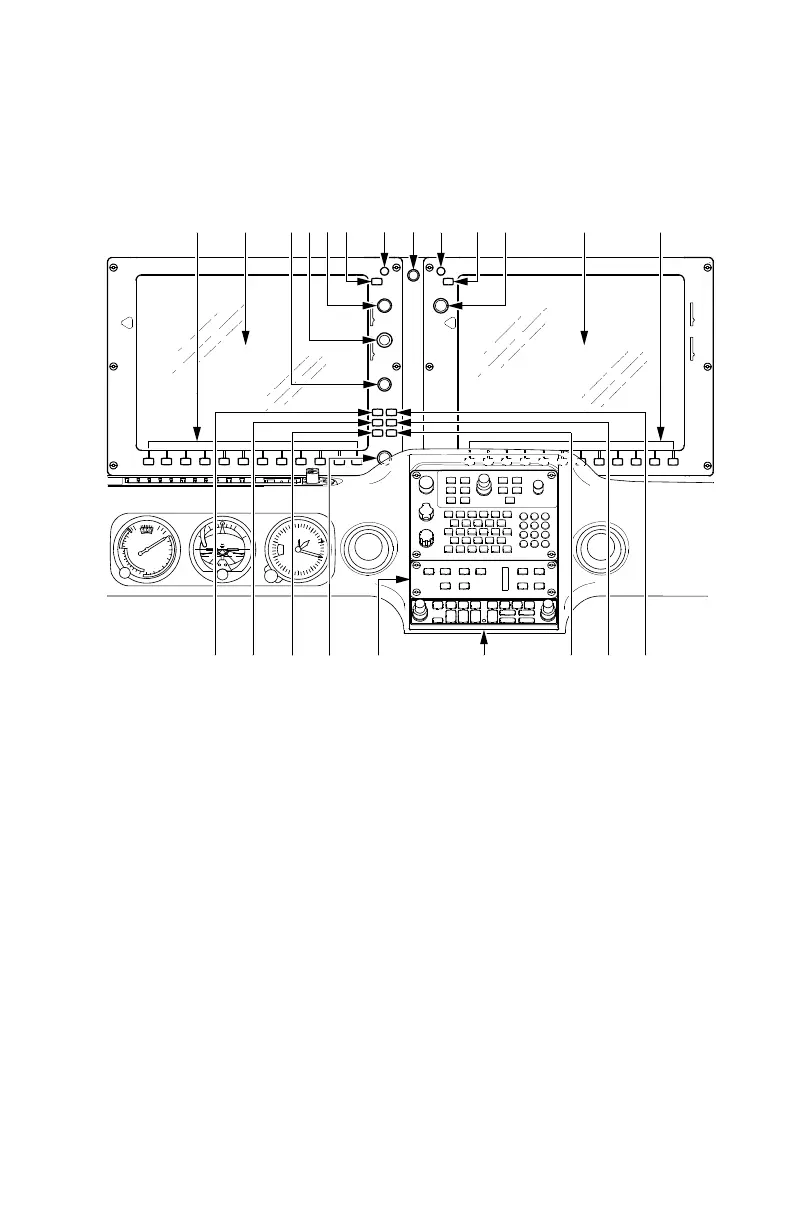

Figure 7-18
Perspective Integrated Avionics System (Sheet 1 of 2)
1 11
Legend
1. Soft Keys
2. PFD
3. PFD Range/Pan Joystick
4. Barometric Pressure
5. COM Transceiver Selection & Tune
6. COM Frequency Transfer
(& 121.5 Emer Tune)
7. COM Volume and Squelch
8. Display Backup Selection
9. NAV and ID Audio Volume
10. NAV Frequency Transfer
2
13 14 15
3456 7 8 9 10 12
19 20 21
1
17 1816
SR22_FM07_3575
11. NAV Transceiver Selection & Tune
12. MFD
13. PFD Direct-to-Course
14. PFD Flight Plan Page
15. PFD Clear/Cancel Information
16. PFD Flight Management System
17. GFC 705 Mode Controller
18. Audio Panel
19. PFD Enter Key
20. PFD Procedures
21. PFD Menu Key
Original Issue

Cirrus SR22T Specifications

General

Manufacturer	Cirrus Aircraft
Engine	Continental TSIO-550-K
Horsepower	315 hp
Max Takeoff Weight	3, 600 lbs
Service Ceiling	25, 000 ft
Cabin Width	49 in
Cabin Height	50 in
Seating Capacity	4
Avionics	Cirrus Perspective+ by Garmin
Category	Single-engine piston aircraft
Propeller	Hartzell 3-blade composite
Wingspan	38 ft 4 in
Length	26 ft
Height	8 ft 11 in
Maximum Cruise Speed	213 KTAS
Fuel Capacity	92 gallons
Stall Speed	64 knots
Safety Features	Cirrus Airframe Parachute System (CAPS)
Cruise Speed	183 knots
