Cirrus Design Section 9
SR22 / SR22T Supplements
P/N 13772-135 19 of 30

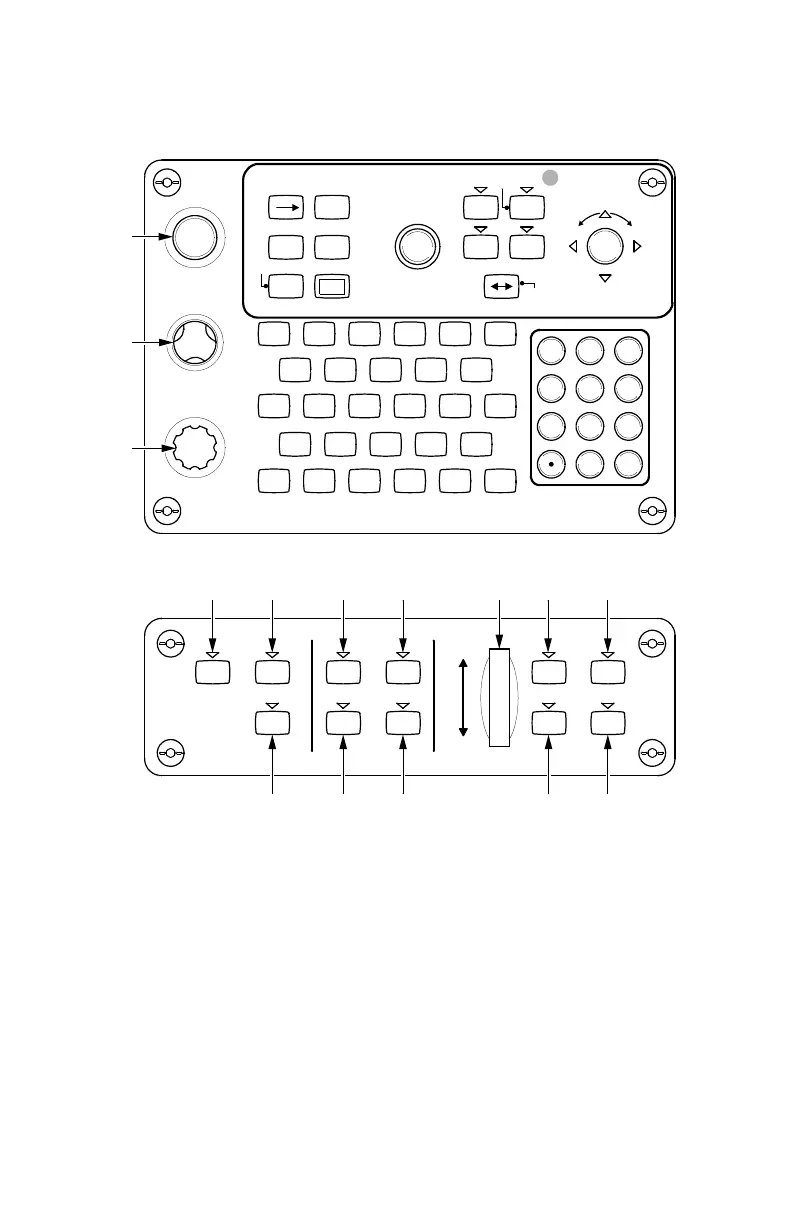

Figure -2
FMS Keyboard and GFC 705 AFCS Mode Controller
3
478
12 1311
69
10 14 15
HDG NAV
AP LVL IAS ALT
APR
FD YD VS
VNV
UP
DN
Flight Management System Keyboard
GFC 705 Mode Controller
RANGE
PUSH
-
+
PAN
HDG
CRS
ALT SEL
P"6KB,
AB
CD
E
F
GH
I
J
K
L
M
NO
P
Q
R
W
S
X
T
Y
U
Z
V
SPC BKSP
123
456
789
0
+/-
EMERG
CRSR/1-2
PUSH
FMS/XPDR
COM/NAV
IDENT
DFLT MAP
PUSH SYNC
PUSH CTR
PUSH SYNC
D
FPL
CLR
MENU
PROC
ENT
FMS
XPDR
COM NAV
Legend
1. Heading Selection
2. Course Selection
3. Altitude Selection
4. Heading Select Mode
5. Navigation Mode
6. Approach Mode
7. Autopilot
8. Wings Level
1
9. Flight Director
10. Yaw Damper (optional)
11. Pitch Wheel
12. Indicated Airspeed Hold
13. Altitude Hold
14. Vertical Speed Mode
15. Vertical Navigation Mode
2
5
SR22_FM09_2921
Revision 03: 12-14-10
