Cirrus SR22T - Page 489

P/N 13772-151 47 of 52
Cirrus Design Section 9
SR22T Supplements
LEGEND
1. Anti-Ice System Indication
2. Ice Inspection Lights
3. Pitot and Stall Vane Heat
4. Anti-Ice System ON / OFF Switch
0
1
2
3
4
L
Range 79 NM
R
2.6
3.8
578
1
5. NORM / HIGH Mode Switch
6. MAX Mode Push Button
7. Pump Backup Switch
8. Wind Shield Push Button
SR22_FM09_2983
Bolster Panel
234 6
ENGINE ANTI-ICE DCLTR ASSIST FUEL
Anti Ice - TKS
Time Rem (H:MM)
Max 0:31
High 1:03
Norm 2:06
Gal
NOTE
Illustration depicts system
during Auto Tank Mode with
LH and RH tanks ON while
operating in MAX mode.

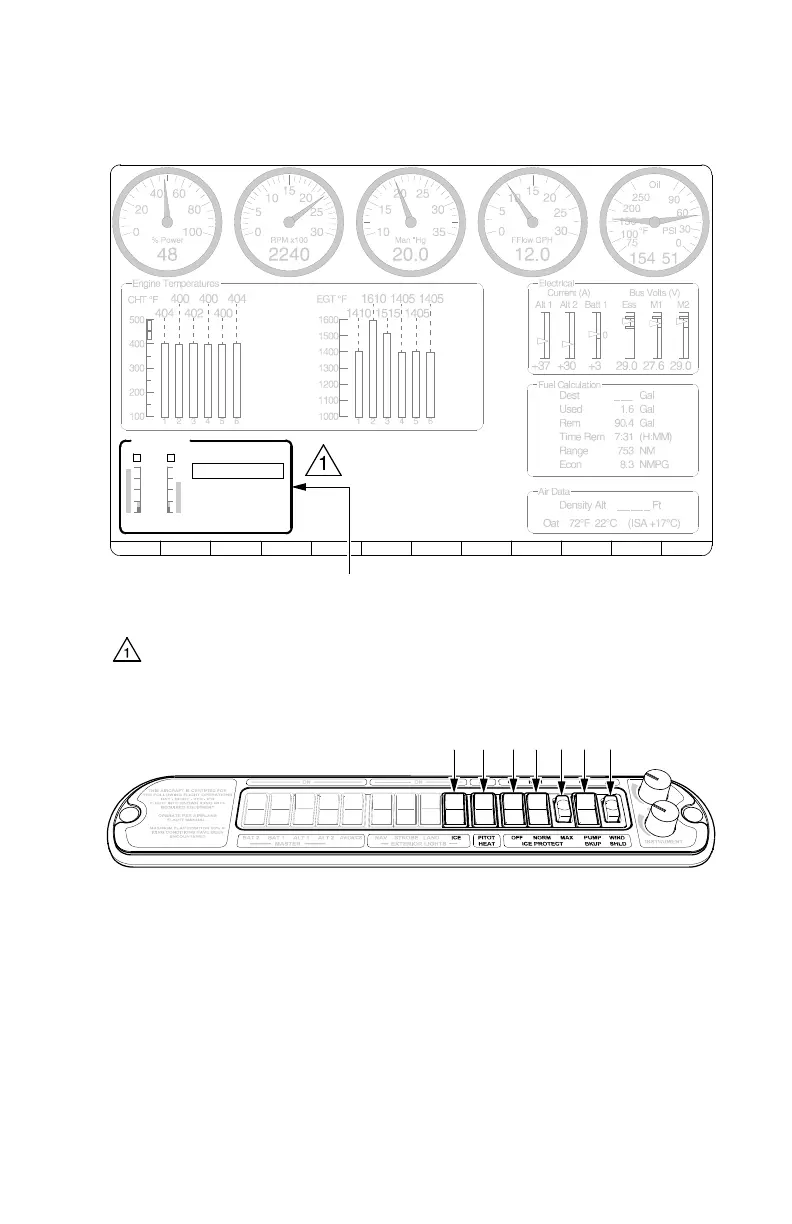

Figure -3
System Indication and Switching
Original Issue: 02-01-13
