Chapter 8 Examples of CSS SSL Configurations
8-22
Cisco Content Services Switch SSL Configuration Guide
OL-5655-01

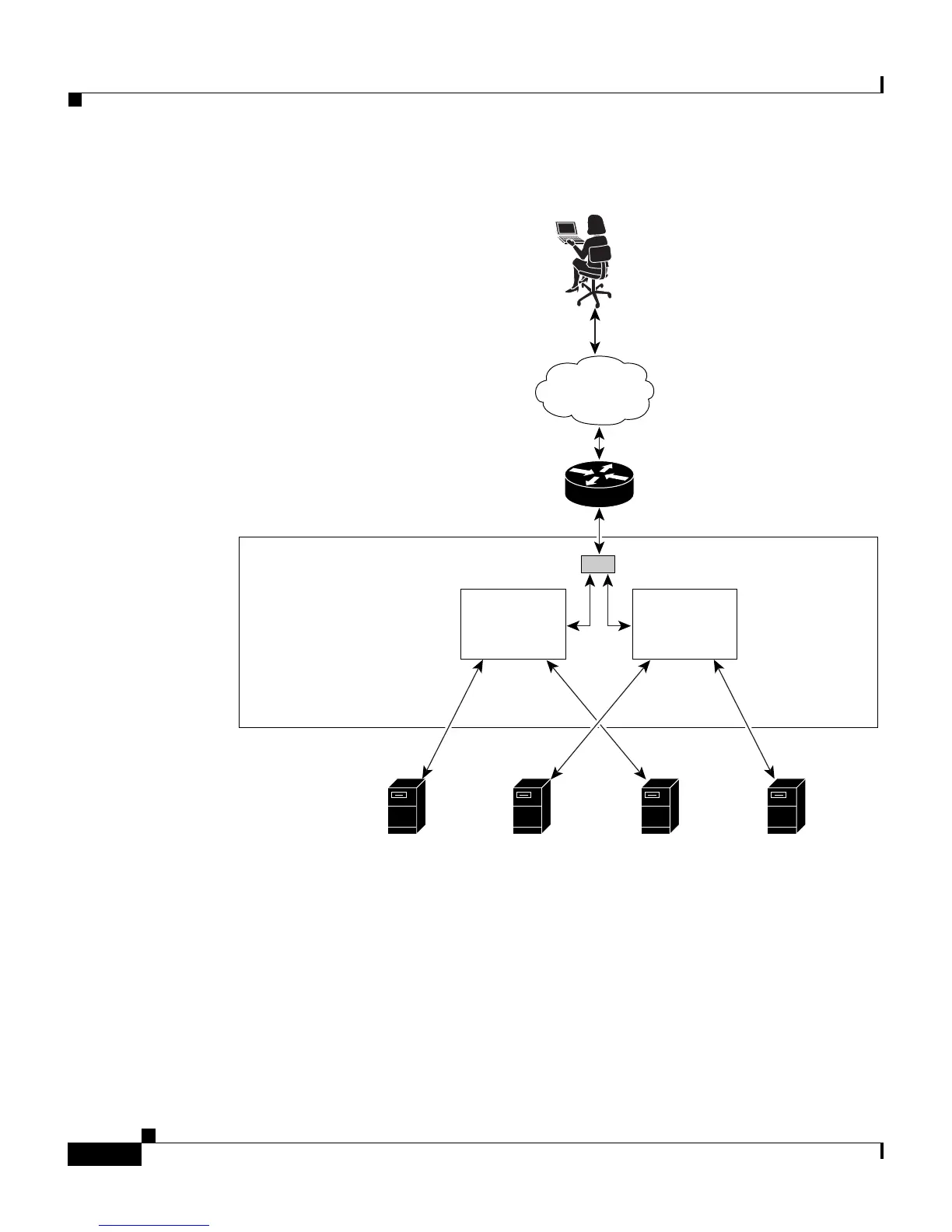

Figure 8-7 SSL Initiation Between a CSS and Four Data Centers
!!*************************** GLOBAL ***************************
ssl associate rsakey rsakey_association rsakey.pem
ssl associate cert rsacert_association rsacert.pem
ftp-record acct-ftp 192.168.7.241 root des-password
ig5haaufqbnfuarb/tmp
!************************* INTERFACE *************************
interface 1/1
bridge vlan 10
119624
Client
Intranet/DMZ
Client IP Address
10.81.27.9
Source = 10.81.27.9
Destination = 172.16.1.100
VIP = 172.16.1.100
Layer 5 HTTP Rule
SSL (slot 2)
Acceleration
Module 1
Source = 10.81.27.9
Destination = 192.168.7.10
Encrypted text
CSS 11506
Data Center 1
192.168.7.10
Clear text
Clear text
SSL (slot 3)
Acceleration
Module 2
Data Center 2
192.168.7.20
Data Center 3
192.168.7.30
Data Center 4
192.168.7.40
