Cisco 11503 - CSS Content Services Switch

Chapter 8 Examples of CSS SSL Configurations
8-26
Cisco Content Services Switch SSL Configuration Guide
OL-5655-01

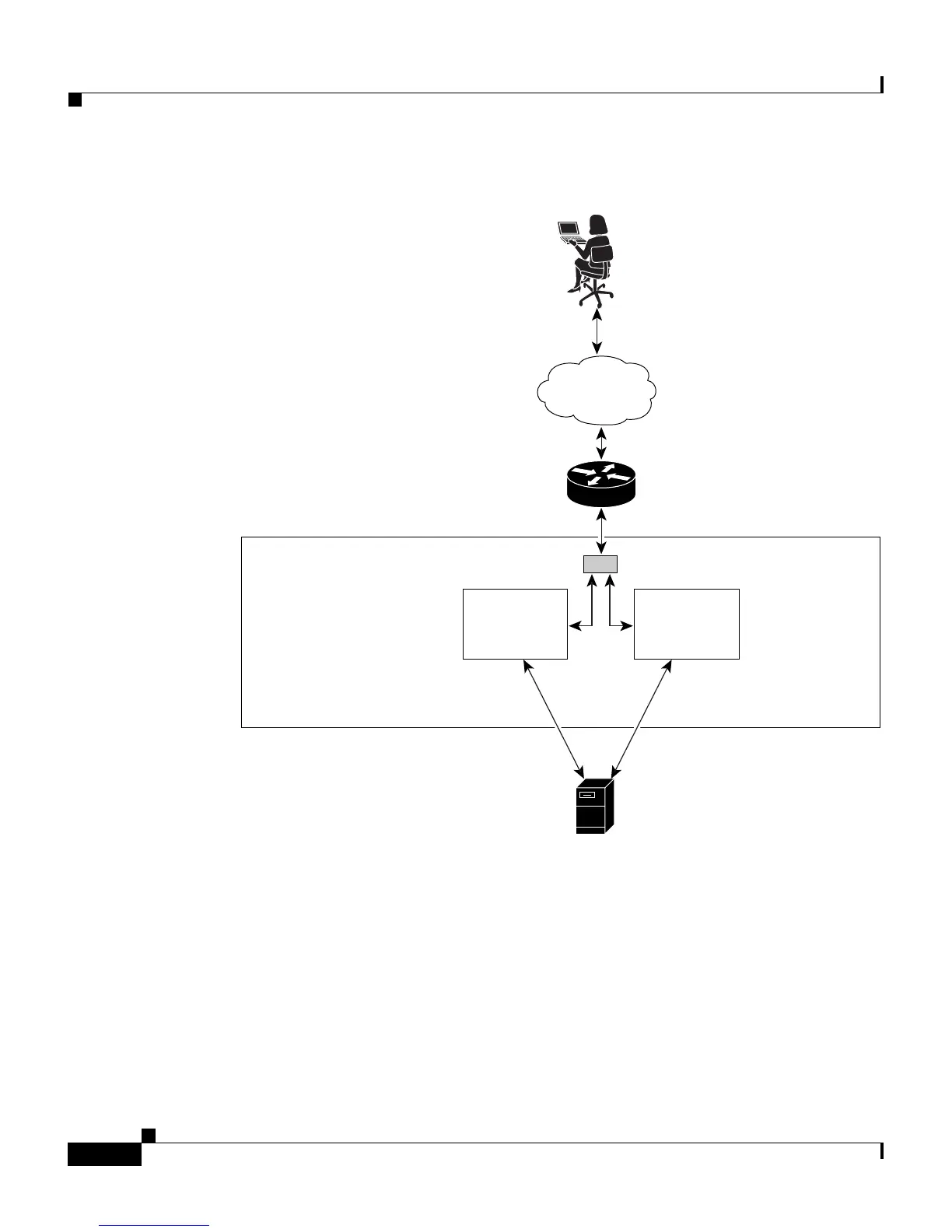

Figure 8-8 SSL Initiation Between a CSS and One Data Center
!*************************** GLOBAL ***************************
ssl associate rsakey rsakey_association rsakey.pem
ssl associate cert rsacert_association rsacert.pem
ftp-record acct-ftp 192.168.7.241 root des-password
ig5haaufqbnfuarb/tmp
ftp-record config 192.168.1.241 root des-password 4f1bxangrgehjgka
/users/rclement/ssl-init
119625
Client
Intranet/DMZ
Client IP Address
10.81.27.9
Source = 10.81.27.9
Destination = 172.16.1.200
VIP = 172.16.1.200
Layer 5 HTTP Rule
SSL (slot 2)
Acceleration
Module 1
Source = 10.81.27.9
Destination = 192.168.7.10
Encrypted text
CSS 11506
Data Center
192.168.7.10
Clear text
Clear text
SSL (slot 3)
Acceleration
Module 2
