Chapter 4 Building the Lighting Assembly
Parts List
Step 2 Attach the left and right outer Support brackets (from Figure 4-1) to the horizontal bar on the left and
right Display structures.

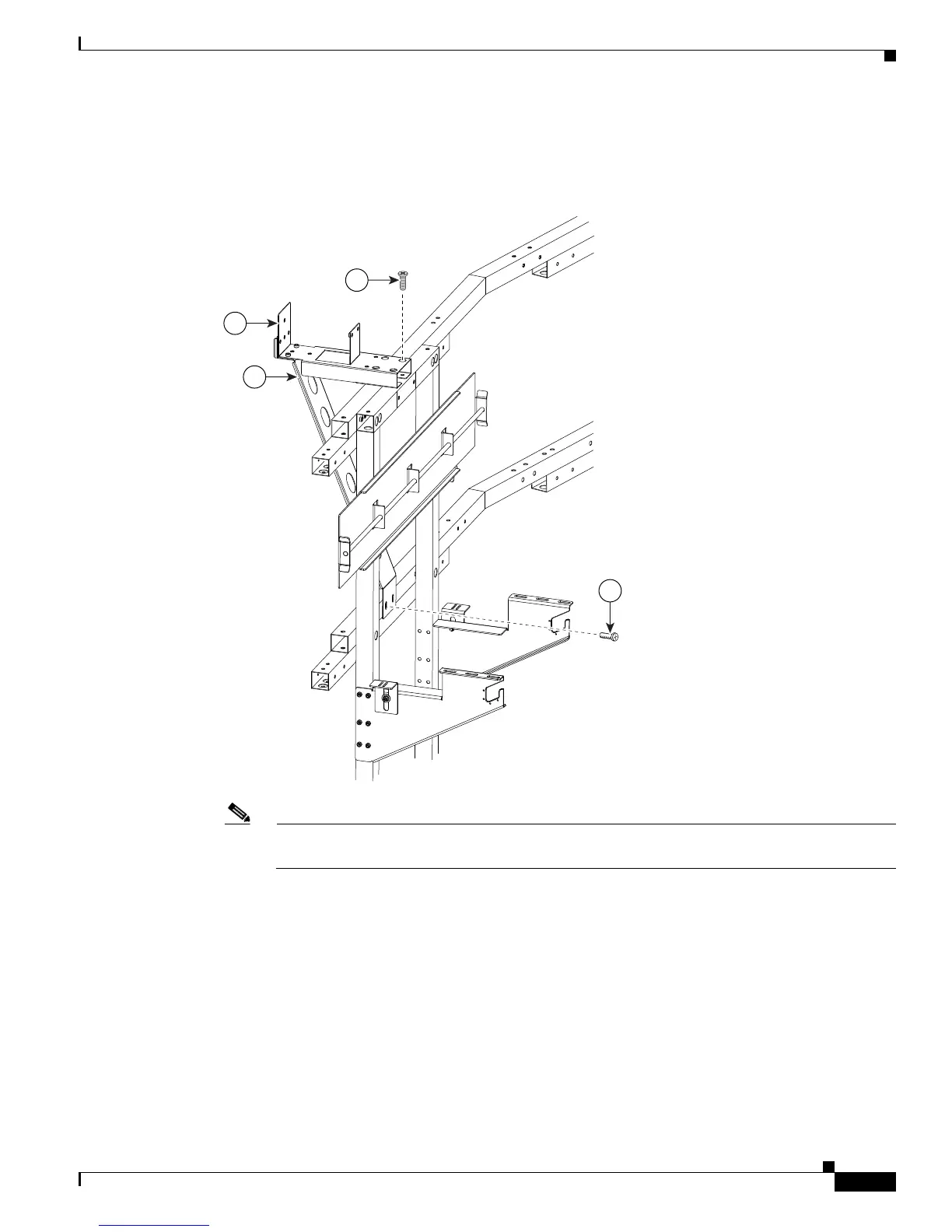

Figure 4-2 Left and Right outer Support brackets (from Figure 4-1)
Note There is no physical difference between the six Support brackets assembled in Figure 4-1. Any
two can be used as outer Support brackets.
2
1
31
31
201126
