Hardware Installation Guide for Cisco 4000 Series Integrated Services Routers
OL-32185-02
Chapter 6 Install and Upgrade Internal Modules and FRUs
Overview of the NIM-HDD Card
• On-board Quack2 for module authentication
• Power and reset
• Firmware upgrade
Note The removal of a drive during active read-write operation is not supported. Ensue that the drive is shut
down before you replace the NIM-HDD.
Figure 6-14 shows the HDD card that can be inserted into the NIM chassis shown in Figure 6-15.
Figure 6-16 shows the entire Cisco NIM-HDD.

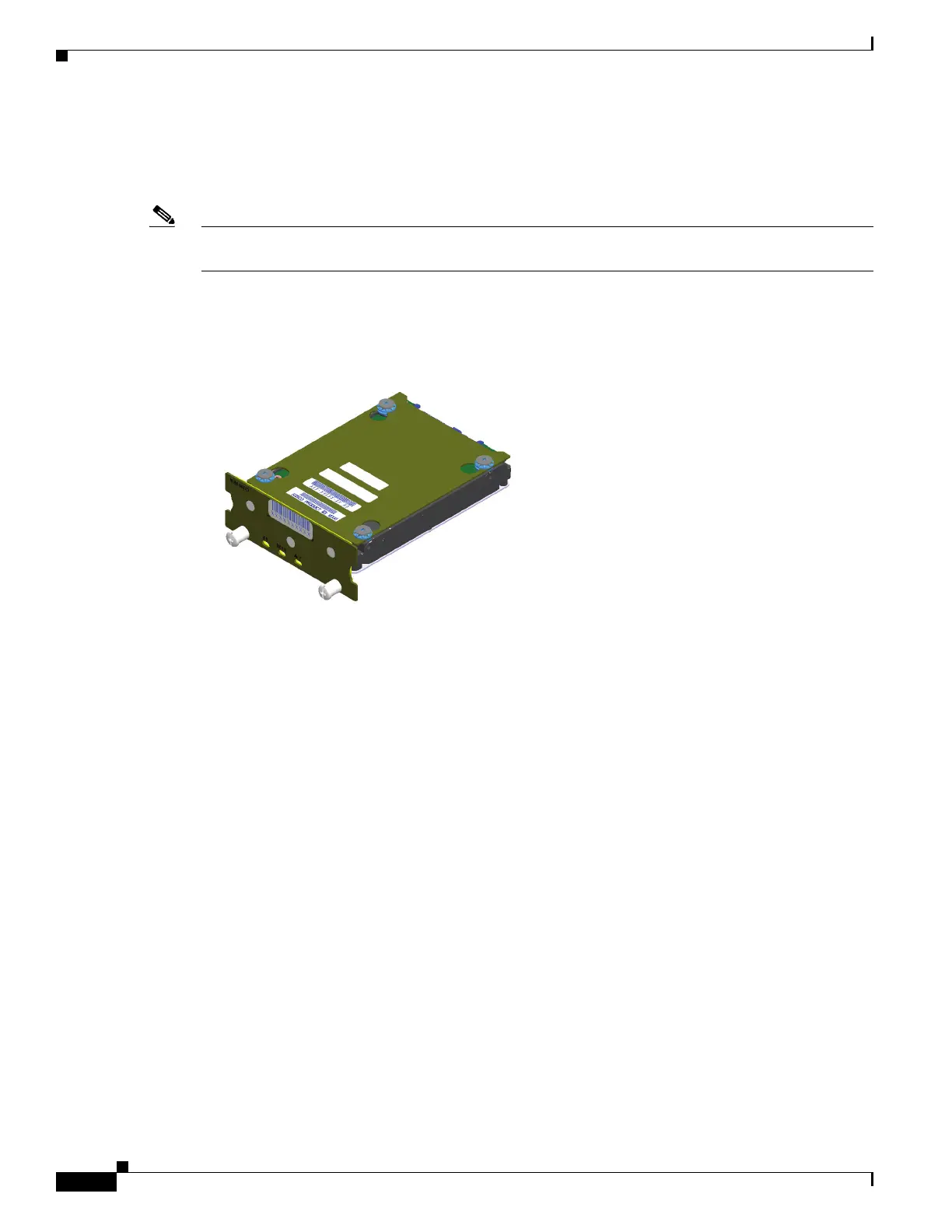

Figure 6-14 HDD Card
Figure 6-15 NIM Chassis for the HDD
390923

Cisco 4221 ISR Specifications

General

Form Factor	Rack-mountable
WAN Ports	2
LAN Ports	2
RAM	4 GB
Flash Memory	4 GB
Product Type	Router
Total Number of Ports	4
Number of Network (RJ-45) Ports	4
Number of Total Expansion Slots	3
Expansion Slot Type	NIM, ISC
Number of NIM Slots	2
Number of ISC Slots	1
Manageable	Yes
Power Supply	Internal
Redundant Power Supply	No
Authentication Method	RADIUS, TACACS+
Compliant Standards	IEEE 802.3, IEEE 802.3u, IEEE 802.3ab
Operating Temperature	32°F to 104°F (0°C to 40°C)
Height	1.75 in
Encryption Algorithm	AES, 3DES
Dimensions (W x D x H)	1.75 x 13.5 x 1.73 inches
Operating Humidity	5 to 95% (noncondensing)
