Hardware Installation Guide for Cisco 4000 Series Integrated Services Routers
OL-32185-02
Chapter 6 Install and Upgrade Internal Modules and FRUs
Install and Remove DDR DIMMs on Cisco 4400 or 4300 Series ISRs

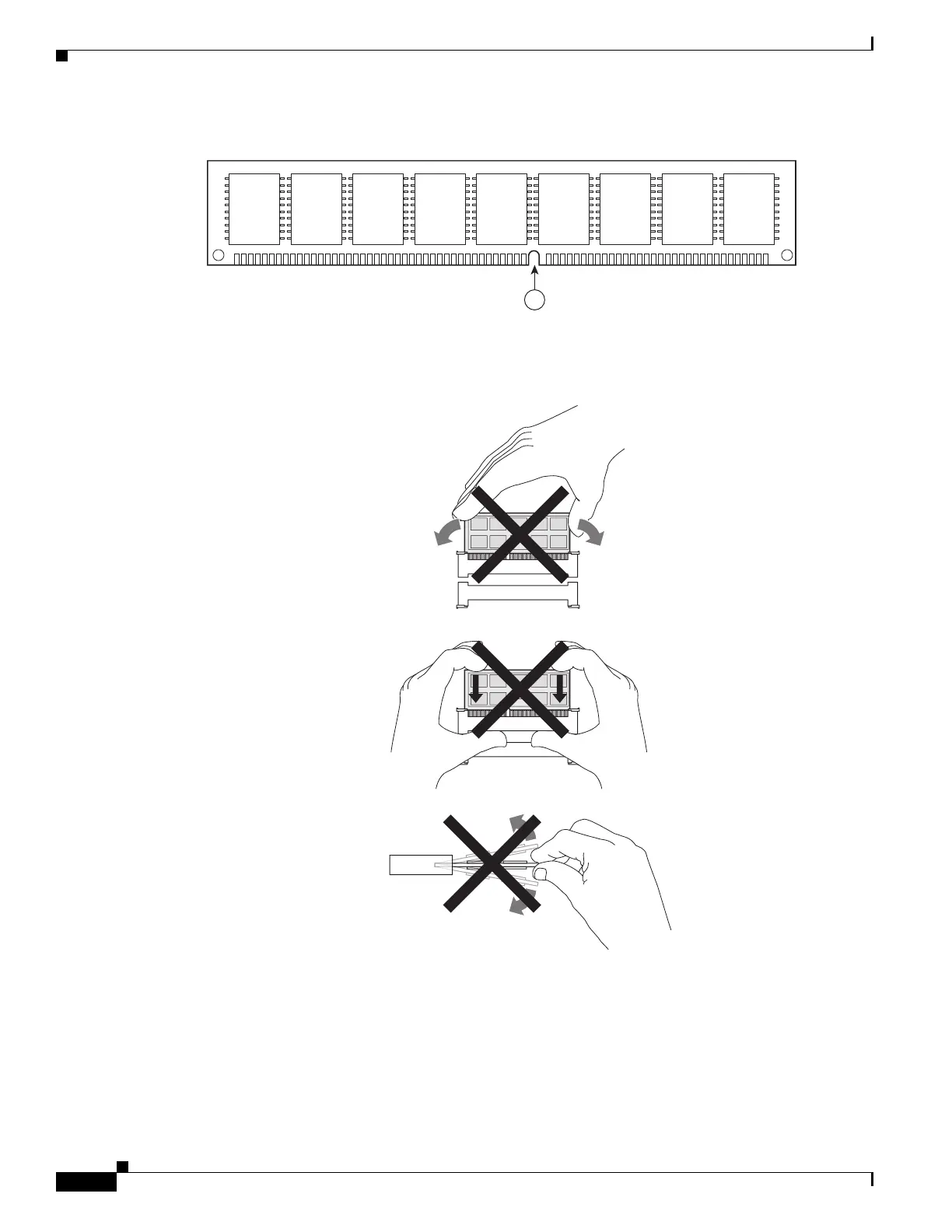

Figure 6-21 DIMM Showing Polarization Notch
Step 6
Insert the DIMM into the connector one side at a time. Figure 6-22 shows what to avoid while handling
a DIMM.
Figure 6-22 Handle the DIMMs
Step 7
Firmly press the DIMM into the connector until the latches close onto the DIMM. Ensure that both
latches rotate to the closed position against the DIMM. See Figure 6-23.
250944
1
280360

Cisco 4221 ISR Specifications

General

Form Factor	Rack-mountable
WAN Ports	2
LAN Ports	2
RAM	4 GB
Flash Memory	4 GB
Product Type	Router
Total Number of Ports	4
Number of Network (RJ-45) Ports	4
Number of Total Expansion Slots	3
Expansion Slot Type	NIM, ISC
Number of NIM Slots	2
Number of ISC Slots	1
Manageable	Yes
Power Supply	Internal
Redundant Power Supply	No
Authentication Method	RADIUS, TACACS+
Compliant Standards	IEEE 802.3, IEEE 802.3u, IEEE 802.3ab
Operating Temperature	32°F to 104°F (0°C to 40°C)
Height	1.75 in
Encryption Algorithm	AES, 3DES
Dimensions (W x D x H)	1.75 x 13.5 x 1.73 inches
Operating Humidity	5 to 95% (noncondensing)
