Cisco 4221 ISR User Manual

6-67
Hardware Installation Guide for Cisco 4000 Series Integrated Services Routers
OL-32185-02
Chapter 6 Install and Upgrade Internal Modules and FRUs
Remove and Install the Flash Memory Card

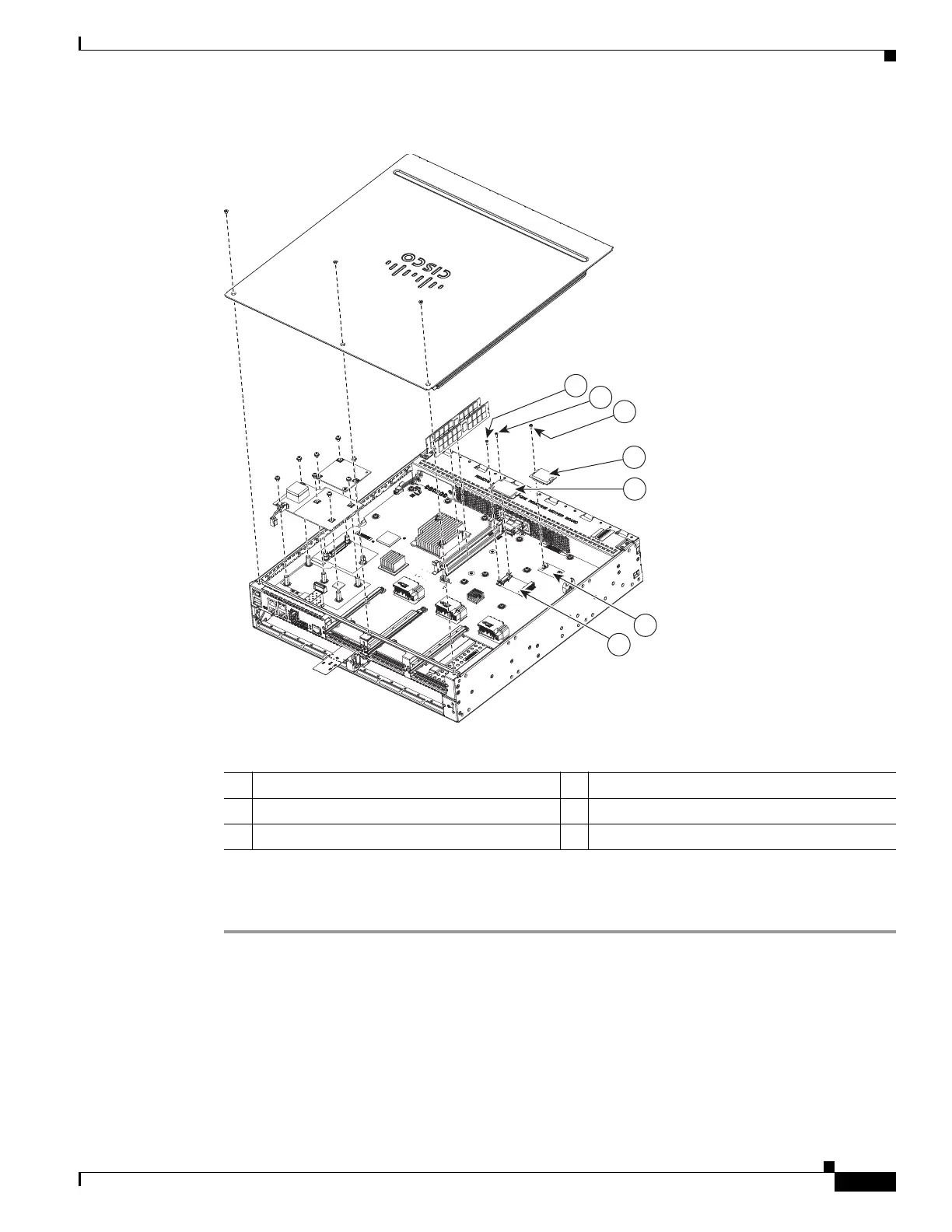

Figure 6-48 Memory Cards
Step 4
Tighten the supplied screw (see Figure 6-48) to secure the flash memory card in place.
Step 5 Replace the chassis cover. See “Remove and Replace the Chassis Cover” section on page 6-4.
1 Supplied screw 2 Supplied screw
3 Flash memory card 4 SSD mSATA storage device
5 Flash memory card connector 6 SSD mSATA connector
391828
3
4
5
6
1
1
2

Cisco 4221 ISR Specifications

General

Form Factor	Rack-mountable
WAN Ports	2
LAN Ports	2
RAM	4 GB
Flash Memory	4 GB
Product Type	Router
Total Number of Ports	4
Number of Network (RJ-45) Ports	4
Number of Total Expansion Slots	3
Expansion Slot Type	NIM, ISC
Number of NIM Slots	2
Number of ISC Slots	1
Manageable	Yes
Power Supply	Internal
Redundant Power Supply	No
Authentication Method	RADIUS, TACACS+
Compliant Standards	IEEE 802.3, IEEE 802.3u, IEEE 802.3ab
Operating Temperature	32°F to 104°F (0°C to 40°C)
Height	1.75 in
Encryption Algorithm	AES, 3DES
Dimensions (W x D x H)	1.75 x 13.5 x 1.73 inches
Operating Humidity	5 to 95% (noncondensing)
