Hardware Installation Guide for Cisco 4000 Series Integrated Services Routers

OL-32185-02

Chapter 6 Install and Upgrade Internal Modules and FRUs

Install and Remove DDR DIMMs on Cisco 4400 or 4300 Series ISRs

DIMMs have a polarization notch on the mating edge to prevent incorrect insertion. Figure 6-19 shows

the polarization notch on a DIMM.

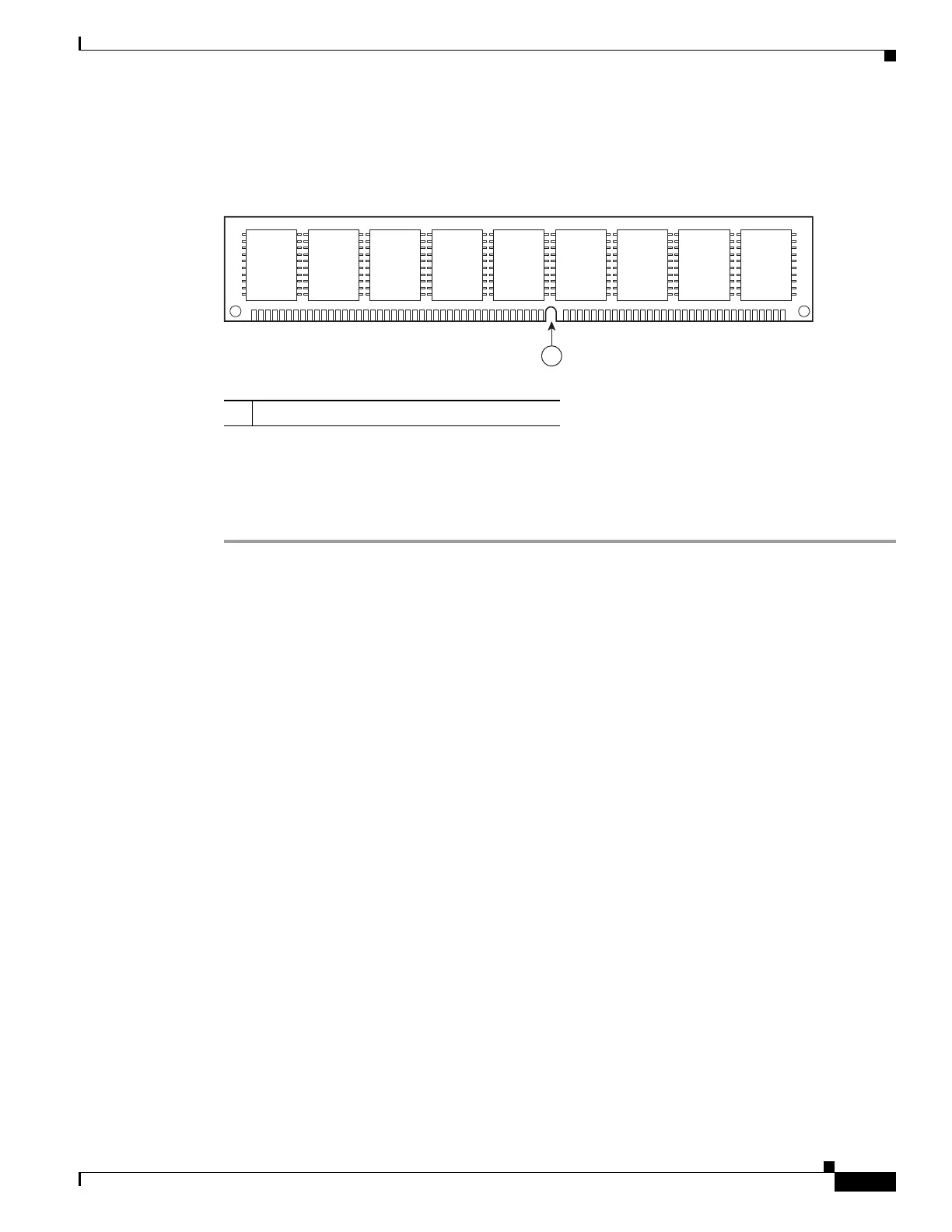

Figure 6-19 DIMM Showing Polarization Notch

Remove DIMM

To remove a DIMM:

Step 1 Read the “Safety Warnings” section on page 6-2 section and disconnect the power supply before you

replace any module.

Step 2 Remove the chassis cover. See the “Remove and Replace the Chassis Cover” section on page 6-4.

Step 3 Locate the DIMM module. See the “Locate Internal and External Slots for Modules on Cisco 4451 ISR”

section on page 6-7 to find the DIMM sockets on the router.

1 Polarization notch

250944
