6-40
Hardware Installation Guide for Cisco 4000 Series Integrated Services Routers
OL-32185-02
Chapter 6 Install and Upgrade Internal Modules and FRUs
Remove and Replace Cisco 4000 Series ISRs Power Supplies

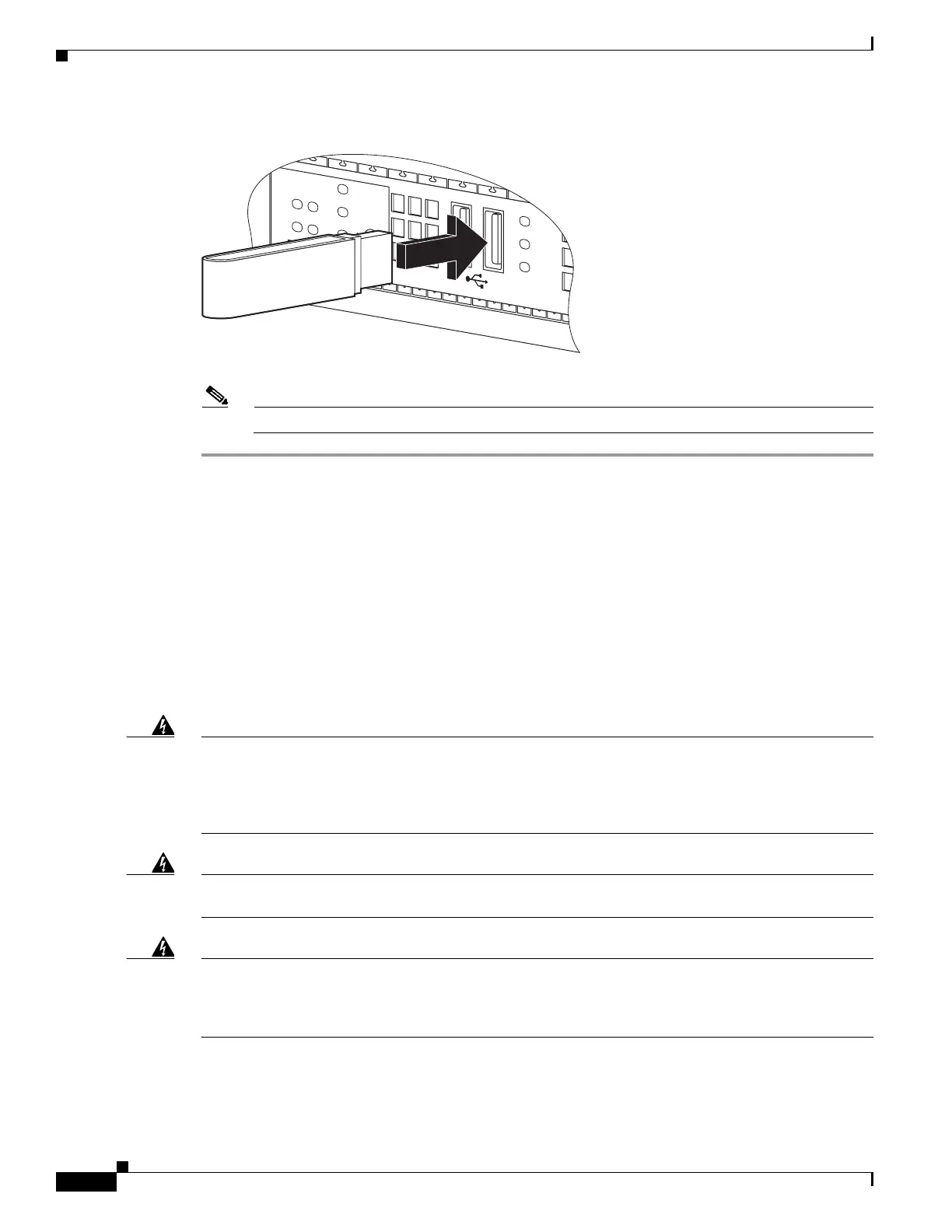

Figure 6-28 Router Flash Token Memory Stick
Note You can insert or remove the memory stick whether the router is powered on or off.
Remove and Replace Cisco 4000 Series ISRs Power Supplies
Cisco 4400 and 4300 Series ISRs have replaceable power supply modules. These modular power
supplies can be removed or installed using only a screwdriver.
• AC Power Supplies, page 6-41
• Overview of DC Power Supply, page 6-44
• Replace the Power Supply Module from the Cisco 4331 Router, page 6-49
• PoE Converter Power Supply Unit, page 6-54
Warning
Blank faceplates and cover panels serve three important functions: they prevent exposure to
hazardous voltages and currents inside the chassis; they contain electromagnetic interference
(EMI) that might disrupt other equipment; and they direct the flow of cooling air through the
chassis. Do not operate the system unless all cards, faceplates, front covers, and rear covers are
in place.
Statement 1029
Warning
This unit might have more than one power supply connection. All connections must be removed
to de-energize the unit.
Statement 1028
Warning
Care should be taken while removing the power supplies and power inverters (especially in boost
mode of operation). If the total power consumption is higher than can be supported by one power
supply alone and in this condition a power supply is removed, the hardware can be damaged. This
may then result in the system being unstable or unusable.
01
DISK
BF
USB
HD
MIN
ACO
MAJ
STBY
ACTV
STAT
ASR1000-RP1
PWR
CRIT
