Hardware Installation Guide for Cisco 4000 Series Integrated Services Routers

OL-32185-02

Chapter 6 Install and Upgrade Internal Modules and FRUs

Install and Remove PVDM4 on Cisco 4400 or 4300 Series ISRs

Remove the PVDM4 from the Motherboard of Cisco 4400 ISRs

To remove the PVDM4:

Step 1 Turn off electrical power to the router. Leave the power cable plugged in to channel ESD voltages to

ground.

Step 2 Remove the router cover.

Step 3 Locate the PVDM4 on the motherboard. See Figure 6-25.

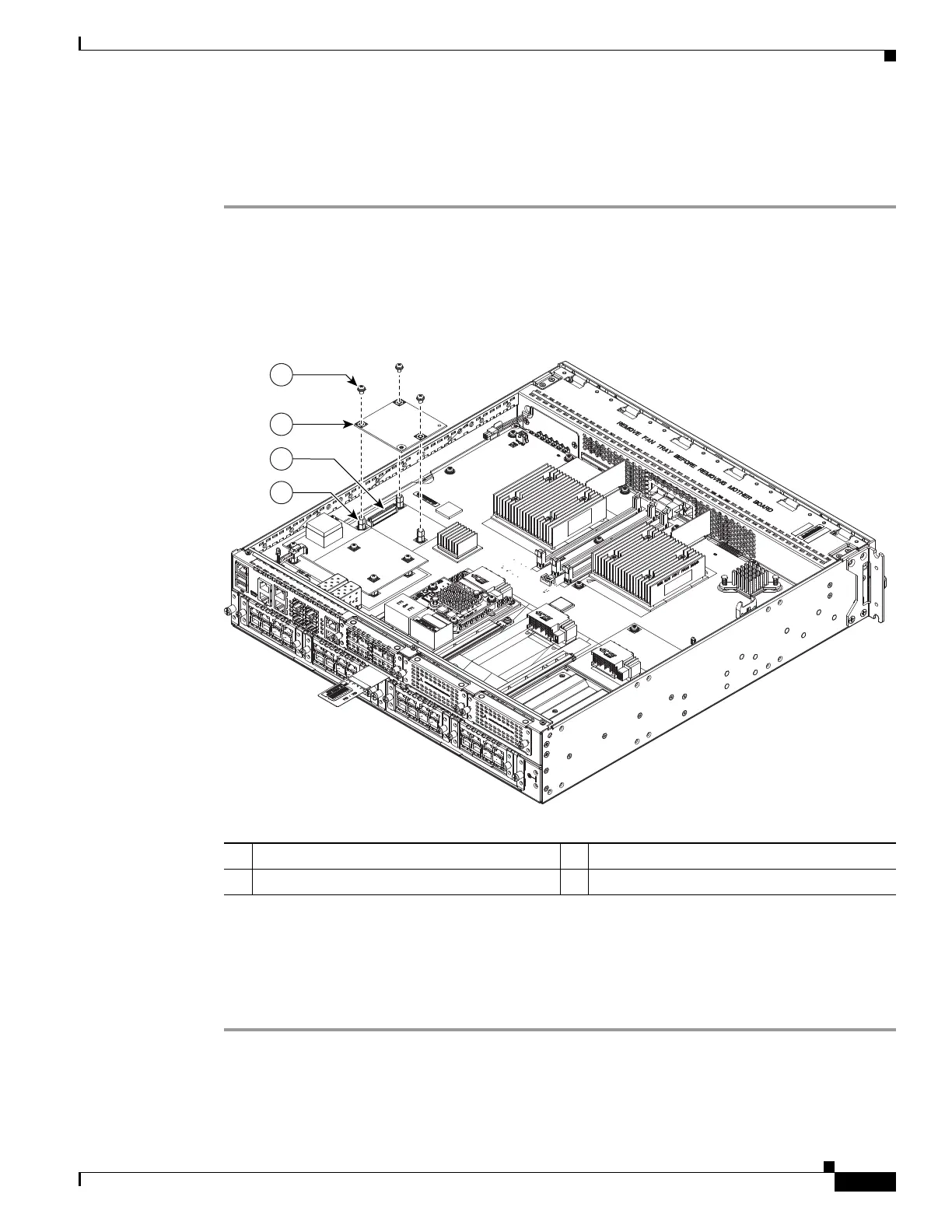

Figure 6-25 Location of PVDM4 on Cisco 4451-X ISR

Step 4

Loosen and remove the three screws on the PVDM4.

Step 5 Lift the PVDM4 up from the motherboard.

Step 6 Place the PVDM4 in an anti-static bag.

Step 7 Replace the cover.

1 Screws 2 PVDM4

3 Connector 4 Standoffs

345704
