Hardware Installation Guide for the Cisco 4000 Series Integrated Services Router
OL-32185-02
Chapter 1 Overview of Cisco 4000 Series ISRs
Chassis Views
Cisco 4321 ISR Chassis
This section contains the following views of Cisco 4321 ISR router:
• Back Panel Ports on Cisco 4321 ISR
• LEDs on Cisco 4321 ISR (Figure 1-17)
• LEDs on Cisco 4321 ISR (Figure 1-18)

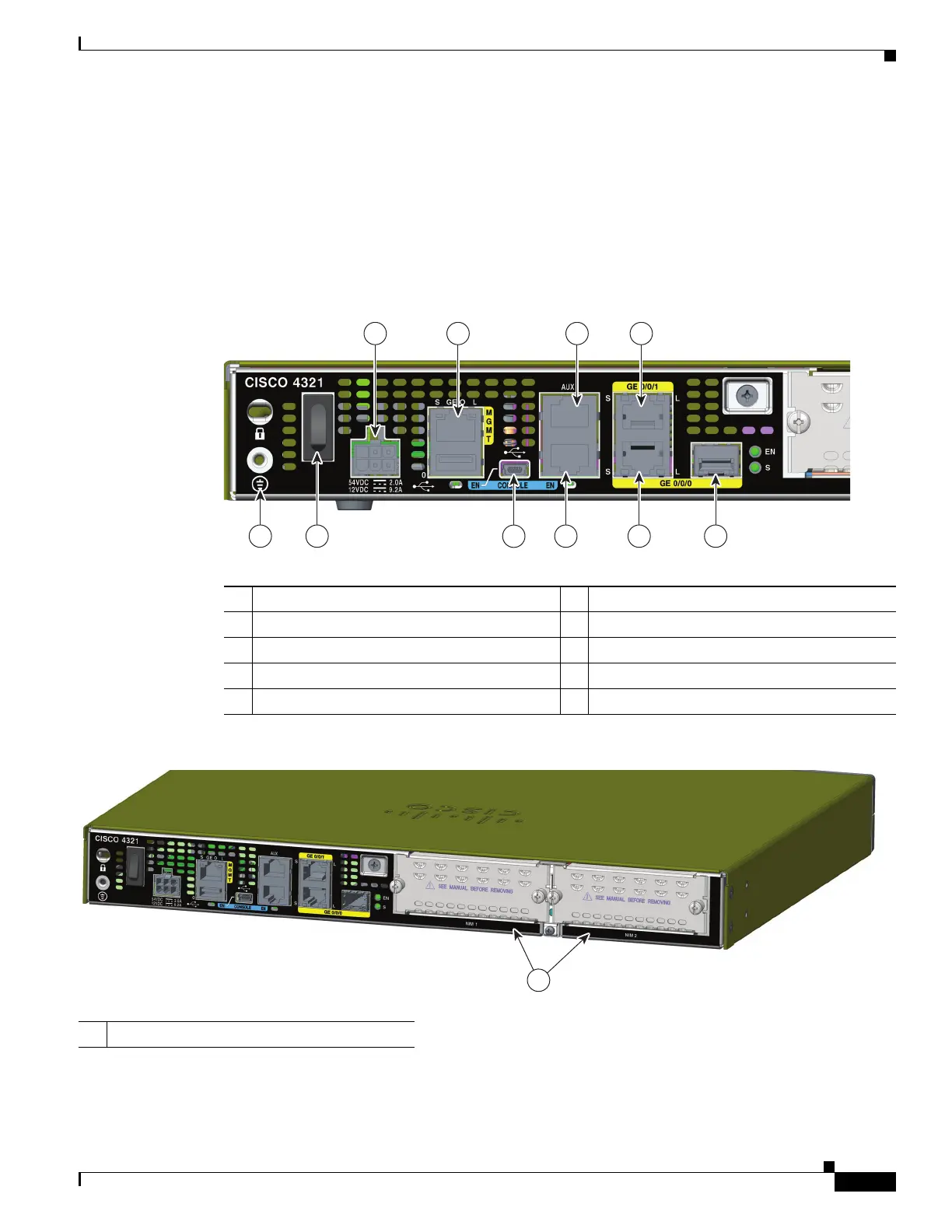

Figure 1-17 Back Panel Ports on Cisco 4321 ISR
Figure 1-18 Back Panel (I/O Side) View of Cisco 4321 ISR
1 Grounding 2 Power switch
3 Power input connector 4 GE “MGMT” port (with USB port below)
5 USB Type B mini port 6 Console port
7 Auxiliary port 8 GE 0/0/1 (copper cable) port
9 GE 0/0/0 RJ-45 (copper cable) port 10 GE 0/0/0 SFP (fiber-optic) port
1 NIM slots
391468
3 4 7 9
1 2
5
10
86
391469
1

Cisco 4351 ISR Specifications

General

Form Factor	Rack-mountable
Integrated Services	Yes
LAN Ports	4
Redundant power supply	Optional
Rack height	1 RU
Product Series	4000 Series
USB Ports	2
Console Port	1
Auxiliary Port	1
Operating System	Cisco IOS XE
Maximum Throughput	2 Gbps
Memory	4 GB
Flash Memory	4 GB (expandable to 16 GB)
Total concurrent sessions	1, 000, 000
Model	4351
Processor	Multi-core
Network Interfaces	GE, SFP
