Hardware Installation Guide for the Cisco 4000 Series Integrated Services Router
OL-32185-02
Chapter 1 Overview of Cisco 4000 Series ISRs
Chassis Views

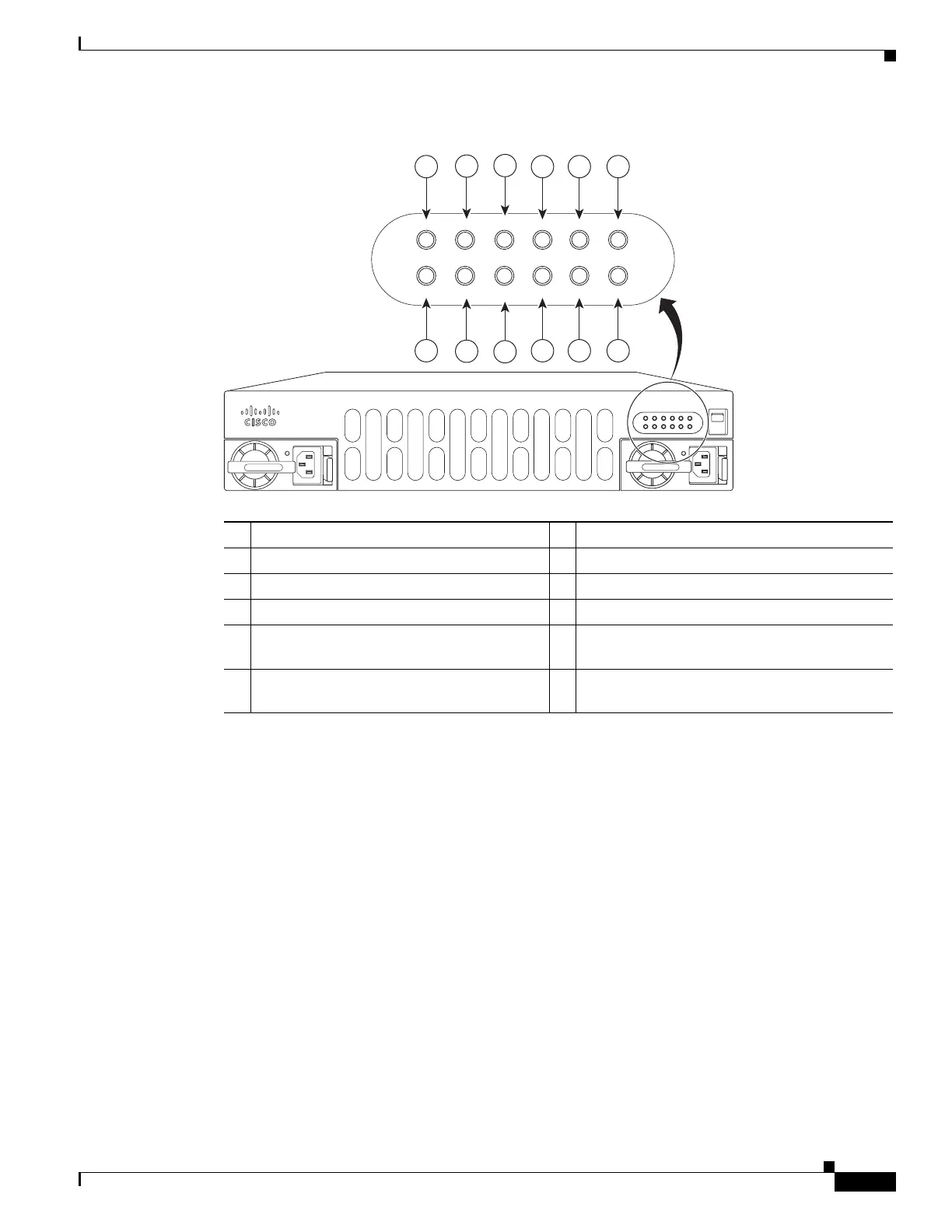

Figure 1-3 Bezel Side LEDS of the Cisco 4451 ISR Model
1 PSU0: Power supply unit 1 2 PSU1: Power supply unit 2
3 GE POE: Internal PoE daughter card status 4 FLASH: Compact flash status
5 TEMP: Temperature status 6 PWR: Power
7 STAT: System status 8 FAN: Fan status
9 ISC: Integrated Services Card status 1
0
POE BOOST: Power over Ethernet boost mode
11 POE 1: Power over Ethernet 1status 1
2
POE 0: Power over Ethernet 0 status
PSU0 PSU1 FLASH TEMP PWR
ISC
POE1
POE0
FAN
STAT
GE
POE
BOOST
285696
Cisco 4400 Series
PSU1 PSU2
POE1 POE2
FLASH TEMP PWR
VM FAN STAT
INT
POE
BOOST
PSU0 PSU1 FLASH TEMP PWR
ISC
POE1
POE0
FAN
STAT
GE
POE
BOOST
1
2
3
4 5 6
12
11
10
9 8
7

Cisco 4351 ISR Specifications

General

Form Factor	Rack-mountable
Integrated Services	Yes
LAN Ports	4
Redundant power supply	Optional
Rack height	1 RU
Product Series	4000 Series
USB Ports	2
Console Port	1
Auxiliary Port	1
Operating System	Cisco IOS XE
Maximum Throughput	2 Gbps
Memory	4 GB
Flash Memory	4 GB (expandable to 16 GB)
Total concurrent sessions	1, 000, 000
Model	4351
Processor	Multi-core
Network Interfaces	GE, SFP
