Cisco 5520 and 8540 Wireless Controller Troubleshooting Guide
Overview of CIMC
Overview of CIMC
The Cisco Integrated Management Controller (CIMC) is the management service for the C-Series
servers. CIMC runs within the server.

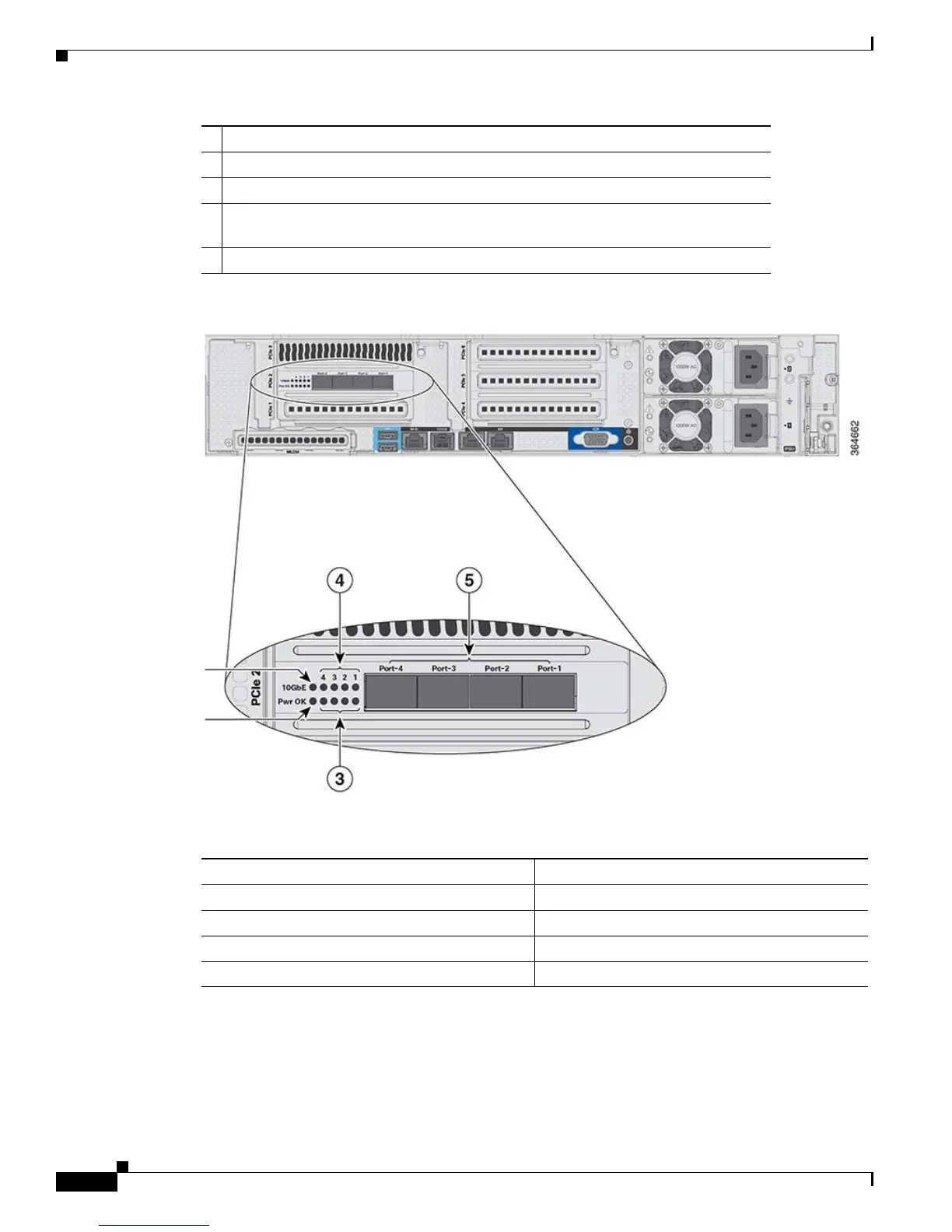

3 SerialCOM Connector—Standard RS-232 Serial COM port using RJ-45 connector
4 Ethernet Service Port (SP)—Management 10/100/1000 Base-T
5 Redundancy Port (RP)
6 VGA Connector—Rear panel has a standard VGA port using a female D-Sub-15
Connector
7 ID Switch and LED
1 10 G
2Pwr OK
3 Port-n Link Status
4 Port-n Link Activity
5 Two 1/10 G SFP/SFP+ Ports

Cisco 5520 Specifications

General

Maximum Access Points	1500
Maximum Clients	20000
Form Factor	1RU
Product Series	Cisco 5500 Series
Memory	32 GB
Flash Memory	8 GB
Operating Temperature	32°F to 104°F (0°C to 40°C)
Storage Temperature	-4°F to 149°F (-20°C to 65°C)
Model	Cisco 5520
Ports	8 x 1GE
Redundancy	N+1
Management	CLI
Wireless Standard	802.11ac
Humidity	10% to 95% non-condensing
