5-2
Cisco Wide Area Virtualization Engine 7541, 7571, and 8541 Hardware Installation Guide
Chapter 5 WAVE Interface Modules
Interface Module Descriptions

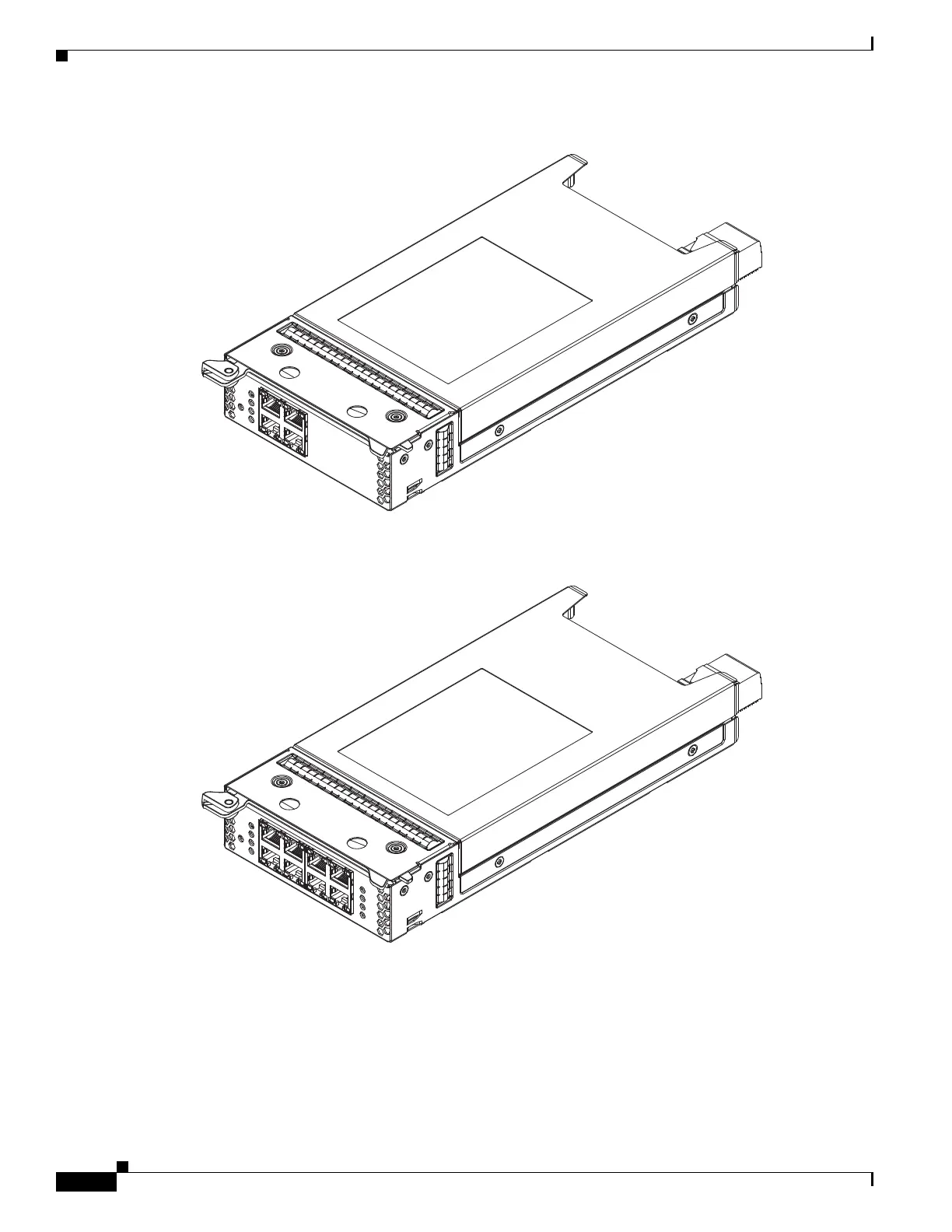

Figure 5-1 Gigabit Ethernet Interface Module—4-Port Copper
Figure 5-2 Gigabit Ethernet Interface Module—8-Port Copper
Gigabit Ethernet Interface Module—Fiber Optic
The fiber optic Gigabit Ethernet Interface Module is available in 4 ports. This model supports bypass.
(See Figure 5-3.)
246685
246687
