Cisco 7942G Administration Guide

3-8
Cisco Unified IP Phone 7962G and 7942G Administration Guide for Cisco Unified Communications Manager 6.1(3)
OL-17679-01
Chapter 3 Setting Up the Cisco Unified IP Phone
Installing the Cisco Unified IP Phone

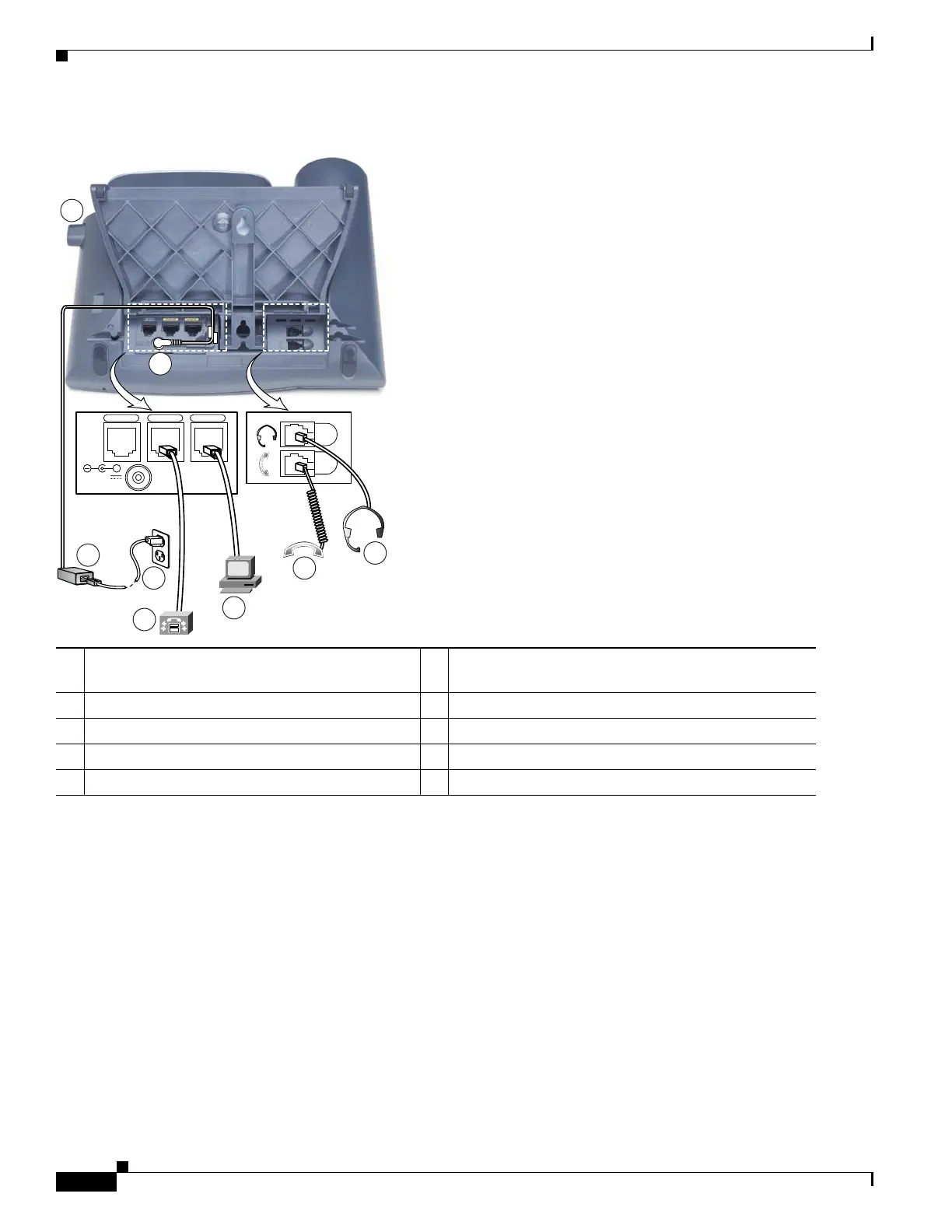

Figure 3-1 Cisco Unified IP Phone 7962G and 7942G Cable Connections
Related Topics
• Adjusting the Placement of the Cisco Unified IP Phone, page 3-10
• Verifying the Phone Startup Process, page 3-12
• Configuring Startup Network Settings, page 3-13
• Configuring Security on the Cisco Unified IP Phone, page 3-14
1
DC adaptor port (DC48V) for phones not provided
with inline power
6
Handset port
2
AC-to-DC power supply
7
Headset port
3
AC power cord
8
Footstand adjustment button
4
Network port (10/100 SW)
9
Auxiliary port (AUX)
5
Access port (10/100 PC)
10
AUX
DC48V
10/100 SW 10/100 PC
+
113656
2
8
3
4
5
6
7
1

Cisco 7942G Specifications

General

Lines	2
Audio Codec Support	G.711, G.729a, G.729ab, G.722
Network Protocols	SIP, SCCP
Ethernet Ports	2 x 10/100
Power Options	PoE 802.3af, Optional Power Cube
Speakerphone	Yes
Headset Port	Yes
Weight	3.5 lbs
